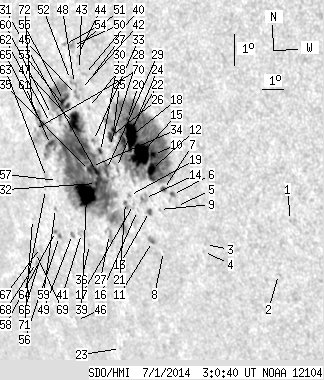

SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.43 | 934.71 | 139.70 | 765.74 | -10.71 | 267.81 | -51.26 | 105.77 | 0.7984 | 343.3 | 236.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.70 | -12.41 | 276.13 | -42.94 | 110.62 | 0.7132 | 338.0 | 360.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -14.15 | 275.22 | -43.85 | 112.56 | 0.7298 | 651.0 | 512.8 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -13.31 | 272.16 | -46.92 | 110.31 | 0.7602 | 617.0 | 540.3 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -13.53 | 272.00 | -47.07 | 110.55 | 0.7625 | 546.0 | 472.3 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -12.15 | 271.10 | -47.98 | 108.49 | 0.7680 | 643.0 | 549.5 | |
| 1.09 | 3.63 | 0.84 | 2.80 | -11.77 | 271.00 | -48.07 | 107.99 | 0.7680 | 805.4 | 636.5 | |
| 1.73 | 3.09 | 1.34 | 2.40 | -11.63 | 270.61 | -48.46 | 107.69 | 0.7718 | 748.1 | 614.5 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -13.61 | 270.10 | -48.97 | 110.00 | 0.7825 | -481.0 | -363.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -12.27 | 270.27 | -48.81 | 108.39 | 0.7771 | 601.0 | 516.0 | |
| 2.82 | 346.26 | 2.18 | 271.47 | -10.54 | 270.39 | -48.69 | 106.25 | 0.7714 | 1299.6 | 462.0 | |
| 0.55 | 4.27 | 0.43 | 3.41 | -13.31 | 269.65 | -49.42 | 109.49 | 0.7862 | -577.5 | -371.1 | |
| 8.81 | -10.00 | 6.88 | -10.00 | -11.02 | 270.19 | -48.89 | 106.79 | 0.7747 | 868.6 | 999999 | |
| 1.64 | 3.09 | 1.30 | 2.45 | -12.35 | 269.77 | -49.31 | 108.34 | 0.7826 | 643.2 | 486.5 | |
| 0.00 | 6.81 | 0.00 | 5.40 | -11.95 | 269.63 | -49.45 | 107.80 | 0.7829 | 633.0 | 546.1 | |
| 29.61 | -10.00 | 23.26 | -10.00 | -10.56 | 269.76 | -49.31 | 106.10 | 0.7781 | 1023.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -12.34 | 269.19 | -49.89 | 108.16 | 0.7885 | 417.0 | 343.6 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -12.16 | 269.04 | -50.03 | 107.89 | 0.7895 | 429.0 | 357.6 | |
| 22.62 | -10.00 | 17.83 | -10.00 | -9.98 | 269.46 | -49.62 | 105.29 | 0.7800 | 984.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.32 | -11.88 | 268.92 | -50.16 | 107.51 | 0.7901 | 569.0 | 436.6 | |
| 2.82 | -10.00 | 2.22 | -10.00 | -9.49 | 269.37 | -49.71 | 104.64 | 0.7798 | 837.5 | 999999 | |
| 0.64 | 4.36 | 0.52 | 3.53 | -12.11 | 268.66 | -50.41 | 107.72 | 0.7932 | 418.3 | 400.0 | |
| 5.72 | -10.00 | 4.56 | -10.00 | -10.19 | 269.03 | -50.05 | 105.43 | 0.7849 | 377.9 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -16.83 | 266.86 | -52.21 | 112.84 | 0.8229 | 324.0 | 371.0 | |
| 0.00 | 5.90 | 0.00 | 4.77 | -11.02 | 268.49 | -50.58 | 106.33 | 0.7923 | 586.0 | 394.2 | |
| 2.63 | -10.00 | 2.11 | -10.00 | -9.86 | 268.61 | -50.46 | 104.92 | 0.7885 | 484.7 | 999999 | |
| 3.72 | -10.00 | 3.00 | -10.00 | -10.05 | 268.42 | -50.65 | 105.11 | 0.7909 | 396.5 | 999999 | |
| 0.00 | 7.54 | 0.00 | 6.29 | -13.17 | 267.57 | -51.51 | 108.69 | 0.8067 | -550.0 | -465.4 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -10.37 | 268.30 | -50.77 | 105.47 | 0.7929 | -368.0 | -291.8 | |
| 5.54 | 483.33 | 4.53 | 407.10 | -11.10 | 267.98 | -51.09 | 106.29 | 0.7978 | 223.3 | 126.9 | |
| 1.82 | -29.00 | 1.49 | -29.00 | -10.55 | 267.82 | -51.26 | 105.56 | 0.7982 | 659.1 | 999999 | |
| 3.00 | -29.00 | 2.48 | -29.00 | -11.19 | 267.46 | -51.62 | 106.26 | 0.8032 | -343.5 | 999999 | |
| 1.91 | -29.00 | 1.58 | -29.00 | -11.57 | 267.36 | -51.71 | 106.69 | 0.8050 | -601.0 | 999999 | |
| 0.45 | 2.09 | 0.37 | 1.72 | -10.21 | 267.54 | -51.53 | 105.09 | 0.8002 | 739.8 | 631.4 | |
| 0.27 | -29.00 | 0.23 | -29.00 | -11.04 | 267.24 | -51.83 | 106.02 | 0.8050 | -160.3 | 999999 | |
| 2.45 | -29.00 | 2.05 | -29.00 | -11.17 | 267.11 | -51.97 | 106.15 | 0.8066 | 383.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -13.53 | 266.43 | -52.64 | 108.80 | 0.8186 | -536.0 | -488.1 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -8.31 | 267.74 | -51.33 | 102.78 | 0.7944 | 605.0 | 628.4 | |
| 0.00 | 1.64 | 0.00 | 1.34 | -9.18 | 267.52 | -51.56 | 103.82 | 0.7984 | 671.0 | 550.4 | |
| 32.34 | -29.00 | 27.31 | -29.00 | -11.94 | 266.75 | -52.32 | 106.98 | 0.8118 | -896.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 2.00 | -8.16 | 267.52 | -51.55 | 102.55 | 0.7964 | 635.0 | 601.6 | |
| 0.00 | 3.91 | 0.00 | 3.37 | -13.19 | 266.12 | -52.95 | 108.32 | 0.8207 | -583.0 | -606.0 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -8.64 | 267.23 | -51.85 | 103.07 | 0.8003 | 711.0 | 561.3 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -8.01 | 267.30 | -51.78 | 102.32 | 0.7985 | 582.0 | 528.6 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -7.58 | 267.27 | -51.80 | 101.78 | 0.7980 | 589.0 | 437.0 | |
| 0.00 | 4.36 | 0.00 | 3.61 | -8.80 | 266.99 | -52.08 | 103.22 | 0.8030 | 551.0 | 494.9 | |
| 0.00 | 2.00 | 0.00 | 1.81 | -16.02 | 264.84 | -54.23 | 111.27 | 0.8390 | -472.0 | -435.8 | |
| 19.26 | -29.00 | 16.09 | -29.00 | -9.72 | 266.70 | -52.38 | 104.28 | 0.8077 | 884.6 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.78 | -8.46 | 266.96 | -52.11 | 102.80 | 0.8027 | 618.0 | 541.4 | |
| 0.82 | 2.63 | 0.71 | 2.30 | -13.24 | 265.63 | -53.44 | 108.25 | 0.8255 | -542.0 | -432.0 | |
| 0.00 | 3.91 | 0.00 | 3.21 | -7.28 | 267.07 | -52.00 | 101.36 | 0.7995 | 447.0 | 310.4 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -7.47 | 267.04 | -52.03 | 101.59 | 0.8001 | 551.0 | 453.1 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -8.34 | 266.78 | -52.29 | 102.62 | 0.8043 | 509.0 | 421.5 | |
| 3.54 | -29.00 | 2.98 | -29.00 | -9.23 | 266.34 | -52.73 | 103.61 | 0.8103 | 503.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.35 | -7.26 | 266.67 | -52.40 | 101.27 | 0.8036 | -217.0 | -141.0 | |
| 7.09 | -29.00 | 5.96 | -29.00 | -9.02 | 266.29 | -52.79 | 103.33 | 0.8105 | 623.6 | 999999 | |
| 0.82 | 3.09 | 0.73 | 2.75 | -13.34 | 264.91 | -54.17 | 108.17 | 0.8324 | -671.2 | -527.3 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -11.55 | 265.35 | -53.73 | 106.17 | 0.8245 | -240.0 | -254.9 | |
| 0.45 | -56.00 | 0.41 | -56.00 | -13.19 | 264.74 | -54.33 | 107.95 | 0.8336 | -574.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -12.45 | 264.98 | -54.10 | 107.14 | 0.8299 | -445.0 | -465.6 | |
| 0.00 | 1.91 | 0.00 | 1.64 | -9.48 | 265.56 | -53.51 | 103.74 | 0.8185 | 316.0 | 281.3 | |
| 4.54 | -29.00 | 3.94 | -29.00 | -10.43 | 265.28 | -53.79 | 104.81 | 0.8230 | 416.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -9.73 | 265.45 | -53.62 | 104.02 | 0.8200 | 542.0 | 395.7 | |
| 0.00 | 3.36 | 0.00 | 2.97 | -11.48 | 264.78 | -54.29 | 105.95 | 0.8297 | -335.0 | -195.7 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -11.87 | 264.62 | -54.46 | 106.37 | 0.8320 | -178.0 | -173.3 | |
| 2.73 | -29.00 | 2.37 | -29.00 | -9.82 | 265.01 | -54.06 | 104.02 | 0.8245 | 697.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 2.09 | -14.06 | 263.61 | -55.46 | 108.68 | 0.8456 | -458.0 | -435.9 | |
| 0.00 | 2.00 | 0.00 | 1.83 | -13.73 | 263.73 | -55.35 | 108.33 | 0.8439 | -460.0 | -349.6 | |
| 0.00 | 1.18 | 0.00 | 1.10 | -14.23 | 263.32 | -55.75 | 108.80 | 0.8485 | -441.0 | -421.9 | |
| 0.00 | 2.00 | 0.00 | 1.85 | -13.91 | 263.39 | -55.69 | 108.45 | 0.8473 | -340.0 | -332.6 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -9.99 | 264.54 | -54.53 | 104.13 | 0.8292 | 396.0 | 327.7 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -12.85 | 263.59 | -55.48 | 107.28 | 0.8433 | -312.0 | -287.7 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -9.40 | 264.58 | -54.50 | 103.43 | 0.8279 | 165.0 | 194.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
