SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.87 | 89.10 | 35.71 | 88.09 | 14.12 | 259.43 | -59.64 | 75.31 | 0.8666 | -251.8 | -103.6 | |
|
previous
or next observation for the same group /

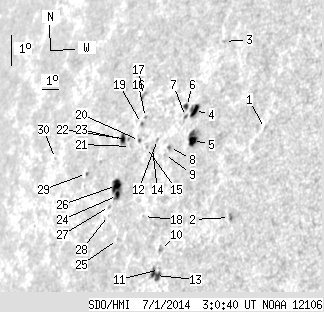

back to the solar disc SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.24 | 15.58 | 265.25 | -53.82 | 72.86 | 0.8158 | -502.0 | -401.1 | |
| 0.00 | 1.82 | 0.00 | 1.57 | 12.76 | 264.35 | -54.73 | 76.41 | 0.8213 | -588.0 | -488.6 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 18.20 | 261.82 | -57.25 | 70.29 | 0.8508 | -531.0 | -458.6 | |
| 6.18 | 9.17 | 5.85 | 8.69 | 15.98 | 261.10 | -57.97 | 72.98 | 0.8544 | -592.4 | -370.2 | |
| 5.36 | 14.44 | 5.02 | 13.53 | 15.05 | 261.39 | -57.68 | 74.03 | 0.8509 | -667.2 | -474.7 | |
| 1.54 | 2.82 | 1.49 | 2.71 | 16.09 | 260.57 | -58.51 | 72.93 | 0.8591 | -305.6 | -150.4 | |
| 0.45 | 1.64 | 0.44 | 1.57 | 15.78 | 260.65 | -58.42 | 73.28 | 0.8581 | -245.8 | -161.5 | |
| 0.36 | 1.54 | 0.35 | 1.50 | 14.78 | 260.12 | -58.95 | 74.49 | 0.8617 | -458.5 | -387.4 | |
| 0.00 | 0.55 | 0.00 | 0.53 | 14.55 | 259.91 | -59.16 | 74.78 | 0.8633 | -319.0 | -296.0 | |
| 0.00 | 3.18 | 0.00 | 3.00 | 11.62 | 260.79 | -58.28 | 78.11 | 0.8535 | -447.0 | -286.0 | |
| 0.00 | 2.00 | 0.00 | 1.88 | 11.01 | 260.93 | -58.15 | 78.82 | 0.8519 | -492.0 | -379.0 | |
| 0.00 | 1.18 | 0.00 | 1.17 | 15.00 | 259.27 | -59.80 | 74.34 | 0.8690 | 67.0 | 114.1 | |
| 5.18 | 9.90 | 4.89 | 9.36 | 10.82 | 260.75 | -58.32 | 79.06 | 0.8534 | -409.5 | -221.2 | |
| 0.00 | 1.36 | 0.00 | 1.36 | 14.70 | 259.09 | -59.99 | 74.69 | 0.8703 | 577.0 | 576.9 | |
| 0.00 | 0.91 | 0.00 | 0.92 | 14.72 | 258.70 | -60.38 | 74.71 | 0.8736 | 604.0 | 536.6 | |
| 0.00 | 1.09 | 0.00 | 1.12 | 15.64 | 258.19 | -60.89 | 73.71 | 0.8784 | 443.0 | 451.7 | |
| 0.00 | 3.82 | 0.00 | 3.99 | 16.32 | 257.70 | -61.37 | 73.00 | 0.8828 | 530.0 | 353.3 | |
| 0.00 | 0.27 | 0.00 | 0.27 | 12.59 | 259.41 | -59.67 | 77.09 | 0.8662 | -167.0 | -196.3 | |
| 0.36 | 1.18 | 0.38 | 1.22 | 15.45 | 258.02 | -61.05 | 73.95 | 0.8796 | 597.0 | 520.9 | |
| 0.55 | 1.54 | 0.56 | 1.59 | 14.92 | 258.15 | -60.92 | 74.54 | 0.8782 | 596.7 | 529.4 | |
| 0.00 | 1.18 | 0.00 | 1.23 | 14.71 | 257.66 | -61.42 | 74.82 | 0.8820 | 471.0 | 389.4 | |
| 0.00 | 1.09 | 0.00 | 1.15 | 14.92 | 257.42 | -61.65 | 74.61 | 0.8840 | 536.0 | 490.0 | |
| 3.27 | 5.72 | 3.48 | 6.09 | 14.90 | 257.03 | -62.05 | 74.66 | 0.8871 | 482.9 | 394.4 | |
| 3.63 | 16.80 | 3.80 | 17.63 | 13.17 | 257.50 | -61.57 | 76.58 | 0.8822 | -622.8 | -291.0 | |
| 0.00 | 0.64 | 0.00 | 0.65 | 11.82 | 258.05 | -61.03 | 78.07 | 0.8771 | 416.0 | 373.9 | |
| 8.99 | -24.00 | 9.45 | -24.00 | 13.47 | 257.30 | -61.77 | 76.25 | 0.8840 | -506.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.25 | 12.81 | 257.12 | -61.95 | 77.01 | 0.8851 | -279.0 | -199.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | 12.53 | 257.17 | -61.90 | 77.33 | 0.8845 | -348.0 | -378.0 | |
| 0.00 | 1.45 | 0.00 | 1.64 | 13.75 | 255.08 | -63.99 | 76.10 | 0.9011 | -270.0 | -197.4 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 14.11 | 252.54 | -66.54 | 75.86 | 0.9191 | 334.0 | 316.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
