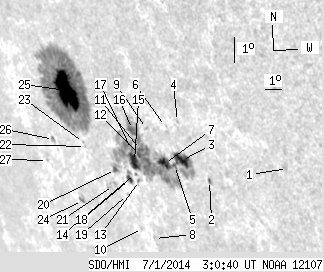

SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.81 | 559.65 | 113.89 | 621.78 | -20.06 | 258.87 | -60.20 | 114.21 | 0.8950 | 257.8 | 14.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.93 | -21.17 | 268.92 | -50.15 | 118.61 | 0.8177 | 2.0 | 8.2 | |
| 0.82 | 2.00 | 0.78 | 1.91 | -21.75 | 264.40 | -54.67 | 117.65 | 0.8575 | 292.0 | 299.2 | |
| 13.72 | 234.81 | 13.48 | 244.29 | -21.14 | 263.13 | -55.94 | 116.57 | 0.8659 | 720.2 | -224.2 | |
| 0.00 | 1.00 | 0.00 | 0.96 | -19.83 | 263.63 | -55.45 | 115.26 | 0.8587 | 466.0 | 421.4 | |
| 1.09 | -3.00 | 1.09 | -3.00 | -21.33 | 262.61 | -56.47 | 116.61 | 0.8704 | 429.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -20.03 | 262.82 | -56.25 | 115.24 | 0.8656 | 385.0 | 395.4 | |
| 8.81 | -3.00 | 8.94 | -3.00 | -21.29 | 262.03 | -57.04 | 116.39 | 0.8747 | 486.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.91 | -23.91 | 259.61 | -59.46 | 118.53 | 0.8980 | -517.0 | -418.7 | |
| 0.00 | 1.36 | 0.00 | 1.39 | -20.15 | 261.62 | -57.46 | 115.02 | 0.8753 | 244.0 | 146.1 | |
| 0.00 | 1.18 | 0.00 | 1.34 | -23.60 | 259.05 | -60.02 | 118.04 | 0.9011 | -107.0 | -155.4 | |
| 2.36 | -3.00 | 2.47 | -3.00 | -20.88 | 260.81 | -58.27 | 115.59 | 0.8830 | -769.2 | 999999 | |
| 1.54 | -3.00 | 1.63 | -3.00 | -21.05 | 260.64 | -58.44 | 115.73 | 0.8846 | -851.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 2.56 | -21.94 | 260.05 | -59.02 | 116.53 | 0.8907 | -629.0 | -540.5 | |
| 0.36 | 1.09 | 0.39 | 1.18 | -21.71 | 259.95 | -59.13 | 116.26 | 0.8910 | -461.5 | -457.4 | |
| 11.17 | -3.00 | 11.99 | -3.00 | -21.30 | 260.16 | -58.92 | 115.87 | 0.8886 | -673.8 | 999999 | |
| 8.08 | -3.00 | 8.44 | -3.00 | -20.22 | 260.71 | -58.36 | 114.84 | 0.8823 | -440.2 | 999999 | |
| 1.54 | -3.00 | 1.65 | -3.00 | -20.90 | 260.22 | -58.85 | 115.45 | 0.8873 | -607.4 | 999999 | |
| 3.09 | 6.45 | 3.40 | 7.10 | -21.94 | 259.41 | -59.67 | 116.35 | 0.8953 | -341.1 | -284.2 | |
| 0.00 | 1.27 | 0.00 | 1.43 | -22.46 | 258.90 | -60.18 | 116.78 | 0.8998 | -26.0 | -49.1 | |
| 2.09 | -3.00 | 2.35 | -3.00 | -21.64 | 258.69 | -60.39 | 115.83 | 0.8996 | -102.8 | 999999 | |
| 0.00 | 7.36 | 0.00 | 8.48 | -22.19 | 258.15 | -60.92 | 116.29 | 0.9044 | 269.0 | 361.1 | |
| 0.00 | 0.82 | 0.00 | 0.96 | -20.94 | 257.13 | -61.94 | 114.69 | 0.9089 | 236.0 | 266.9 | |
| 0.00 | 0.91 | 0.00 | 1.07 | -20.81 | 257.09 | -61.99 | 114.54 | 0.9090 | 175.0 | 174.6 | |
| 1.54 | 4.00 | 1.97 | 5.08 | -22.82 | 255.43 | -63.65 | 116.28 | 0.9228 | -343.8 | -265.9 | |
| 47.60 | 288.95 | 55.31 | 337.02 | -19.11 | 257.08 | -61.99 | 112.71 | 0.9061 | 658.5 | 176.5 | |
| 0.00 | 2.45 | 0.00 | 3.13 | -20.81 | 254.90 | -64.17 | 114.04 | 0.9229 | 466.0 | 291.1 | |
| 0.00 | 1.00 | 0.00 | 1.33 | -21.56 | 253.82 | -65.26 | 114.59 | 0.9304 | -371.0 | -314.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
