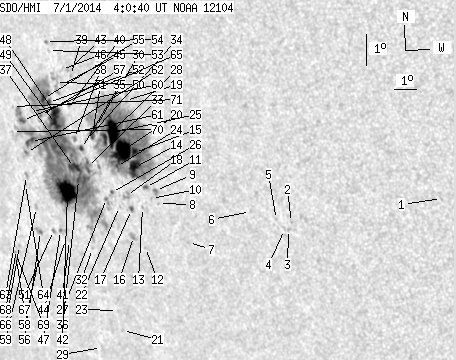

SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 164.14 | 955.17 | 132.01 | 771.87 | -10.75 | 267.91 | -50.62 | 106.00 | 0.7919 | 375.6 | 235.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.80 | -11.60 | 283.03 | -35.50 | 112.95 | 0.6199 | 515.0 | 405.7 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -12.55 | 276.86 | -41.66 | 111.35 | 0.6989 | 625.0 | 545.0 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -12.78 | 276.69 | -41.83 | 111.58 | 0.7018 | 605.0 | 567.4 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -12.78 | 276.52 | -42.00 | 111.52 | 0.7038 | 455.0 | 414.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -12.47 | 276.25 | -42.28 | 110.99 | 0.7058 | 546.0 | 424.6 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -12.26 | 275.18 | -43.34 | 110.27 | 0.7173 | 424.0 | 245.9 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -13.35 | 272.19 | -46.34 | 110.57 | 0.7541 | 564.0 | 540.2 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -12.15 | 271.10 | -47.42 | 108.68 | 0.7622 | 628.0 | 532.4 | |
| 0.82 | 3.82 | 0.62 | 2.91 | -11.75 | 271.06 | -47.47 | 108.15 | 0.7615 | 793.9 | 631.7 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -12.01 | 270.81 | -47.71 | 108.40 | 0.7649 | 592.0 | 527.0 | |
| 1.54 | 3.27 | 1.19 | 2.51 | -11.67 | 270.61 | -47.91 | 107.91 | 0.7661 | 736.9 | 600.6 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -13.58 | 270.13 | -48.40 | 110.16 | 0.7766 | -191.0 | -271.4 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -12.31 | 270.32 | -48.21 | 108.63 | 0.7710 | 549.0 | 502.0 | |
| 13.44 | 350.11 | 10.37 | 271.50 | -11.05 | 270.24 | -48.29 | 107.02 | 0.7685 | 902.6 | 447.0 | |
| 5.18 | -14.00 | 3.98 | -14.00 | -10.58 | 270.34 | -48.19 | 106.45 | 0.7662 | 1209.1 | 999999 | |
| 0.00 | 4.36 | 0.00 | 3.44 | -13.25 | 269.64 | -48.88 | 109.59 | 0.7806 | -447.0 | -353.3 | |
| 1.27 | 2.82 | 1.00 | 2.21 | -12.39 | 269.78 | -48.75 | 108.57 | 0.7769 | 645.4 | 507.6 | |
| 0.00 | 4.91 | 0.00 | 3.84 | -11.96 | 269.65 | -48.88 | 107.98 | 0.7771 | 636.0 | 610.0 | |
| 0.00 | 4.91 | 0.00 | 3.75 | -8.96 | 270.24 | -48.29 | 104.34 | 0.7634 | 164.0 | 164.8 | |
| 27.16 | -14.00 | 21.08 | -14.00 | -10.54 | 269.78 | -48.74 | 106.23 | 0.7720 | 1087.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -16.31 | 268.14 | -50.38 | 112.82 | 0.8043 | 490.0 | 389.8 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -12.32 | 269.22 | -49.31 | 108.30 | 0.7824 | 461.0 | 413.4 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -15.67 | 268.12 | -50.41 | 112.05 | 0.8027 | 441.0 | 330.3 | |
| 0.27 | -14.00 | 0.21 | -14.00 | -11.06 | 269.38 | -49.14 | 106.77 | 0.7775 | 418.0 | 999999 | |
| 21.53 | -14.00 | 16.79 | -14.00 | -9.99 | 269.43 | -49.10 | 105.44 | 0.7745 | 978.5 | 999999 | |
| 0.82 | 2.91 | 0.65 | 2.31 | -11.89 | 268.94 | -49.58 | 107.69 | 0.7842 | 486.1 | 384.8 | |
| 0.55 | 6.81 | 0.44 | 5.45 | -12.09 | 268.65 | -49.87 | 107.85 | 0.7877 | 456.0 | 393.6 | |
| 5.00 | -14.00 | 3.93 | -14.00 | -10.19 | 269.00 | -49.52 | 105.58 | 0.7795 | 412.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -16.91 | 266.85 | -51.67 | 113.10 | 0.8182 | 436.0 | 346.0 | |
| 2.18 | -14.00 | 1.73 | -14.00 | -9.86 | 268.64 | -49.89 | 105.07 | 0.7826 | 493.0 | 999999 | |
| 3.63 | -14.00 | 2.89 | -14.00 | -10.09 | 268.45 | -50.08 | 105.31 | 0.7851 | 384.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -13.71 | 267.50 | -51.02 | 109.50 | 0.8034 | -591.0 | -521.5 | |
| 4.54 | 507.91 | 3.67 | 422.11 | -11.11 | 267.97 | -50.56 | 106.45 | 0.7923 | 150.0 | 118.2 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -10.29 | 268.06 | -50.47 | 105.46 | 0.7895 | 321.0 | 276.1 | |
| 2.18 | -33.00 | 1.76 | -33.00 | -10.55 | 267.80 | -50.72 | 105.72 | 0.7928 | 587.5 | 999999 | |
| 2.45 | -33.00 | 2.01 | -33.00 | -11.54 | 267.41 | -51.11 | 106.83 | 0.7990 | -548.1 | 999999 | |
| 8.63 | -33.00 | 7.08 | -33.00 | -11.17 | 267.31 | -51.22 | 106.34 | 0.7992 | -6.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.99 | -10.25 | 267.53 | -51.00 | 105.27 | 0.7949 | 834.0 | 641.8 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -8.28 | 267.73 | -50.79 | 102.87 | 0.7888 | 614.0 | 579.8 | |
| 0.00 | 1.36 | 0.00 | 1.10 | -9.22 | 267.50 | -51.02 | 103.99 | 0.7930 | 690.0 | 626.3 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -13.50 | 266.40 | -52.13 | 108.93 | 0.8136 | -538.0 | -469.8 | |
| 27.43 | -33.00 | 22.88 | -33.00 | -11.94 | 266.76 | -51.77 | 107.14 | 0.8064 | -933.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.46 | -8.13 | 267.61 | -50.91 | 102.66 | 0.7897 | 725.0 | 594.8 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -13.48 | 266.20 | -52.32 | 108.84 | 0.8154 | -461.0 | -447.0 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -8.58 | 267.23 | -51.29 | 103.13 | 0.7945 | 675.0 | 590.2 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -8.11 | 267.32 | -51.20 | 102.57 | 0.7927 | 648.0 | 564.1 | |
| 0.73 | 3.36 | 0.62 | 2.86 | -13.20 | 266.03 | -52.50 | 108.46 | 0.8164 | -695.4 | -675.7 | |
| 9.08 | -33.00 | 7.49 | -33.00 | -9.50 | 266.75 | -51.78 | 104.16 | 0.8013 | 765.2 | 999999 | |
| 9.63 | -33.00 | 7.96 | -33.00 | -9.82 | 266.68 | -51.85 | 104.53 | 0.8027 | 941.9 | 999999 | |
| 0.00 | 11.63 | 0.00 | 9.50 | -8.53 | 266.95 | -51.58 | 103.01 | 0.7974 | 366.0 | 510.0 | |
| 0.64 | 1.82 | 0.55 | 1.56 | -13.22 | 265.66 | -52.86 | 108.38 | 0.8199 | -558.7 | -426.4 | |
| 2.27 | -33.00 | 1.88 | -33.00 | -9.17 | 266.46 | -52.06 | 103.69 | 0.8035 | 565.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -7.54 | 266.78 | -51.75 | 101.75 | 0.7974 | 537.0 | 432.1 | |
| 0.36 | 1.27 | 0.30 | 1.04 | -7.27 | 266.67 | -51.85 | 101.39 | 0.7980 | -120.8 | 17.4 | |
| 2.91 | -33.00 | 2.42 | -33.00 | -9.06 | 266.24 | -52.29 | 103.49 | 0.8056 | 581.7 | 999999 | |
| 1.00 | 3.82 | 0.88 | 3.35 | -13.28 | 264.96 | -53.57 | 108.26 | 0.8267 | -670.1 | -546.4 | |
| 0.73 | -33.00 | 0.61 | -33.00 | -9.60 | 265.97 | -52.56 | 104.09 | 0.8094 | 464.4 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.48 | -14.05 | 264.64 | -53.88 | 109.09 | 0.8313 | -449.0 | -421.2 | |
| 0.00 | 2.27 | 0.00 | 1.98 | -12.52 | 264.99 | -53.54 | 107.37 | 0.8248 | -655.0 | -520.9 | |
| 0.00 | 1.64 | 0.00 | 1.39 | -9.49 | 265.53 | -53.00 | 103.86 | 0.8135 | 329.0 | 284.3 | |
| 4.81 | -33.00 | 4.12 | -33.00 | -10.44 | 265.25 | -53.28 | 104.94 | 0.8180 | 379.2 | 999999 | |
| 0.82 | -33.00 | 0.71 | -33.00 | -10.79 | 264.95 | -53.58 | 105.30 | 0.8216 | 429.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.98 | -11.52 | 264.75 | -53.78 | 106.12 | 0.8250 | -397.0 | -254.0 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -11.81 | 264.61 | -53.91 | 106.43 | 0.8268 | -245.0 | -216.0 | |
| 2.54 | -33.00 | 2.19 | -33.00 | -9.79 | 264.99 | -53.54 | 104.11 | 0.8193 | 674.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -13.78 | 263.66 | -54.87 | 108.50 | 0.8397 | -586.0 | -479.6 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -14.23 | 263.32 | -55.20 | 108.95 | 0.8436 | -501.0 | -479.7 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -13.91 | 263.44 | -55.08 | 108.61 | 0.8419 | -435.0 | -426.6 | |
| 0.00 | 1.00 | 0.00 | 0.91 | -14.01 | 263.35 | -55.17 | 108.70 | 0.8429 | -391.0 | -322.8 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -10.16 | 264.37 | -54.16 | 104.41 | 0.8260 | 384.0 | 329.1 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -9.37 | 264.56 | -53.97 | 103.51 | 0.8227 | 207.0 | 134.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
