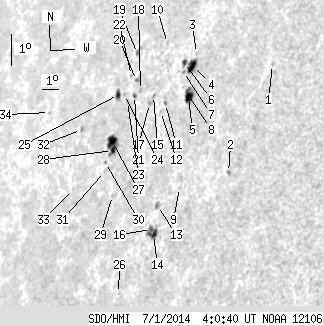

SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.63 | 99.40 | 38.77 | 97.32 | 14.13 | 259.22 | -59.31 | 75.28 | 0.8638 | -286.1 | -91.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.84 | 16.22 | 265.58 | -52.95 | 71.94 | 0.8082 | -487.0 | -412.5 | |
| 0.00 | 1.73 | 0.00 | 1.47 | 12.79 | 264.43 | -54.09 | 76.31 | 0.8152 | -685.0 | -513.0 | |
| 0.00 | 0.91 | 0.00 | 0.85 | 16.39 | 261.25 | -57.27 | 72.41 | 0.8487 | -518.0 | -412.4 | |
| 7.09 | 10.08 | 6.60 | 9.40 | 16.01 | 261.19 | -57.34 | 72.86 | 0.8488 | -642.9 | -416.9 | |
| 5.81 | 12.17 | 5.37 | 11.24 | 15.01 | 261.39 | -57.14 | 74.01 | 0.8460 | -678.5 | -554.4 | |
| 1.64 | 3.36 | 1.54 | 3.17 | 16.09 | 260.68 | -57.85 | 72.85 | 0.8534 | -272.7 | -175.9 | |
| 0.00 | 1.27 | 0.00 | 1.20 | 15.81 | 260.75 | -57.78 | 73.16 | 0.8525 | -367.0 | -347.8 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 15.31 | 260.96 | -57.56 | 73.72 | 0.8501 | -147.0 | -197.7 | |
| 0.00 | 0.73 | 0.00 | 0.66 | 12.22 | 261.90 | -56.62 | 77.26 | 0.8388 | -422.0 | -410.4 | |
| 0.00 | 1.82 | 0.00 | 1.78 | 16.63 | 259.37 | -59.15 | 72.38 | 0.8651 | -322.0 | -203.9 | |
| 0.00 | 1.54 | 0.00 | 1.48 | 14.77 | 260.12 | -58.41 | 74.44 | 0.8570 | -459.0 | -354.1 | |
| 0.00 | 0.82 | 0.00 | 0.78 | 14.51 | 259.92 | -58.60 | 74.77 | 0.8584 | -286.0 | -245.2 | |
| 0.00 | 3.27 | 0.00 | 3.04 | 11.62 | 260.83 | -57.70 | 78.07 | 0.8483 | -441.0 | -303.8 | |
| 4.91 | 11.45 | 4.55 | 10.64 | 10.72 | 260.87 | -57.65 | 79.13 | 0.8473 | -514.9 | -253.1 | |
| 0.00 | 1.36 | 0.00 | 1.33 | 14.99 | 259.28 | -59.24 | 74.29 | 0.8643 | 134.0 | 87.5 | |
| 1.09 | -14.00 | 1.02 | -14.00 | 10.87 | 260.71 | -57.82 | 78.96 | 0.8489 | -315.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.60 | 14.73 | 259.15 | -59.38 | 74.60 | 0.8652 | 524.0 | 422.1 | |
| 0.00 | 1.91 | 0.00 | 1.92 | 15.11 | 258.41 | -60.12 | 74.24 | 0.8717 | 672.0 | 532.6 | |
| 0.82 | 3.82 | 0.84 | 3.93 | 16.25 | 257.65 | -60.88 | 73.03 | 0.8788 | 444.4 | 334.2 | |
| 0.55 | 3.27 | 0.55 | 3.32 | 15.41 | 258.01 | -60.52 | 73.94 | 0.8752 | 686.8 | 497.4 | |
| 0.91 | 1.91 | 0.92 | 1.93 | 14.94 | 258.10 | -60.42 | 74.46 | 0.8741 | 556.1 | 479.2 | |
| 0.00 | 1.00 | 0.00 | 1.03 | 15.55 | 257.61 | -60.91 | 73.82 | 0.8785 | 367.0 | 292.3 | |
| 0.00 | 2.63 | 0.00 | 2.69 | 14.74 | 257.75 | -60.78 | 74.73 | 0.8769 | 187.0 | 259.9 | |
| 0.00 | 0.64 | 0.00 | 0.66 | 14.95 | 257.45 | -61.08 | 74.52 | 0.8794 | 398.0 | 448.9 | |
| 3.27 | 5.18 | 3.42 | 5.42 | 14.93 | 257.06 | -61.47 | 74.58 | 0.8825 | 493.2 | 418.2 | |
| 0.00 | 0.82 | 0.00 | 0.79 | 8.84 | 259.32 | -59.21 | 81.42 | 0.8605 | 378.0 | 358.2 | |
| 9.45 | 18.80 | 9.76 | 19.37 | 13.47 | 257.34 | -61.18 | 76.21 | 0.8793 | -490.0 | -315.4 | |
| 4.09 | -27.00 | 4.20 | -27.00 | 13.19 | 257.46 | -61.07 | 76.52 | 0.8782 | -653.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.01 | 11.81 | 258.01 | -60.52 | 78.05 | 0.8729 | 303.0 | 286.4 | |
| 0.00 | 1.00 | 0.00 | 1.04 | 12.80 | 257.16 | -61.36 | 76.98 | 0.8803 | -369.0 | -248.7 | |
| 0.00 | 0.82 | 0.00 | 0.85 | 12.53 | 257.21 | -61.31 | 77.29 | 0.8798 | -408.0 | -356.9 | |
| 0.00 | 2.00 | 0.00 | 2.22 | 13.75 | 255.10 | -63.43 | 76.07 | 0.8969 | -325.0 | -253.5 | |
| 0.00 | 0.27 | 0.00 | 0.30 | 11.89 | 255.38 | -63.14 | 78.13 | 0.8939 | -155.0 | -192.0 | |
| 0.00 | 0.91 | 0.00 | 1.11 | 14.17 | 252.50 | -66.03 | 75.77 | 0.9157 | 300.0 | 281.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
