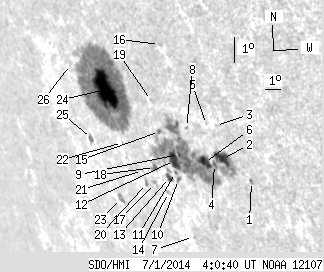

SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.20 | 582.78 | 103.26 | 636.29 | -20.14 | 258.86 | -59.66 | 114.44 | 0.8914 | 346.5 | -6.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.89 | -21.83 | 264.43 | -54.09 | 117.93 | 0.8531 | 570.0 | 402.5 | |
| 12.45 | 258.18 | 12.05 | 264.69 | -21.11 | 263.18 | -55.35 | 116.72 | 0.8612 | 762.7 | -245.0 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -20.02 | 263.37 | -55.15 | 115.56 | 0.8568 | 363.0 | 313.9 | |
| 1.64 | -2.00 | 1.61 | -2.00 | -21.34 | 262.58 | -55.95 | 116.79 | 0.8665 | 443.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -20.00 | 262.86 | -55.66 | 115.39 | 0.8609 | 471.0 | 389.4 | |
| 9.72 | -2.00 | 9.72 | -2.00 | -21.30 | 262.01 | -56.51 | 116.56 | 0.8707 | 478.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.90 | -23.88 | 259.60 | -58.92 | 118.66 | 0.8943 | -476.0 | -428.3 | |
| 0.00 | 1.18 | 0.00 | 1.18 | -20.16 | 261.60 | -56.93 | 115.18 | 0.8712 | 293.0 | 154.9 | |
| 1.45 | -2.00 | 1.51 | -2.00 | -21.09 | 260.62 | -57.91 | 115.93 | 0.8808 | -873.4 | 999999 | |
| 1.09 | -2.00 | 1.16 | -2.00 | -21.95 | 260.00 | -58.53 | 116.69 | 0.8872 | -607.0 | 999999 | |
| 0.45 | -2.00 | 0.48 | -2.00 | -21.72 | 259.96 | -58.56 | 116.42 | 0.8870 | -523.0 | 999999 | |
| 13.08 | -2.00 | 13.79 | -2.00 | -21.31 | 260.17 | -58.36 | 116.04 | 0.8846 | -689.5 | 999999 | |
| 3.09 | -2.00 | 3.35 | -2.00 | -21.91 | 259.45 | -59.07 | 116.49 | 0.8911 | -325.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.90 | -22.43 | 259.03 | -59.50 | 116.93 | 0.8951 | -195.0 | -101.0 | |
| 0.91 | -2.00 | 0.96 | -2.00 | -20.37 | 259.82 | -58.71 | 114.91 | 0.8852 | -367.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -17.46 | 261.43 | -57.10 | 112.12 | 0.8666 | 91.0 | 110.0 | |
| 0.00 | 3.27 | 0.00 | 3.67 | -22.16 | 258.36 | -60.16 | 116.46 | 0.8992 | 501.0 | 369.9 | |
| 2.18 | -2.00 | 2.41 | -2.00 | -21.61 | 258.68 | -59.84 | 115.95 | 0.8959 | -105.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.61 | -19.34 | 259.93 | -58.60 | 113.82 | 0.8822 | 189.0 | 236.9 | |
| 0.00 | 2.00 | 0.00 | 2.29 | -22.19 | 257.73 | -60.79 | 116.32 | 0.9035 | 573.0 | 476.0 | |
| 0.00 | 0.91 | 0.00 | 1.04 | -21.75 | 257.78 | -60.74 | 115.86 | 0.9023 | 315.0 | 321.4 | |
| 0.00 | 0.91 | 0.00 | 1.05 | -20.85 | 257.06 | -61.47 | 114.72 | 0.9056 | 304.0 | 284.9 | |
| 0.00 | 5.00 | 0.00 | 6.22 | -22.79 | 255.49 | -63.03 | 116.40 | 0.9190 | -560.0 | -347.0 | |
| 47.60 | 297.33 | 54.29 | 340.83 | -19.11 | 257.07 | -61.45 | 112.84 | 0.9024 | 692.8 | 164.5 | |
| 1.54 | 4.09 | 1.93 | 5.12 | -20.82 | 254.86 | -63.66 | 114.16 | 0.9198 | 415.1 | 175.3 | |
| 0.00 | 0.82 | 0.00 | 0.99 | -18.39 | 255.09 | -63.44 | 111.62 | 0.9147 | -425.0 | -362.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
