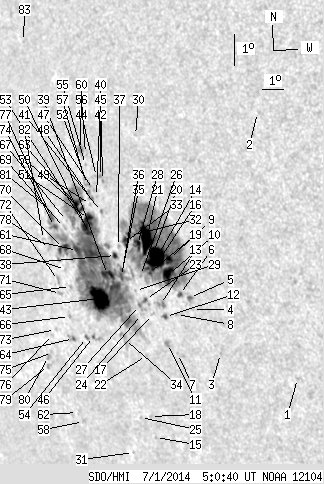

SDO HMI 2014-07-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.34 | 987.10 | 148.73 | 789.82 | -10.68 | 267.75 | -50.23 | 106.01 | 0.7878 | 372.9 | 219.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.90 | -14.16 | 275.28 | -42.69 | 113.08 | 0.7170 | 648.0 | 578.4 | |
| 0.00 | 0.55 | 0.00 | 0.37 | -5.86 | 274.97 | -43.01 | 101.54 | 0.6948 | 549.0 | 554.8 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -13.48 | 272.06 | -45.92 | 110.91 | 0.7501 | 634.0 | 544.2 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -12.13 | 271.11 | -46.87 | 108.84 | 0.7561 | 559.0 | 591.2 | |
| 1.00 | 2.54 | 0.75 | 1.92 | -11.75 | 271.06 | -46.92 | 108.34 | 0.7556 | 815.5 | 693.7 | |
| 1.36 | 369.58 | 1.03 | 283.55 | -11.67 | 270.62 | -47.36 | 108.10 | 0.7602 | 755.2 | 434.8 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -13.56 | 270.05 | -47.92 | 110.30 | 0.7716 | -469.0 | -398.8 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -12.32 | 270.33 | -47.65 | 108.82 | 0.7651 | 557.0 | 426.4 | |
| 3.09 | -6.00 | 2.34 | -6.00 | -10.55 | 270.40 | -47.58 | 106.59 | 0.7595 | 1342.2 | 999999 | |
| 13.45 | -6.00 | 10.26 | -6.00 | -11.06 | 270.24 | -47.73 | 107.20 | 0.7625 | 919.0 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.69 | -13.26 | 269.66 | -48.31 | 109.79 | 0.7748 | -404.0 | -352.7 | |
| 1.18 | 2.36 | 0.92 | 1.83 | -12.40 | 269.79 | -48.19 | 108.75 | 0.7710 | 644.4 | 512.6 | |
| 0.00 | 5.18 | 0.00 | 4.01 | -12.03 | 269.65 | -48.33 | 108.24 | 0.7715 | 720.0 | 619.4 | |
| 28.71 | -6.00 | 22.05 | -6.00 | -10.55 | 269.80 | -48.18 | 106.41 | 0.7660 | 1084.4 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -16.31 | 268.14 | -49.84 | 113.02 | 0.7991 | 429.0 | 342.8 | |
| 0.27 | -6.00 | 0.21 | -6.00 | -10.93 | 269.53 | -48.45 | 106.82 | 0.7699 | 707.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.21 | -12.36 | 269.19 | -48.79 | 108.51 | 0.7772 | 472.0 | 411.2 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -15.64 | 268.12 | -49.85 | 112.20 | 0.7973 | 350.0 | 339.1 | |
| 1.00 | -6.00 | 0.78 | -6.00 | -11.03 | 269.36 | -48.62 | 106.90 | 0.7719 | 344.7 | 999999 | |
| 0.91 | -6.00 | 0.71 | -6.00 | -10.91 | 269.29 | -48.68 | 106.72 | 0.7723 | 360.0 | 999999 | |
| 22.99 | -6.00 | 17.73 | -6.00 | -10.00 | 269.44 | -48.54 | 105.61 | 0.7685 | 966.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -13.68 | 268.54 | -49.44 | 109.95 | 0.7875 | -289.0 | -281.5 | |
| 1.09 | 9.09 | 0.86 | 7.16 | -11.89 | 268.97 | -49.01 | 107.87 | 0.7783 | 590.9 | 428.4 | |
| 0.00 | 1.82 | 0.00 | 1.44 | -12.38 | 268.65 | -49.32 | 108.38 | 0.7828 | 391.0 | 374.4 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -15.69 | 267.61 | -50.37 | 112.10 | 0.8024 | 541.0 | 509.0 | |
| 0.00 | 1.36 | 0.00 | 1.07 | -11.14 | 268.91 | -49.07 | 106.91 | 0.7770 | -183.0 | -145.7 | |
| 0.64 | -23.00 | 0.50 | -23.00 | -12.10 | 268.63 | -49.35 | 108.02 | 0.7823 | 480.0 | 999999 | |
| 4.54 | -6.00 | 3.54 | -6.00 | -10.17 | 268.98 | -49.00 | 105.70 | 0.7738 | 460.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -11.63 | 268.56 | -49.42 | 107.41 | 0.7819 | 276.0 | 230.6 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -6.77 | 269.48 | -48.50 | 101.46 | 0.7611 | 562.0 | 446.5 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -16.85 | 266.84 | -51.14 | 113.22 | 0.8131 | 378.0 | 338.1 | |
| 2.09 | -6.00 | 1.64 | -6.00 | -9.90 | 268.66 | -49.32 | 105.27 | 0.7767 | 508.7 | 999999 | |
| 4.27 | -6.00 | 3.36 | -6.00 | -10.10 | 268.42 | -49.55 | 105.46 | 0.7796 | 383.3 | 999999 | |
| 0.00 | 5.36 | 0.00 | 4.37 | -13.21 | 267.60 | -50.38 | 109.08 | 0.7957 | -600.0 | -493.8 | |
| 1.64 | 497.23 | 1.30 | 407.64 | -11.02 | 268.07 | -49.90 | 106.52 | 0.7854 | 607.8 | 108.1 | |
| 2.91 | -35.00 | 2.32 | -35.00 | -11.21 | 267.98 | -50.00 | 106.73 | 0.7868 | -23.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -10.27 | 268.05 | -49.93 | 105.57 | 0.7839 | 442.0 | 315.2 | |
| 2.36 | -35.00 | 1.89 | -35.00 | -10.56 | 267.84 | -50.14 | 105.88 | 0.7868 | 614.2 | 999999 | |
| 8.36 | -35.00 | 6.77 | -35.00 | -11.17 | 267.30 | -50.67 | 106.50 | 0.7937 | -8.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -8.23 | 267.68 | -50.30 | 102.92 | 0.7835 | 751.0 | 634.2 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -9.20 | 267.45 | -50.53 | 104.09 | 0.7879 | 703.0 | 664.1 | |
| 0.00 | 1.45 | 0.00 | 1.16 | -8.11 | 267.60 | -50.37 | 102.75 | 0.7840 | 666.0 | 588.6 | |
| 31.16 | -35.00 | 25.68 | -35.00 | -11.95 | 266.71 | -51.27 | 107.29 | 0.8015 | -925.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -8.11 | 267.41 | -50.57 | 102.72 | 0.7861 | 589.0 | 567.9 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -8.74 | 267.29 | -50.68 | 103.47 | 0.7886 | 540.0 | 365.5 | |
| 0.73 | 5.00 | 0.61 | 4.19 | -13.18 | 266.05 | -51.92 | 108.59 | 0.8109 | -667.1 | -650.0 | |
| 0.00 | 1.27 | 0.00 | 1.02 | -8.53 | 267.19 | -50.79 | 103.18 | 0.7892 | 694.0 | 591.6 | |
| 0.64 | 4.72 | 0.51 | 3.81 | -8.81 | 267.03 | -50.94 | 103.50 | 0.7914 | 722.0 | 470.4 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -9.00 | 266.95 | -51.03 | 103.72 | 0.7927 | 441.0 | 426.8 | |
| 4.00 | -35.00 | 3.26 | -35.00 | -9.91 | 266.71 | -51.27 | 104.79 | 0.7970 | 1017.8 | 999999 | |
| 7.54 | -35.00 | 6.14 | -35.00 | -9.44 | 266.76 | -51.22 | 104.22 | 0.7955 | 784.3 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.49 | -8.38 | 266.92 | -51.06 | 102.94 | 0.7918 | 604.0 | 507.8 | |
| 8.99 | -35.00 | 7.35 | -35.00 | -9.70 | 266.60 | -51.37 | 104.50 | 0.7976 | 919.5 | 999999 | |
| 0.91 | 2.18 | 0.77 | 1.85 | -13.22 | 265.68 | -52.30 | 108.54 | 0.8146 | -518.2 | -420.4 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -7.76 | 266.93 | -51.05 | 102.17 | 0.7905 | 407.0 | 357.3 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -7.42 | 266.99 | -50.99 | 101.75 | 0.7892 | 452.0 | 438.8 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -8.20 | 266.80 | -51.17 | 102.69 | 0.7926 | 461.0 | 392.2 | |
| 0.00 | 1.91 | 0.00 | 1.69 | -15.94 | 264.57 | -53.40 | 111.44 | 0.8315 | -674.0 | -507.3 | |
| 2.63 | -35.00 | 2.16 | -35.00 | -9.18 | 266.46 | -51.51 | 103.82 | 0.7980 | 566.2 | 999999 | |
| 0.00 | 7.00 | 0.00 | 5.64 | -7.30 | 266.76 | -51.22 | 101.56 | 0.7914 | 311.0 | 182.5 | |
| 5.81 | -35.00 | 4.84 | -35.00 | -10.47 | 265.97 | -52.00 | 105.30 | 0.8056 | 479.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -15.66 | 264.36 | -53.62 | 111.05 | 0.8327 | -371.0 | -449.9 | |
| 9.90 | -35.00 | 8.13 | -35.00 | -9.03 | 266.25 | -51.73 | 103.59 | 0.7999 | 577.4 | 999999 | |
| 0.82 | 4.18 | 0.71 | 3.62 | -13.28 | 264.99 | -52.99 | 108.42 | 0.8213 | -606.9 | -521.8 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -11.63 | 265.32 | -52.66 | 106.53 | 0.8145 | -445.0 | -338.0 | |
| 0.00 | 1.54 | 0.00 | 1.33 | -12.59 | 264.99 | -52.99 | 107.60 | 0.8197 | -616.0 | -498.4 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -9.55 | 265.63 | -52.35 | 104.09 | 0.8072 | 337.0 | 281.7 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -11.10 | 265.20 | -52.78 | 105.87 | 0.8145 | 140.0 | 148.1 | |
| 0.00 | 1.64 | 0.00 | 1.37 | -9.78 | 265.48 | -52.50 | 104.33 | 0.8091 | 459.0 | 396.0 | |
| 6.63 | -35.00 | 5.60 | -35.00 | -10.44 | 265.27 | -52.71 | 105.09 | 0.8125 | 263.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.88 | -11.87 | 264.73 | -53.25 | 106.68 | 0.8207 | -345.0 | -266.5 | |
| 0.00 | 2.63 | 0.00 | 2.27 | -11.46 | 264.74 | -53.24 | 106.19 | 0.8197 | -261.0 | -175.4 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -13.03 | 264.11 | -53.86 | 107.90 | 0.8290 | -396.0 | -360.4 | |
| 2.27 | 12.26 | 1.93 | 10.43 | -9.77 | 264.96 | -53.01 | 104.20 | 0.8142 | 692.2 | 422.8 | |
| 0.00 | 0.55 | 0.00 | 0.49 | -13.78 | 263.70 | -54.27 | 108.67 | 0.8343 | -514.0 | -322.3 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -13.20 | 263.90 | -54.08 | 108.04 | 0.8313 | -406.0 | -272.2 | |
| 2.45 | -74.00 | 2.08 | -74.00 | -9.49 | 264.87 | -53.11 | 103.84 | 0.8146 | 595.9 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.95 | -10.44 | 264.54 | -53.44 | 104.91 | 0.8196 | -277.0 | -226.4 | |
| 0.00 | 2.27 | 0.00 | 2.05 | -14.21 | 263.33 | -54.64 | 109.07 | 0.8386 | -583.0 | -470.0 | |
| 0.00 | 3.00 | 0.00 | 2.70 | -13.92 | 263.44 | -54.54 | 108.76 | 0.8371 | -453.0 | -446.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -9.18 | 264.68 | -53.30 | 103.44 | 0.8159 | 326.0 | 251.7 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -10.20 | 264.29 | -53.69 | 104.57 | 0.8216 | 337.0 | 294.4 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -4.07 | 264.31 | -53.67 | 97.14 | 0.8120 | 171.0 | 201.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
