SDO HMI 2014-07-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.53 | 0.00 | 77.70 | -9.40 | 235.63 | -81.80 | 99.89 | 0.9911 | 58.2 | -58.2 | |
|
previous
or next observation for the same group /

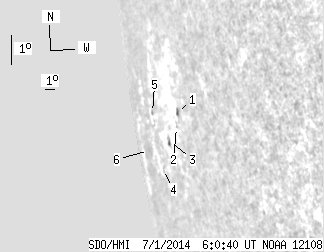

back to the solar disc SDO HMI 2014-07-01 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 5.05 | -8.10 | 240.85 | -76.58 | 98.99 | 0.9759 | 319.0 | 299.3 | |
| 0.00 | 0.45 | 0.00 | 1.05 | -8.59 | 240.40 | -77.03 | 99.45 | 0.9778 | 241.0 | 204.4 | |
| 0.00 | 3.36 | 0.00 | 8.85 | -9.10 | 238.99 | -78.44 | 99.84 | 0.9827 | 164.0 | 19.2 | |
| 0.00 | 1.64 | 0.00 | 5.19 | -10.06 | 237.04 | -80.39 | 100.66 | 0.9885 | -256.0 | -172.0 | |
| 0.00 | 1.36 | 0.00 | 4.48 | -8.31 | 236.68 | -80.75 | 98.87 | 0.9891 | -77.0 | -54.1 | |
| 0.00 | 11.45 | 0.00 | 53.08 | -9.61 | 234.25 | -83.18 | 100.00 | 0.9946 | -42.0 | -99.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
