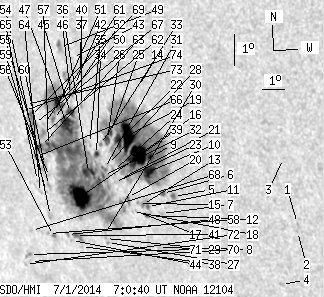

SDO HMI 2014-07-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.26 | 1001.48 | 144.31 | 782.59 | -10.63 | 267.77 | -49.11 | 106.28 | 0.7760 | 358.3 | 216.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.86 | -12.47 | 276.32 | -40.57 | 111.72 | 0.6858 | 599.0 | 474.6 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -12.72 | 276.27 | -40.62 | 112.06 | 0.6874 | 408.0 | 401.9 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -10.43 | 276.10 | -40.78 | 108.78 | 0.6808 | 602.0 | 469.8 | |
| 0.00 | 2.00 | 0.00 | 1.39 | -14.44 | 275.23 | -41.65 | 113.92 | 0.7064 | 506.0 | 407.9 | |
| 1.18 | 2.54 | 0.87 | 1.88 | -11.80 | 271.13 | -45.75 | 108.79 | 0.7430 | 861.5 | 755.6 | |
| 1.45 | 3.09 | 1.08 | 2.30 | -11.72 | 270.65 | -46.23 | 108.53 | 0.7480 | 754.9 | 614.0 | |
| 0.00 | 2.18 | 0.00 | 1.63 | -12.36 | 270.46 | -46.42 | 109.29 | 0.7520 | 434.0 | 371.8 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -13.45 | 270.06 | -46.83 | 110.54 | 0.7597 | -243.0 | -261.1 | |
| 2.54 | 371.98 | 1.89 | 279.48 | -10.57 | 270.35 | -46.53 | 106.94 | 0.7481 | 1346.2 | 431.1 | |
| 10.72 | -9.00 | 8.02 | -9.00 | -11.05 | 270.16 | -46.72 | 107.50 | 0.7515 | 916.6 | 999999 | |
| 1.00 | 6.18 | 0.76 | 4.68 | -12.16 | 269.87 | -47.01 | 108.84 | 0.7578 | 652.6 | 507.6 | |
| 1.09 | 3.00 | 0.83 | 2.27 | -12.45 | 269.75 | -47.13 | 109.17 | 0.7599 | 542.7 | 486.3 | |
| 0.55 | -11.00 | 0.41 | -11.00 | -12.10 | 269.65 | -47.23 | 108.69 | 0.7600 | 752.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -8.39 | 270.20 | -46.68 | 104.04 | 0.7442 | -564.0 | -431.0 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -12.08 | 269.47 | -47.41 | 108.60 | 0.7619 | 521.0 | 451.2 | |
| 30.89 | -9.00 | 23.24 | -9.00 | -10.56 | 269.76 | -47.12 | 106.75 | 0.7546 | 1048.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -12.34 | 269.32 | -47.56 | 108.88 | 0.7643 | 288.0 | 303.9 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -12.34 | 269.13 | -47.75 | 108.83 | 0.7663 | 408.0 | 339.4 | |
| 26.44 | -9.00 | 19.96 | -9.00 | -9.95 | 269.42 | -47.46 | 105.86 | 0.7567 | 1018.8 | 999999 | |
| 0.91 | 498.63 | 0.70 | 398.61 | -11.91 | 269.00 | -47.88 | 108.24 | 0.7664 | 559.5 | 95.0 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -11.35 | 268.76 | -48.13 | 107.46 | 0.7675 | 288.0 | 227.6 | |
| 7.36 | -9.00 | 5.61 | -9.00 | -10.12 | 268.97 | -47.91 | 105.95 | 0.7620 | 474.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -11.45 | 268.50 | -48.38 | 107.51 | 0.7706 | 297.0 | 307.1 | |
| 0.00 | 3.54 | 0.00 | 2.74 | -11.08 | 268.54 | -48.34 | 107.04 | 0.7692 | 688.0 | 473.4 | |
| 2.27 | -9.00 | 1.74 | -9.00 | -9.88 | 268.65 | -48.23 | 105.55 | 0.7650 | 457.2 | 999999 | |
| 4.18 | -9.00 | 3.22 | -9.00 | -10.11 | 268.46 | -48.42 | 105.79 | 0.7675 | 433.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -13.38 | 267.67 | -49.21 | 109.66 | 0.7844 | -645.0 | -561.5 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -10.90 | 268.30 | -48.59 | 106.74 | 0.7713 | 636.0 | 553.0 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -13.25 | 267.61 | -49.27 | 109.49 | 0.7847 | -519.0 | -506.5 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -13.06 | 267.67 | -49.22 | 109.27 | 0.7836 | -460.0 | -436.8 | |
| 1.45 | -20.00 | 1.13 | -20.00 | -11.03 | 268.12 | -48.76 | 106.86 | 0.7735 | 578.6 | 999999 | |
| 2.00 | -20.00 | 1.56 | -20.00 | -11.25 | 268.03 | -48.86 | 107.11 | 0.7751 | -118.0 | 999999 | |
| 0.45 | 1.64 | 0.35 | 1.27 | -10.28 | 268.10 | -48.78 | 105.90 | 0.7719 | 441.4 | 355.6 | |
| 2.27 | -20.00 | 1.77 | -20.00 | -10.60 | 267.84 | -49.04 | 106.24 | 0.7754 | 646.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.64 | -10.27 | 267.58 | -49.30 | 105.75 | 0.7774 | 422.0 | 368.3 | |
| 9.45 | -20.00 | 7.48 | -20.00 | -11.19 | 267.32 | -49.56 | 106.83 | 0.7823 | 62.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.56 | -9.09 | 267.44 | -49.45 | 104.22 | 0.7762 | 683.0 | 566.1 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -13.56 | 266.35 | -50.53 | 109.47 | 0.7982 | -565.0 | -472.1 | |
| 32.25 | -20.00 | 25.96 | -20.00 | -11.96 | 266.74 | -50.14 | 107.63 | 0.7901 | -923.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.77 | -8.09 | 267.57 | -49.32 | 102.98 | 0.7727 | 769.0 | 636.1 | |
| 1.73 | 7.09 | 1.42 | 5.80 | -13.22 | 266.15 | -50.73 | 108.99 | 0.7993 | -714.3 | -593.3 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -8.47 | 267.21 | -49.67 | 103.39 | 0.7773 | 644.0 | 591.5 | |
| 0.00 | 0.55 | 0.00 | 0.43 | -7.60 | 267.27 | -49.62 | 102.29 | 0.7750 | 465.0 | 418.0 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -13.38 | 265.90 | -50.98 | 109.12 | 0.8021 | -446.0 | -393.0 | |
| 5.18 | -20.00 | 4.10 | -20.00 | -9.33 | 266.86 | -50.02 | 104.38 | 0.7828 | 741.4 | 999999 | |
| 0.55 | 12.63 | 0.43 | 9.96 | -8.76 | 266.97 | -49.91 | 103.69 | 0.7805 | 633.5 | 513.5 | |
| 16.81 | -20.00 | 13.42 | -20.00 | -9.74 | 266.63 | -50.25 | 104.84 | 0.7862 | 912.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.80 | -13.20 | 265.76 | -51.12 | 108.86 | 0.8031 | -631.0 | -478.2 | |
| 0.00 | 6.18 | 0.00 | 4.88 | -7.32 | 266.69 | -50.20 | 101.80 | 0.7807 | 507.0 | 212.1 | |
| 10.63 | -20.00 | 8.51 | -20.00 | -9.04 | 266.33 | -50.55 | 103.89 | 0.7878 | 627.9 | 999999 | |
| 0.45 | -20.00 | 0.37 | -20.00 | -9.36 | 266.07 | -50.81 | 104.22 | 0.7911 | 292.8 | 999999 | |
| 1.18 | -20.00 | 0.96 | -20.00 | -9.58 | 265.98 | -50.90 | 104.48 | 0.7926 | 521.9 | 999999 | |
| 0.64 | 1.73 | 0.53 | 1.45 | -13.26 | 265.03 | -51.85 | 108.72 | 0.8104 | -631.9 | -592.1 | |
| 0.00 | 3.54 | 0.00 | 2.97 | -12.63 | 265.07 | -51.81 | 107.97 | 0.8085 | -296.0 | -403.4 | |
| 0.00 | 3.09 | 0.00 | 2.56 | -11.67 | 265.28 | -51.60 | 106.87 | 0.8042 | -407.0 | -325.0 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -11.39 | 265.36 | -51.53 | 106.54 | 0.8028 | 52.0 | 37.8 | |
| 2.00 | -20.00 | 1.64 | -20.00 | -10.41 | 265.55 | -51.34 | 105.39 | 0.7988 | 298.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -13.21 | 264.79 | -52.09 | 108.59 | 0.8126 | -628.0 | -574.8 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -11.87 | 265.08 | -51.81 | 107.06 | 0.8067 | -434.0 | -389.6 | |
| 0.00 | 9.18 | 0.00 | 7.61 | -11.02 | 265.20 | -51.68 | 106.05 | 0.8036 | 169.0 | 120.1 | |
| 0.00 | 1.73 | 0.00 | 1.41 | -9.72 | 265.50 | -51.38 | 104.54 | 0.7978 | 221.0 | 324.3 | |
| 0.00 | 6.00 | 0.00 | 4.93 | -10.04 | 265.38 | -51.50 | 104.90 | 0.7997 | 459.0 | 409.1 | |
| 1.73 | -20.00 | 1.43 | -20.00 | -10.46 | 265.13 | -51.75 | 105.35 | 0.8030 | 241.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.30 | -11.92 | 264.76 | -52.12 | 107.02 | 0.8099 | -338.0 | -298.0 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -11.54 | 264.71 | -52.17 | 106.56 | 0.8096 | -389.0 | -310.2 | |
| 0.91 | -20.00 | 0.76 | -20.00 | -10.78 | 264.85 | -52.03 | 105.67 | 0.8065 | 331.1 | 999999 | |
| 1.82 | 16.26 | 1.50 | 13.49 | -9.74 | 265.00 | -51.89 | 104.44 | 0.8029 | 681.3 | 373.6 | |
| 0.00 | 1.64 | 0.00 | 1.41 | -13.15 | 263.93 | -52.95 | 108.28 | 0.8207 | -392.0 | -254.2 | |
| 2.73 | -67.00 | 2.26 | -67.00 | -9.50 | 264.85 | -52.04 | 104.11 | 0.8040 | 578.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -14.15 | 263.55 | -53.33 | 109.36 | 0.8265 | -606.0 | -545.7 | |
| 0.45 | 2.91 | 0.40 | 2.54 | -13.92 | 263.57 | -53.31 | 109.10 | 0.8258 | -646.4 | -478.7 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -14.25 | 263.25 | -53.63 | 109.40 | 0.8296 | -465.0 | -375.3 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -9.17 | 264.67 | -52.22 | 103.66 | 0.8051 | 240.0 | 248.4 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -9.36 | 264.57 | -52.31 | 103.87 | 0.8064 | 174.0 | 176.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
