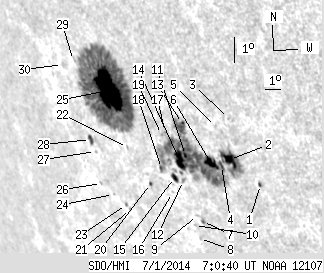

SDO HMI 2014-07-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.76 | 574.69 | 105.70 | 600.44 | -20.03 | 258.76 | -58.13 | 114.75 | 0.8799 | 353.7 | -9.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 1.73 | 0.58 | 1.57 | -21.88 | 264.41 | -52.47 | 118.57 | 0.8400 | 381.6 | 351.2 | |
| 11.72 | 225.97 | 10.90 | 220.92 | -21.10 | 263.12 | -53.76 | 117.24 | 0.8484 | 764.7 | -221.5 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -19.72 | 263.77 | -53.11 | 115.90 | 0.8390 | 340.0 | 385.7 | |
| 2.09 | -2.00 | 1.98 | -2.00 | -21.33 | 262.55 | -54.33 | 117.30 | 0.8537 | 451.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.93 | -20.02 | 262.91 | -53.98 | 115.95 | 0.8472 | 530.0 | 394.7 | |
| 9.36 | -2.00 | 8.97 | -2.00 | -21.28 | 262.01 | -54.87 | 117.07 | 0.8579 | 488.1 | 999999 | |
| 0.36 | 1.91 | 0.37 | 1.95 | -23.30 | 260.25 | -56.63 | 118.73 | 0.8767 | -498.0 | -459.1 | |
| 0.00 | 0.73 | 0.00 | 0.76 | -23.90 | 259.66 | -57.23 | 119.20 | 0.8825 | -526.0 | -430.8 | |
| 0.00 | 1.18 | 0.00 | 1.21 | -23.11 | 260.07 | -56.81 | 118.47 | 0.8775 | -574.0 | -483.5 | |
| 0.00 | 0.82 | 0.00 | 0.85 | -23.46 | 259.65 | -57.23 | 118.72 | 0.8815 | -491.0 | -412.8 | |
| 1.36 | -2.00 | 1.35 | -2.00 | -21.08 | 260.61 | -56.27 | 116.40 | 0.8684 | -895.1 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.59 | -21.94 | 259.97 | -56.91 | 117.16 | 0.8754 | -636.0 | -531.4 | |
| 1.09 | -2.00 | 1.06 | -2.00 | -20.00 | 261.04 | -55.84 | 115.34 | 0.8624 | 79.8 | 999999 | |
| 12.54 | -2.00 | 12.61 | -2.00 | -21.23 | 260.16 | -56.72 | 116.44 | 0.8722 | -677.4 | 999999 | |
| 3.09 | 6.72 | 3.18 | 6.92 | -21.86 | 259.47 | -57.41 | 116.92 | 0.8789 | -286.7 | -272.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -22.38 | 259.01 | -57.87 | 117.35 | 0.8835 | -140.0 | -169.7 | |
| 0.00 | 1.00 | 0.00 | 1.01 | -20.35 | 259.84 | -57.04 | 115.37 | 0.8726 | -243.0 | -335.3 | |
| 1.09 | -2.00 | 1.14 | -2.00 | -21.59 | 258.84 | -58.04 | 116.44 | 0.8830 | 235.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.29 | -20.43 | 259.55 | -57.33 | 115.37 | 0.8750 | -647.0 | -527.8 | |
| 0.82 | 1.91 | 0.89 | 2.07 | -22.13 | 257.78 | -59.10 | 116.73 | 0.8918 | 486.8 | 456.0 | |
| 0.00 | 1.09 | 0.00 | 1.28 | -23.10 | 255.73 | -61.15 | 117.21 | 0.9076 | -450.0 | -365.2 | |
| 0.00 | 1.27 | 0.00 | 1.40 | -20.97 | 257.07 | -59.81 | 115.27 | 0.8944 | 276.0 | 220.6 | |
| 0.00 | 1.36 | 0.00 | 1.60 | -22.94 | 255.58 | -61.30 | 117.00 | 0.9083 | -351.0 | -266.5 | |
| 0.00 | 0.91 | 0.00 | 1.09 | -22.63 | 254.91 | -61.97 | 116.50 | 0.9121 | -208.0 | -163.1 | |
| 54.97 | 312.19 | 59.54 | 340.17 | -19.10 | 257.03 | -59.86 | 113.23 | 0.8911 | 717.1 | 142.4 | |
| 0.00 | 1.00 | 0.00 | 1.22 | -22.29 | 254.32 | -62.56 | 115.99 | 0.9153 | -231.0 | -204.0 | |
| 0.00 | 0.91 | 0.00 | 1.08 | -21.21 | 254.73 | -62.15 | 114.94 | 0.9108 | 266.0 | 216.1 | |
| 2.63 | 6.00 | 3.13 | 7.10 | -20.81 | 254.67 | -62.22 | 114.50 | 0.9105 | 355.2 | 255.8 | |
| 0.00 | 0.64 | 0.00 | 0.72 | -18.20 | 255.25 | -61.63 | 111.82 | 0.9022 | 180.0 | 137.9 | |
| 0.00 | 1.36 | 0.00 | 1.60 | -18.37 | 254.38 | -62.50 | 111.81 | 0.9085 | -420.0 | -338.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
