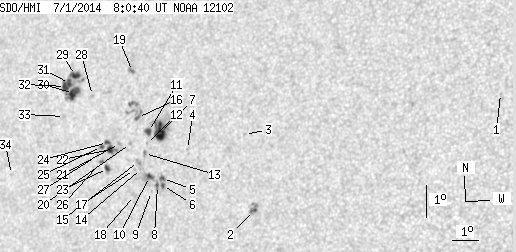

SDO HMI 2014-07-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.21 | 161.30 | 36.10 | 106.39 | 13.17 | 275.94 | -40.40 | 73.23 | 0.6608 | 37.6 | -119.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.74 | 289.74 | -26.59 | 64.08 | 0.4832 | -633.0 | -466.9 | |
| 1.54 | 7.00 | 0.94 | 4.27 | 10.90 | 281.28 | -35.06 | 75.26 | 0.5854 | -949.2 | -763.1 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 13.24 | 280.54 | -35.79 | 71.65 | 0.6020 | -562.0 | -459.9 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 12.71 | 278.40 | -37.94 | 73.22 | 0.6287 | -473.0 | -363.7 | |
| 1.45 | 19.81 | 0.93 | 12.76 | 11.79 | 277.56 | -38.78 | 74.90 | 0.6373 | -913.8 | -291.3 | |
| 1.18 | -5.00 | 0.76 | -5.00 | 11.57 | 277.59 | -38.74 | 75.22 | 0.6363 | -898.6 | 999999 | |
| 12.81 | 36.80 | 8.29 | 23.83 | 13.20 | 277.22 | -39.11 | 72.81 | 0.6451 | -947.9 | -515.8 | |
| 0.64 | -5.00 | 0.41 | -5.00 | 11.56 | 277.39 | -38.94 | 75.28 | 0.6389 | -598.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 11.37 | 277.18 | -39.15 | 75.63 | 0.6412 | -408.0 | -260.5 | |
| 2.45 | -5.00 | 1.58 | -5.00 | 11.83 | 277.03 | -39.31 | 74.97 | 0.6443 | -604.8 | 999999 | |
| 2.54 | -7.00 | 1.66 | -7.00 | 13.22 | 276.73 | -39.60 | 72.93 | 0.6514 | -655.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 12.84 | 276.72 | -39.61 | 73.50 | 0.6506 | -524.0 | -452.2 | |
| 0.00 | 2.18 | 0.00 | 1.42 | 12.53 | 276.70 | -39.64 | 73.98 | 0.6501 | -639.0 | -481.0 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 12.07 | 276.66 | -39.67 | 74.70 | 0.6495 | -287.0 | -272.0 | |
| 0.00 | 3.18 | 0.00 | 2.07 | 12.28 | 276.50 | -39.83 | 74.42 | 0.6520 | -468.0 | -334.5 | |
| 1.09 | 16.08 | 0.72 | 10.60 | 13.64 | 276.20 | -40.14 | 72.46 | 0.6592 | -764.9 | -547.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 12.03 | 276.38 | -39.95 | 74.83 | 0.6530 | 322.0 | 289.1 | |
| 0.00 | 2.82 | 0.00 | 1.83 | 11.23 | 276.52 | -39.81 | 76.01 | 0.6495 | 256.0 | 158.4 | |
| 0.82 | 2.82 | 0.54 | 1.88 | 15.06 | 275.68 | -40.65 | 70.52 | 0.6695 | -753.8 | -546.1 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 12.82 | 276.07 | -40.26 | 73.71 | 0.6588 | -447.0 | -313.1 | |
| 0.00 | 1.91 | 0.00 | 1.26 | 12.81 | 275.62 | -40.71 | 73.85 | 0.6644 | 427.0 | 381.0 | |
| 3.63 | 11.63 | 2.41 | 7.74 | 12.61 | 275.29 | -41.05 | 74.23 | 0.6682 | 962.1 | 745.6 | |
| 2.09 | 4.00 | 1.39 | 2.65 | 12.02 | 275.27 | -41.06 | 75.11 | 0.6671 | 815.8 | 561.8 | |
| 1.36 | -22.00 | 0.91 | -22.00 | 12.83 | 275.12 | -41.21 | 73.96 | 0.6707 | 919.5 | 999999 | |
| 1.09 | -22.00 | 0.73 | -22.00 | 12.70 | 274.90 | -41.44 | 74.21 | 0.6732 | 743.9 | 999999 | |
| 0.45 | 1.73 | 0.30 | 1.15 | 12.23 | 274.99 | -41.35 | 74.87 | 0.6711 | 741.6 | 578.3 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 12.41 | 274.78 | -41.55 | 74.65 | 0.6740 | 521.0 | 418.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 14.26 | 274.18 | -42.15 | 72.13 | 0.6857 | 754.0 | 453.7 | |
| 4.54 | 38.89 | 3.13 | 26.81 | 14.86 | 273.31 | -43.03 | 71.52 | 0.6977 | 735.3 | 556.9 | |
| 8.90 | -29.00 | 6.12 | -29.00 | 14.30 | 273.36 | -42.98 | 72.30 | 0.6957 | 928.7 | 999999 | |
| 3.09 | -29.00 | 2.13 | -29.00 | 14.60 | 273.11 | -43.22 | 71.94 | 0.6994 | 775.7 | 999999 | |
| 4.54 | -29.00 | 3.15 | -29.00 | 14.50 | 272.96 | -43.37 | 72.11 | 0.7009 | 571.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 13.57 | 273.14 | -43.20 | 73.38 | 0.6967 | 516.0 | 437.7 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 11.71 | 271.23 | -45.11 | 76.41 | 0.7160 | 572.0 | 470.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
