SDO HMI 2014-07-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 8.64 | 4.09 | 19.83 | -8.65 | 239.39 | -76.94 | 99.52 | 0.9771 | 89.9 | 105.2 | |
|
previous
or next observation for the same group /

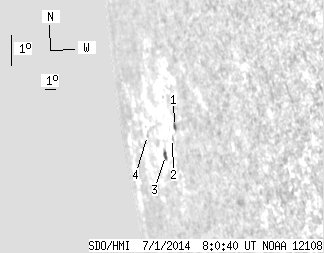

back to the solar disc SDO HMI 2014-07-01 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 5.56 | -8.07 | 240.93 | -75.41 | 99.06 | 0.9713 | 440.0 | 332.7 | |
| 0.00 | 1.00 | 0.00 | 2.11 | -8.47 | 240.44 | -75.89 | 99.43 | 0.9734 | 206.0 | 146.2 | |
| 1.73 | 3.91 | 4.09 | 9.24 | -9.06 | 239.10 | -77.24 | 99.91 | 0.9786 | 64.3 | 32.2 | |
| 0.00 | 1.00 | 0.00 | 2.92 | -8.57 | 236.64 | -79.69 | 99.21 | 0.9863 | -272.0 | -228.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
