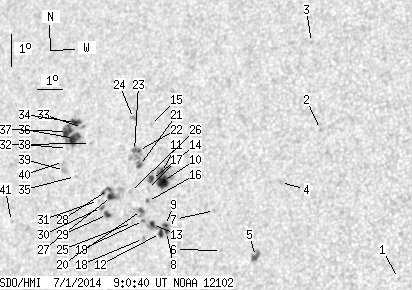

SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.40 | 172.62 | 40.33 | 112.75 | 13.16 | 276.04 | -39.74 | 73.06 | 0.6526 | -70.5 | -109.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.42 | 10.37 | 286.52 | -29.27 | 74.16 | 0.5019 | -668.0 | -519.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 14.91 | 283.06 | -32.72 | 67.55 | 0.5674 | -722.0 | -492.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.62 | 282.21 | -33.58 | 63.56 | 0.5909 | -564.0 | -487.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 13.22 | 281.83 | -33.95 | 70.96 | 0.5774 | -733.0 | -606.2 | |
| 2.63 | 6.54 | 1.60 | 3.97 | 10.92 | 281.22 | -34.57 | 75.09 | 0.5786 | -927.1 | -753.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 11.07 | 279.91 | -35.88 | 75.24 | 0.5970 | -661.0 | -560.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 12.29 | 279.45 | -36.34 | 73.38 | 0.6064 | -673.0 | -570.0 | |
| 1.18 | 19.35 | 0.75 | 12.35 | 11.59 | 277.68 | -38.11 | 75.02 | 0.6280 | -1011.6 | -436.6 | |
| 1.18 | -8.00 | 0.75 | -8.00 | 11.77 | 277.61 | -38.18 | 74.76 | 0.6294 | -852.6 | 999999 | |
| 11.27 | 29.98 | 7.23 | 19.23 | 13.13 | 277.26 | -38.53 | 72.75 | 0.6375 | -970.3 | -537.8 | |
| 3.63 | -10.00 | 2.34 | -10.00 | 13.40 | 277.16 | -38.62 | 72.36 | 0.6394 | -745.5 | 999999 | |
| 2.73 | -8.00 | 1.74 | -8.00 | 11.52 | 277.45 | -38.33 | 75.19 | 0.6309 | -618.3 | 999999 | |
| 2.45 | -8.00 | 1.57 | -8.00 | 11.79 | 277.09 | -38.70 | 74.87 | 0.6362 | -629.9 | 999999 | |
| 2.63 | 4.45 | 1.70 | 2.88 | 13.18 | 276.80 | -38.98 | 72.82 | 0.6434 | -637.0 | -478.9 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 14.88 | 276.42 | -39.37 | 70.37 | 0.6532 | -554.0 | -489.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 12.49 | 276.77 | -39.02 | 73.88 | 0.6421 | -639.0 | -521.0 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 12.86 | 276.70 | -39.09 | 73.33 | 0.6439 | -466.0 | -387.1 | |
| 0.00 | 1.91 | 0.00 | 1.23 | 11.35 | 276.80 | -38.98 | 75.63 | 0.6390 | -435.0 | -232.0 | |
| 0.00 | 1.64 | 0.00 | 1.05 | 11.90 | 276.71 | -39.08 | 74.80 | 0.6414 | -177.0 | -56.5 | |
| 1.54 | 7.27 | 1.00 | 4.70 | 12.21 | 276.58 | -39.21 | 74.37 | 0.6439 | -460.4 | -94.0 | |
| 1.45 | 20.35 | 0.95 | 13.30 | 13.59 | 276.24 | -39.55 | 72.35 | 0.6517 | -712.1 | -516.5 | |
| 1.00 | -21.00 | 0.65 | -21.00 | 14.06 | 276.10 | -39.69 | 71.70 | 0.6547 | -695.5 | 999999 | |
| 1.18 | -21.00 | 0.77 | -21.00 | 14.05 | 275.94 | -39.85 | 71.76 | 0.6568 | -560.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.50 | 15.04 | 275.68 | -40.11 | 70.37 | 0.6628 | -706.0 | -608.0 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 11.83 | 276.28 | -39.51 | 75.03 | 0.6468 | 561.0 | 562.5 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 12.78 | 276.03 | -39.76 | 73.65 | 0.6523 | -321.0 | -285.6 | |
| 3.91 | 17.54 | 2.57 | 11.55 | 12.60 | 275.28 | -40.51 | 74.11 | 0.6613 | 970.0 | 561.5 | |
| 1.36 | -27.00 | 0.90 | -27.00 | 12.81 | 275.12 | -40.67 | 73.84 | 0.6639 | 950.4 | 999999 | |
| 2.63 | 4.45 | 1.73 | 2.93 | 12.04 | 275.22 | -40.57 | 74.97 | 0.6608 | 796.8 | 616.7 | |
| 0.91 | 2.09 | 0.60 | 1.38 | 12.25 | 274.93 | -40.85 | 74.73 | 0.6649 | 615.1 | 482.3 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 12.46 | 274.77 | -41.02 | 74.45 | 0.6674 | 463.0 | 400.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 14.21 | 274.07 | -41.72 | 72.08 | 0.6803 | 550.0 | 488.8 | |
| 0.00 | 2.27 | 0.00 | 1.54 | 14.70 | 273.62 | -42.17 | 71.51 | 0.6870 | 854.0 | 662.7 | |
| 3.91 | 31.62 | 2.67 | 21.62 | 14.84 | 273.28 | -42.50 | 71.40 | 0.6914 | 774.4 | 558.0 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 13.17 | 273.66 | -42.12 | 73.69 | 0.6828 | -507.0 | -416.2 | |
| 8.63 | -34.00 | 5.88 | -34.00 | 14.35 | 273.36 | -42.43 | 72.08 | 0.6892 | 937.6 | 999999 | |
| 7.18 | -34.00 | 4.93 | -34.00 | 14.55 | 273.01 | -42.78 | 71.88 | 0.6939 | 623.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 14.03 | 273.13 | -42.65 | 72.60 | 0.6912 | 210.0 | 244.0 | |
| 0.00 | 3.27 | 0.00 | 2.23 | 13.34 | 273.16 | -42.63 | 73.57 | 0.6893 | 581.0 | 504.0 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 13.62 | 273.05 | -42.73 | 73.20 | 0.6912 | 710.0 | 633.5 | |
| 0.00 | 0.45 | 0.00 | 0.32 | 11.69 | 271.21 | -44.58 | 76.33 | 0.7096 | 565.0 | 518.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
