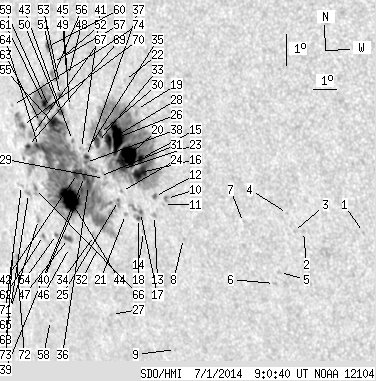

SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.47 | 1029.25 | 151.06 | 786.27 | -10.76 | 267.91 | -47.88 | 106.80 | 0.7632 | 378.5 | 211.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.58 | -12.62 | 279.20 | -36.59 | 113.91 | 0.6385 | 522.0 | 454.1 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -12.66 | 276.81 | -38.97 | 112.75 | 0.6677 | 610.0 | 476.8 | |
| 0.00 | 0.55 | 0.00 | 0.36 | -12.68 | 276.41 | -39.38 | 112.57 | 0.6726 | 497.0 | 516.3 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -12.11 | 276.27 | -39.52 | 111.71 | 0.6720 | 487.0 | 452.0 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -14.01 | 275.57 | -40.22 | 114.01 | 0.6882 | 618.0 | 539.8 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -14.36 | 275.28 | -40.51 | 114.37 | 0.6930 | 554.0 | 447.7 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -12.46 | 274.39 | -41.40 | 111.36 | 0.6956 | 470.0 | 409.2 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -13.06 | 271.70 | -44.09 | 111.06 | 0.7286 | 687.0 | 591.2 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -16.65 | 270.39 | -45.40 | 115.14 | 0.7558 | 448.0 | 451.9 | |
| 0.00 | 2.82 | 0.00 | 2.03 | -11.81 | 271.23 | -44.56 | 109.24 | 0.7297 | 779.0 | 713.5 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -12.01 | 271.06 | -44.73 | 109.44 | 0.7323 | 556.0 | 524.5 | |
| 1.09 | 2.27 | 0.79 | 1.65 | -11.77 | 270.71 | -45.08 | 109.00 | 0.7354 | 787.8 | 684.1 | |
| 0.00 | 2.27 | 0.00 | 1.66 | -12.37 | 270.58 | -45.21 | 109.74 | 0.7388 | 77.0 | 252.9 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -12.90 | 269.96 | -45.82 | 110.20 | 0.7472 | 552.0 | 421.7 | |
| 4.27 | 375.79 | 3.11 | 276.81 | -10.59 | 270.33 | -45.46 | 107.31 | 0.7362 | 1290.3 | 401.3 | |
| 14.54 | -15.00 | 10.64 | -15.00 | -11.03 | 270.24 | -45.55 | 107.87 | 0.7384 | 911.1 | 999999 | |
| 1.00 | 12.63 | 0.74 | 9.38 | -12.30 | 269.97 | -45.82 | 109.43 | 0.7453 | 660.1 | 517.2 | |
| 1.09 | -17.00 | 0.81 | -17.00 | -12.49 | 269.83 | -45.95 | 109.63 | 0.7474 | 621.9 | 999999 | |
| 0.00 | 4.91 | 0.00 | 3.55 | -9.06 | 270.42 | -45.36 | 105.30 | 0.7308 | 134.0 | 54.3 | |
| 31.80 | -15.00 | 23.43 | -15.00 | -10.55 | 269.75 | -46.03 | 107.07 | 0.7425 | 1056.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.23 | -12.39 | 269.27 | -46.52 | 109.30 | 0.7532 | 480.0 | 384.5 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -8.17 | 270.03 | -45.75 | 104.00 | 0.7331 | -610.0 | -460.4 | |
| 0.27 | -15.00 | 0.20 | -15.00 | -10.97 | 269.40 | -46.39 | 107.51 | 0.7476 | 567.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -11.66 | 269.25 | -46.54 | 108.36 | 0.7512 | 539.0 | 464.7 | |
| 0.55 | 522.43 | 0.41 | 408.38 | -11.96 | 269.05 | -46.74 | 108.67 | 0.7543 | 698.3 | 91.2 | |
| 26.35 | -15.00 | 19.49 | -15.00 | -9.97 | 269.42 | -46.37 | 106.21 | 0.7447 | 1024.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -15.63 | 267.73 | -48.06 | 112.83 | 0.7794 | 470.0 | 405.6 | |
| 8.09 | -15.00 | 6.03 | -15.00 | -10.08 | 268.99 | -46.80 | 106.22 | 0.7497 | 503.3 | 999999 | |
| 0.00 | 6.27 | 0.00 | 4.74 | -11.28 | 268.56 | -47.23 | 107.65 | 0.7577 | 556.0 | 460.1 | |
| 2.63 | -15.00 | 1.98 | -15.00 | -9.87 | 268.62 | -47.17 | 105.84 | 0.7533 | 515.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -11.23 | 268.34 | -47.45 | 107.51 | 0.7599 | 390.0 | 331.4 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -13.49 | 267.74 | -48.05 | 110.18 | 0.7727 | -549.0 | -520.8 | |
| 4.82 | -15.00 | 3.63 | -15.00 | -10.16 | 268.47 | -47.32 | 106.17 | 0.7557 | 430.1 | 999999 | |
| 0.00 | 3.00 | 0.00 | 2.33 | -13.11 | 267.65 | -48.14 | 109.68 | 0.7726 | -489.0 | -465.9 | |
| 0.00 | 3.73 | 0.00 | 2.83 | -10.30 | 268.07 | -47.71 | 106.24 | 0.7604 | 484.0 | 383.3 | |
| 8.18 | -25.00 | 6.29 | -25.00 | -11.53 | 267.76 | -48.03 | 107.72 | 0.7670 | -172.6 | 999999 | |
| 2.00 | -25.00 | 1.53 | -25.00 | -10.62 | 267.87 | -47.92 | 106.59 | 0.7634 | 654.6 | 999999 | |
| 0.82 | -25.00 | 0.63 | -25.00 | -10.81 | 267.78 | -48.01 | 106.81 | 0.7649 | 547.9 | 999999 | |
| 3.82 | -25.00 | 2.94 | -25.00 | -11.25 | 267.64 | -48.15 | 107.33 | 0.7676 | -79.5 | 999999 | |
| 1.73 | -25.00 | 1.34 | -25.00 | -11.70 | 267.39 | -48.40 | 107.82 | 0.7714 | -652.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.46 | -10.38 | 267.69 | -48.10 | 106.22 | 0.7648 | 485.0 | 450.6 | |
| 7.36 | -25.00 | 5.70 | -25.00 | -11.17 | 267.33 | -48.46 | 107.13 | 0.7707 | 160.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.26 | -10.14 | 267.31 | -48.47 | 105.82 | 0.7682 | 785.0 | 648.8 | |
| 32.71 | -25.00 | 25.72 | -25.00 | -11.98 | 266.76 | -49.03 | 107.98 | 0.7788 | -933.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -9.08 | 267.38 | -48.41 | 104.48 | 0.7650 | 691.0 | 570.7 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -13.54 | 266.34 | -49.45 | 109.79 | 0.7873 | -529.0 | -435.5 | |
| 3.09 | 5.18 | 2.47 | 4.13 | -13.26 | 266.37 | -49.42 | 109.45 | 0.7862 | -756.1 | -626.4 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -8.11 | 267.50 | -48.29 | 103.26 | 0.7615 | 810.0 | 722.1 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -7.96 | 267.43 | -48.35 | 103.05 | 0.7619 | 732.0 | 619.9 | |
| 2.91 | -25.00 | 2.25 | -25.00 | -9.25 | 266.93 | -48.86 | 104.58 | 0.7703 | 807.6 | 999999 | |
| 1.36 | 3.63 | 1.05 | 2.80 | -8.75 | 267.02 | -48.77 | 103.96 | 0.7682 | 656.5 | 537.0 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -7.59 | 267.21 | -48.58 | 102.52 | 0.7636 | 635.0 | 561.8 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -8.37 | 267.04 | -48.75 | 103.49 | 0.7672 | 639.0 | 590.9 | |
| 0.73 | 2.36 | 0.59 | 1.91 | -13.15 | 265.82 | -49.97 | 109.15 | 0.7915 | -568.4 | -433.6 | |
| 18.90 | -25.00 | 14.75 | -25.00 | -9.70 | 266.60 | -49.19 | 105.06 | 0.7748 | 892.4 | 999999 | |
| 0.00 | 6.91 | 0.00 | 5.33 | -8.14 | 266.79 | -48.99 | 103.12 | 0.7693 | 562.0 | 506.8 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -7.73 | 266.81 | -48.97 | 102.61 | 0.7683 | 471.0 | 403.7 | |
| 0.00 | 0.55 | 0.00 | 0.46 | -15.94 | 264.62 | -51.16 | 112.14 | 0.8108 | -613.0 | -517.8 | |
| 3.09 | -25.00 | 2.41 | -25.00 | -9.14 | 266.42 | -49.36 | 104.32 | 0.7755 | 590.0 | 999999 | |
| 2.09 | 4.54 | 1.61 | 3.50 | -7.24 | 266.65 | -49.13 | 101.94 | 0.7691 | 105.9 | 129.5 | |
| 2.91 | -25.00 | 2.28 | -25.00 | -9.03 | 266.21 | -49.58 | 104.12 | 0.7775 | 598.7 | 999999 | |
| 0.73 | 2.09 | 0.60 | 1.71 | -13.21 | 265.16 | -50.63 | 109.02 | 0.7983 | -564.9 | -463.6 | |
| 1.45 | -25.00 | 1.15 | -25.00 | -9.63 | 265.90 | -49.89 | 104.80 | 0.7821 | 533.8 | 999999 | |
| 3.27 | -25.00 | 2.61 | -25.00 | -10.39 | 265.64 | -50.15 | 105.68 | 0.7866 | 469.1 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.08 | -12.71 | 265.05 | -50.73 | 108.38 | 0.7980 | -518.0 | -457.9 | |
| 0.55 | 5.09 | 0.44 | 4.13 | -11.73 | 265.17 | -50.62 | 107.21 | 0.7945 | -543.3 | -423.5 | |
| 0.00 | 5.18 | 0.00 | 4.15 | -10.06 | 265.37 | -50.42 | 105.20 | 0.7886 | 396.0 | 382.6 | |
| 0.00 | 3.54 | 0.00 | 2.90 | -11.90 | 264.78 | -51.01 | 107.31 | 0.7988 | -405.0 | -300.0 | |
| 2.00 | -25.00 | 1.61 | -25.00 | -10.41 | 265.09 | -50.69 | 105.57 | 0.7922 | 314.0 | 999999 | |
| 2.27 | 14.90 | 1.83 | 12.06 | -9.76 | 264.99 | -50.80 | 104.73 | 0.7919 | 684.8 | 430.8 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -11.66 | 264.49 | -51.30 | 106.94 | 0.8012 | -281.0 | -215.7 | |
| 0.00 | 4.54 | 0.00 | 3.87 | -14.00 | 263.55 | -52.24 | 109.50 | 0.8159 | -618.0 | -522.9 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -13.59 | 263.53 | -52.26 | 109.01 | 0.8151 | -302.0 | -213.4 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -9.15 | 264.63 | -51.16 | 103.89 | 0.7944 | 321.0 | 256.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
