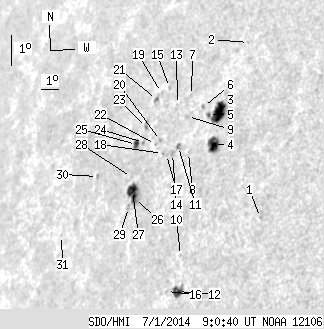

SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.61 | 110.37 | 48.79 | 99.87 | 14.51 | 259.41 | -56.38 | 74.51 | 0.8383 | -349.0 | -25.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.72 | 12.88 | 264.56 | -51.22 | 75.83 | 0.7860 | -684.0 | -574.5 | |
| 0.00 | 0.82 | 0.00 | 0.70 | 18.29 | 261.96 | -53.82 | 69.59 | 0.8199 | -523.0 | -451.3 | |
| 18.35 | 24.53 | 15.91 | 21.29 | 16.05 | 261.28 | -54.51 | 72.42 | 0.8229 | -687.0 | -288.6 | |
| 11.54 | 15.26 | 9.95 | 13.16 | 15.04 | 261.40 | -54.39 | 73.62 | 0.8205 | -678.0 | -382.3 | |
| 0.91 | -3.00 | 0.80 | -3.00 | 15.96 | 260.76 | -55.03 | 72.60 | 0.8277 | -163.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.53 | 16.20 | 260.38 | -55.40 | 72.38 | 0.8315 | -272.0 | -182.6 | |
| 0.00 | 1.27 | 0.00 | 1.15 | 16.52 | 259.56 | -56.22 | 72.13 | 0.8394 | -233.0 | -142.9 | |
| 0.00 | 0.73 | 0.00 | 0.65 | 14.74 | 260.13 | -55.66 | 74.16 | 0.8322 | -409.0 | -309.5 | |
| 0.00 | 2.00 | 0.00 | 1.81 | 15.85 | 259.62 | -56.17 | 72.90 | 0.8381 | 304.0 | 298.1 | |
| 0.00 | 0.91 | 0.00 | 0.79 | 11.56 | 260.76 | -55.03 | 77.93 | 0.8231 | -316.0 | -245.5 | |
| 0.00 | 2.36 | 0.00 | 2.13 | 14.91 | 259.50 | -56.29 | 74.05 | 0.8382 | -231.0 | -99.6 | |
| 6.27 | 9.81 | 5.41 | 8.46 | 10.45 | 260.90 | -54.88 | 79.26 | 0.8209 | -586.1 | -392.5 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 16.20 | 258.89 | -56.90 | 72.59 | 0.8451 | -257.0 | -271.0 | |
| 0.00 | 3.45 | 0.00 | 3.14 | 14.68 | 259.24 | -56.54 | 74.35 | 0.8403 | 441.0 | 443.5 | |
| 0.00 | 1.45 | 0.00 | 1.37 | 16.71 | 258.18 | -57.61 | 72.10 | 0.8519 | 560.0 | 444.9 | |
| 0.00 | 0.45 | 0.00 | 0.40 | 10.42 | 260.31 | -55.48 | 79.34 | 0.8267 | -161.0 | -83.8 | |
| 0.00 | 1.45 | 0.00 | 1.33 | 14.63 | 258.91 | -56.87 | 74.45 | 0.8432 | 539.0 | 422.4 | |
| 0.00 | 1.18 | 0.00 | 1.09 | 14.65 | 258.67 | -57.12 | 74.45 | 0.8454 | 566.0 | 516.4 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 16.54 | 257.78 | -58.00 | 72.35 | 0.8552 | 402.0 | 352.9 | |
| 0.00 | 1.36 | 0.00 | 1.27 | 15.05 | 258.39 | -57.40 | 74.02 | 0.8483 | 555.0 | 470.5 | |
| 0.82 | 2.63 | 0.78 | 2.51 | 16.31 | 257.59 | -58.20 | 72.65 | 0.8566 | 473.1 | 331.4 | |
| 0.00 | 1.09 | 0.00 | 1.02 | 14.91 | 258.15 | -57.64 | 74.20 | 0.8503 | 653.0 | 521.4 | |
| 0.64 | 4.18 | 0.61 | 4.00 | 15.42 | 257.39 | -58.40 | 73.71 | 0.8574 | 428.3 | 311.4 | |
| 0.00 | 1.18 | 0.00 | 1.13 | 14.95 | 257.42 | -58.37 | 74.25 | 0.8568 | 374.0 | 394.6 | |
| 3.27 | 5.00 | 3.16 | 4.82 | 14.87 | 257.02 | -58.76 | 74.39 | 0.8601 | 592.4 | 468.5 | |
| 4.00 | 20.44 | 3.78 | 19.38 | 13.20 | 257.58 | -58.20 | 76.27 | 0.8538 | -733.6 | -362.6 | |
| 8.81 | -26.00 | 8.39 | -26.00 | 13.44 | 257.37 | -58.42 | 76.01 | 0.8559 | -554.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.04 | 13.84 | 257.15 | -58.63 | 75.57 | 0.8581 | 241.0 | 185.5 | |
| 0.00 | 2.18 | 0.00 | 2.08 | 12.91 | 257.33 | -58.45 | 76.64 | 0.8558 | -451.0 | -333.6 | |
| 0.00 | 1.73 | 0.00 | 1.76 | 13.78 | 255.05 | -60.74 | 75.83 | 0.8758 | -357.0 | -307.9 | |
| 0.00 | 0.27 | 0.00 | 0.29 | 11.87 | 253.46 | -62.32 | 78.11 | 0.8875 | 457.0 | 452.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
