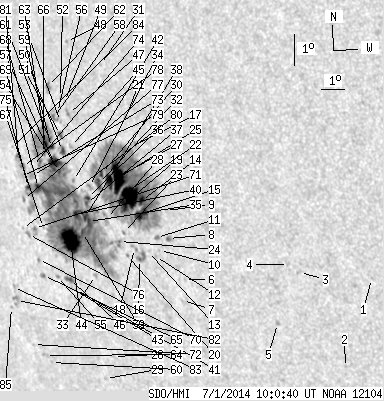

SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 179.80 | 1049.57 | 135.14 | 793.82 | -10.78 | 267.78 | -47.46 | 106.94 | 0.7586 | 379.2 | 202.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.46 | -12.79 | 279.36 | -35.88 | 114.55 | 0.6306 | 636.0 | 567.1 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -15.67 | 277.79 | -37.45 | 117.78 | 0.6641 | 504.0 | 471.5 | |
| 0.00 | 2.00 | 0.00 | 1.32 | -12.69 | 276.54 | -38.70 | 112.91 | 0.6645 | 564.0 | 470.4 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -12.45 | 276.14 | -39.10 | 112.38 | 0.6682 | 558.0 | 437.5 | |
| 0.00 | 2.27 | 0.00 | 1.54 | -14.34 | 275.32 | -39.92 | 114.63 | 0.6862 | 577.0 | 441.6 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -13.07 | 271.67 | -43.57 | 111.29 | 0.7228 | 683.0 | 527.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -13.74 | 271.43 | -43.81 | 112.08 | 0.7279 | 462.0 | 514.0 | |
| 0.82 | 3.00 | 0.58 | 2.14 | -11.79 | 271.25 | -43.99 | 109.42 | 0.7231 | 829.2 | 698.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -10.91 | 271.29 | -43.94 | 108.26 | 0.7198 | 671.0 | 600.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -12.19 | 270.78 | -44.46 | 109.77 | 0.7298 | 557.0 | 479.2 | |
| 0.73 | 2.45 | 0.52 | 1.77 | -11.78 | 270.73 | -44.51 | 109.21 | 0.7290 | 791.8 | 692.9 | |
| 0.00 | 1.82 | 0.00 | 1.32 | -12.38 | 270.56 | -44.68 | 109.95 | 0.7329 | 297.0 | 252.4 | |
| 0.00 | 1.91 | 0.00 | 1.39 | -12.24 | 270.28 | -44.96 | 109.65 | 0.7355 | 613.0 | 390.5 | |
| 4.09 | 377.95 | 2.95 | 275.56 | -10.63 | 270.30 | -44.94 | 107.54 | 0.7304 | 1239.1 | 407.2 | |
| 11.54 | -14.00 | 8.37 | -14.00 | -11.04 | 270.22 | -45.02 | 108.06 | 0.7325 | 930.2 | 999999 | |
| 0.82 | 7.27 | 0.60 | 5.33 | -12.50 | 269.82 | -45.42 | 109.84 | 0.7415 | 621.7 | 533.3 | |
| 0.00 | 2.09 | 0.00 | 1.50 | -8.88 | 270.34 | -44.90 | 105.21 | 0.7250 | 88.0 | 29.3 | |
| 0.00 | 2.36 | 0.00 | 1.74 | -12.16 | 269.67 | -45.57 | 109.34 | 0.7421 | 635.0 | 557.8 | |
| 27.71 | -14.00 | 20.21 | -14.00 | -10.59 | 269.82 | -45.42 | 107.32 | 0.7356 | 1036.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -12.40 | 269.31 | -45.93 | 109.52 | 0.7468 | 468.0 | 393.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -8.06 | 270.03 | -45.21 | 104.00 | 0.7265 | -423.0 | -389.8 | |
| 7.72 | -14.00 | 5.65 | -14.00 | -10.44 | 269.58 | -45.65 | 107.05 | 0.7379 | 918.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -11.67 | 269.29 | -45.95 | 108.57 | 0.7448 | 556.0 | 444.8 | |
| 0.45 | 536.68 | 0.34 | 414.74 | -11.97 | 269.04 | -46.20 | 108.87 | 0.7484 | 773.2 | 91.1 | |
| 27.26 | -14.00 | 19.96 | -14.00 | -9.95 | 269.41 | -45.83 | 106.35 | 0.7385 | 1019.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -15.67 | 267.78 | -47.46 | 113.10 | 0.7735 | 327.0 | 332.1 | |
| 8.72 | -14.00 | 6.44 | -14.00 | -10.09 | 268.98 | -46.26 | 106.40 | 0.7437 | 504.2 | 999999 | |
| 0.00 | 5.91 | 0.00 | 4.42 | -11.26 | 268.61 | -46.63 | 107.81 | 0.7511 | 648.0 | 454.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -16.40 | 267.17 | -48.07 | 113.77 | 0.7821 | 497.0 | 447.3 | |
| 2.36 | -14.00 | 1.75 | -14.00 | -9.85 | 268.66 | -46.57 | 105.99 | 0.7466 | 404.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -6.45 | 269.14 | -46.10 | 101.60 | 0.7332 | 453.0 | 385.2 | |
| 5.09 | -14.00 | 3.79 | -14.00 | -10.17 | 268.47 | -46.77 | 106.35 | 0.7497 | 408.5 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.61 | -13.09 | 267.67 | -47.57 | 109.84 | 0.7665 | -508.0 | -376.6 | |
| 0.00 | 2.82 | 0.00 | 2.12 | -10.28 | 268.04 | -47.20 | 106.36 | 0.7547 | 420.0 | 400.3 | |
| 0.91 | -24.00 | 0.69 | -24.00 | -11.38 | 267.76 | -47.48 | 107.70 | 0.7608 | 243.2 | 999999 | |
| 2.09 | -24.00 | 1.58 | -24.00 | -10.63 | 267.87 | -47.37 | 106.77 | 0.7574 | 639.9 | 999999 | |
| 1.45 | -24.00 | 1.10 | -24.00 | -10.82 | 267.79 | -47.45 | 106.99 | 0.7589 | 556.4 | 999999 | |
| 1.36 | -24.00 | 1.04 | -24.00 | -11.27 | 267.60 | -47.64 | 107.50 | 0.7621 | -330.7 | 999999 | |
| 1.36 | -24.00 | 1.05 | -24.00 | -11.74 | 267.40 | -47.84 | 108.05 | 0.7656 | -717.2 | 999999 | |
| 3.18 | -24.00 | 2.44 | -24.00 | -11.19 | 267.20 | -48.04 | 107.28 | 0.7662 | 401.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -13.57 | 266.60 | -48.64 | 110.09 | 0.7791 | -490.0 | -412.8 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -10.12 | 267.33 | -47.91 | 105.95 | 0.7621 | 700.0 | 616.8 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -13.55 | 266.41 | -48.82 | 110.00 | 0.7810 | -442.0 | -427.8 | |
| 31.07 | -24.00 | 24.15 | -24.00 | -12.02 | 266.77 | -48.47 | 108.20 | 0.7730 | -944.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.51 | -9.05 | 267.39 | -47.85 | 104.60 | 0.7588 | 695.0 | 585.0 | |
| 2.73 | 4.54 | 2.15 | 3.58 | -13.27 | 266.40 | -48.84 | 109.64 | 0.7803 | -765.1 | -642.0 | |
| 0.00 | 3.54 | 0.00 | 2.67 | -8.03 | 267.47 | -47.76 | 103.28 | 0.7556 | 751.0 | 655.7 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -5.79 | 267.69 | -47.55 | 100.40 | 0.7487 | -449.0 | -353.5 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -7.66 | 267.35 | -47.89 | 102.77 | 0.7562 | 717.0 | 604.3 | |
| 3.00 | 6.36 | 2.29 | 4.86 | -9.19 | 267.00 | -48.24 | 104.67 | 0.7635 | 763.2 | 565.2 | |
| 1.82 | 3.82 | 1.39 | 2.91 | -8.70 | 266.99 | -48.25 | 104.03 | 0.7624 | 593.6 | 484.5 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -7.54 | 267.18 | -48.06 | 102.58 | 0.7578 | 575.0 | 535.1 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -8.29 | 267.06 | -48.18 | 103.52 | 0.7607 | 729.0 | 633.6 | |
| 1.36 | -24.00 | 1.05 | -24.00 | -9.86 | 266.73 | -48.51 | 105.45 | 0.7679 | 985.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.30 | -13.19 | 265.84 | -49.40 | 109.37 | 0.7858 | -648.0 | -520.7 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -8.01 | 266.97 | -48.27 | 103.14 | 0.7612 | 635.0 | 525.8 | |
| 11.90 | -24.00 | 9.19 | -24.00 | -9.62 | 266.54 | -48.70 | 105.09 | 0.7694 | 900.9 | 999999 | |
| 1.00 | 5.81 | 0.76 | 4.44 | -8.18 | 266.75 | -48.48 | 103.30 | 0.7639 | 482.2 | 476.4 | |
| 2.09 | -24.00 | 1.61 | -24.00 | -9.12 | 266.50 | -48.74 | 104.45 | 0.7687 | 648.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.68 | -15.98 | 264.67 | -50.57 | 112.38 | 0.8053 | -591.0 | -542.2 | |
| 1.18 | -24.00 | 0.91 | -24.00 | -8.87 | 266.45 | -48.79 | 104.12 | 0.7687 | 754.0 | 999999 | |
| 1.54 | 5.45 | 1.18 | 4.16 | -7.22 | 266.62 | -48.61 | 102.04 | 0.7633 | 106.6 | 158.6 | |
| 2.73 | -24.00 | 2.11 | -24.00 | -9.04 | 266.23 | -49.01 | 104.27 | 0.7715 | 643.9 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.65 | -15.76 | 264.44 | -50.80 | 112.05 | 0.8068 | -598.0 | -468.7 | |
| 0.64 | 2.36 | 0.51 | 1.91 | -13.19 | 265.16 | -50.08 | 109.16 | 0.7927 | -618.4 | -554.4 | |
| 1.09 | -24.00 | 0.85 | -24.00 | -9.32 | 266.08 | -49.16 | 104.60 | 0.7737 | 408.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.01 | -11.66 | 265.57 | -49.67 | 107.39 | 0.7846 | -301.0 | -232.8 | |
| 1.09 | -24.00 | 0.85 | -24.00 | -9.55 | 265.84 | -49.40 | 104.82 | 0.7767 | 502.0 | 999999 | |
| 3.54 | -24.00 | 2.80 | -24.00 | -10.40 | 265.62 | -49.62 | 105.84 | 0.7811 | 407.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.32 | -12.68 | 265.05 | -50.18 | 108.51 | 0.7925 | -525.0 | -453.8 | |
| 0.45 | 4.63 | 0.36 | 3.72 | -11.71 | 265.12 | -50.12 | 107.32 | 0.7894 | -606.2 | -476.7 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -15.43 | 263.95 | -51.29 | 111.49 | 0.8106 | -611.0 | -539.5 | |
| 0.00 | 5.27 | 0.00 | 4.17 | -10.03 | 265.41 | -49.83 | 105.32 | 0.7824 | 359.0 | 337.7 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -9.75 | 265.47 | -49.77 | 104.98 | 0.7812 | 320.0 | 346.2 | |
| 2.09 | -24.00 | 1.67 | -24.00 | -10.42 | 265.13 | -50.11 | 105.73 | 0.7862 | 203.5 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.84 | -11.91 | 264.77 | -50.47 | 107.47 | 0.7934 | -404.0 | -349.4 | |
| 0.00 | 1.82 | 0.00 | 1.46 | -10.81 | 264.80 | -50.44 | 106.12 | 0.7905 | 437.0 | 285.4 | |
| 1.73 | 8.63 | 1.38 | 6.90 | -9.77 | 264.98 | -50.26 | 104.88 | 0.7863 | 688.4 | 531.9 | |
| 0.00 | 1.91 | 0.00 | 1.53 | -10.05 | 264.92 | -50.32 | 105.22 | 0.7876 | 276.0 | 255.2 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -11.73 | 264.52 | -50.72 | 107.18 | 0.7955 | -251.0 | -183.2 | |
| 1.09 | -78.00 | 0.87 | -78.00 | -9.46 | 264.85 | -50.39 | 104.46 | 0.7870 | 668.9 | 999999 | |
| 0.00 | 5.27 | 0.00 | 4.44 | -14.04 | 263.55 | -51.69 | 109.71 | 0.8108 | -599.0 | -505.7 | |
| 0.00 | 1.64 | 0.00 | 1.37 | -13.63 | 263.53 | -51.71 | 109.21 | 0.8100 | -277.0 | -297.2 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -9.16 | 264.62 | -50.62 | 104.03 | 0.7888 | 344.0 | 316.6 | |
| 0.00 | 0.73 | 0.00 | 0.62 | -14.28 | 263.22 | -52.02 | 109.90 | 0.8145 | -487.0 | -404.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
