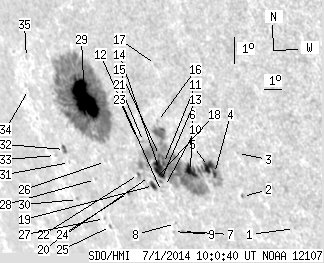

SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.86 | 606.01 | 94.34 | 604.72 | -19.97 | 258.64 | -56.60 | 115.13 | 0.8681 | 313.6 | 7.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.54 | -22.97 | 266.55 | -48.69 | 121.30 | 0.8115 | 549.0 | 455.9 | |
| 0.00 | 1.36 | 0.00 | 1.19 | -21.98 | 264.37 | -50.87 | 119.28 | 0.8269 | 430.0 | 437.1 | |
| 0.00 | 0.55 | 0.00 | 0.47 | -20.53 | 264.80 | -50.44 | 117.79 | 0.8182 | -279.0 | -278.7 | |
| 2.27 | 227.59 | 2.03 | 213.26 | -21.26 | 263.25 | -51.99 | 118.04 | 0.8341 | 748.7 | -209.7 | |
| 8.72 | -4.00 | 7.81 | -4.00 | -21.03 | 263.04 | -52.20 | 117.71 | 0.8351 | 743.8 | 999999 | |
| 8.99 | -4.00 | 8.27 | -4.00 | -21.25 | 261.95 | -53.28 | 117.57 | 0.8449 | 522.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.42 | -23.32 | 260.31 | -54.93 | 119.32 | 0.8640 | -577.0 | -460.7 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -23.07 | 260.06 | -55.17 | 118.95 | 0.8651 | -557.0 | -499.2 | |
| 0.00 | 0.55 | 0.00 | 0.54 | -23.35 | 259.77 | -55.47 | 119.17 | 0.8682 | -528.0 | -491.5 | |
| 0.00 | 2.82 | 0.00 | 2.72 | -21.82 | 260.17 | -55.07 | 117.61 | 0.8609 | -357.0 | -375.4 | |
| 1.18 | -4.00 | 1.12 | -4.00 | -21.04 | 260.56 | -54.68 | 116.87 | 0.8558 | -835.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.44 | -22.00 | 259.89 | -55.35 | 117.72 | 0.8636 | -526.0 | -501.2 | |
| 0.55 | -4.00 | 0.53 | -4.00 | -21.66 | 260.03 | -55.21 | 117.39 | 0.8616 | -466.0 | 999999 | |
| 12.27 | -4.00 | 11.80 | -4.00 | -21.25 | 260.21 | -55.03 | 116.99 | 0.8591 | -682.5 | 999999 | |
| 1.09 | -4.00 | 1.04 | -4.00 | -20.78 | 260.47 | -54.77 | 116.55 | 0.8557 | -704.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.35 | -19.64 | 260.95 | -54.28 | 115.42 | 0.8487 | 424.0 | 343.1 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -17.74 | 261.73 | -53.51 | 113.51 | 0.8371 | 490.0 | 339.1 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -21.61 | 259.72 | -55.52 | 117.23 | 0.8639 | -471.0 | -308.8 | |
| 3.09 | 6.36 | 3.04 | 6.27 | -21.81 | 259.53 | -55.70 | 117.40 | 0.8659 | -300.2 | -76.9 | |
| 0.00 | 0.55 | 0.00 | 0.54 | -21.52 | 259.48 | -55.76 | 117.05 | 0.8656 | -256.0 | -266.2 | |
| 0.00 | 1.54 | 0.00 | 1.49 | -20.34 | 259.79 | -55.45 | 115.85 | 0.8601 | -655.0 | -470.5 | |
| 0.91 | -4.00 | 0.91 | -4.00 | -21.48 | 258.85 | -56.39 | 116.81 | 0.8703 | 265.9 | 999999 | |
| 0.00 | 3.09 | 0.00 | 3.01 | -20.29 | 259.47 | -55.77 | 115.69 | 0.8625 | -290.0 | -335.9 | |
| 0.73 | 1.91 | 0.75 | 1.97 | -22.12 | 257.84 | -57.40 | 117.22 | 0.8795 | 416.9 | 417.2 | |
| 0.00 | 1.54 | 0.00 | 1.71 | -23.35 | 255.85 | -59.39 | 117.97 | 0.8964 | -367.0 | -328.8 | |
| 0.00 | 0.91 | 0.00 | 0.95 | -21.13 | 257.05 | -58.19 | 115.90 | 0.8830 | 346.0 | 226.8 | |
| 0.00 | 1.18 | 0.00 | 1.31 | -23.09 | 255.65 | -59.59 | 117.63 | 0.8973 | -215.0 | -168.1 | |
| 0.00 | 0.55 | 0.00 | 0.59 | -21.77 | 255.99 | -59.24 | 116.30 | 0.8921 | 336.0 | 261.3 | |
| 52.70 | 340.25 | 54.38 | 352.79 | -19.09 | 256.97 | -58.27 | 113.63 | 0.8793 | 702.2 | 152.5 | |
| 0.00 | 0.91 | 0.00 | 1.05 | -22.52 | 254.26 | -60.98 | 116.64 | 0.9054 | -508.0 | -348.8 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -21.27 | 254.63 | -60.61 | 115.39 | 0.9006 | 327.0 | 350.7 | |
| 2.36 | 4.00 | 2.66 | 4.51 | -20.84 | 254.59 | -60.65 | 114.92 | 0.9000 | 416.6 | 275.7 | |
| 0.00 | 1.00 | 0.00 | 1.16 | -21.07 | 253.81 | -61.43 | 114.97 | 0.9058 | -390.0 | -304.8 | |
| 0.00 | 0.55 | 0.00 | 0.63 | -18.92 | 253.42 | -61.82 | 112.56 | 0.9047 | -429.0 | -442.3 | |
| 0.00 | 1.18 | 0.00 | 1.33 | -17.86 | 253.95 | -61.29 | 111.53 | 0.8993 | -318.0 | -283.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
