SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.55 | 13.09 | 7.23 | 28.15 | -8.54 | 239.19 | -76.04 | 99.49 | 0.9737 | 123.5 | 28.2 | |
|
previous
or next observation for the same group /

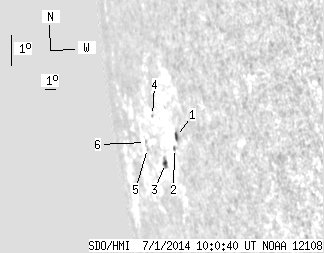

back to the solar disc SDO HMI 2014-07-01 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 3.73 | 3.09 | 7.05 | -8.08 | 241.03 | -74.20 | 99.18 | 0.9662 | 316.8 | 330.9 | |
| 0.00 | 1.27 | 0.00 | 2.48 | -8.47 | 240.59 | -74.65 | 99.54 | 0.9683 | 173.0 | 156.8 | |
| 1.91 | 5.00 | 4.14 | 10.84 | -9.01 | 239.14 | -76.10 | 99.96 | 0.9744 | 156.0 | 55.6 | |
| 0.00 | 0.91 | 0.00 | 2.08 | -7.56 | 238.29 | -76.95 | 98.41 | 0.9771 | 101.0 | 36.2 | |
| 0.00 | 1.36 | 0.00 | 3.56 | -8.66 | 236.82 | -78.42 | 99.40 | 0.9825 | -368.0 | -351.1 | |
| 0.00 | 0.82 | 0.00 | 2.14 | -8.48 | 236.63 | -78.61 | 99.21 | 0.9831 | -144.0 | -143.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
