SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.00 | 0.00 | 9.60 | 5.78 | 271.81 | -42.88 | 84.38 | 0.6730 | -245.8 | -89.3 | |
|
previous
or next observation for the same group /

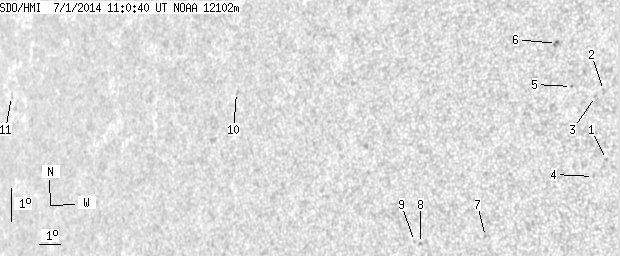

back to the solar disc SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.50 | 5.04 | 279.08 | -35.61 | 85.40 | 0.5841 | -695.0 | -600.1 | |
| 0.00 | 1.64 | 0.00 | 1.00 | 7.14 | 278.80 | -35.89 | 81.84 | 0.5898 | -769.0 | -578.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 6.95 | 278.52 | -36.17 | 82.20 | 0.5936 | -456.0 | -416.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 4.50 | 278.62 | -36.07 | 86.33 | 0.5904 | -491.0 | -452.3 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 7.22 | 277.57 | -37.12 | 81.87 | 0.6070 | -623.0 | -495.9 | |
| 0.00 | 2.82 | 0.00 | 1.77 | 8.52 | 276.85 | -37.84 | 79.86 | 0.6185 | 831.0 | 637.7 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 2.55 | 274.50 | -40.19 | 89.49 | 0.6469 | -61.0 | -112.1 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 2.25 | 271.85 | -42.84 | 89.82 | 0.6817 | -652.0 | -580.3 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 2.30 | 271.60 | -43.09 | 89.73 | 0.6849 | -562.0 | -463.7 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 6.55 | 263.18 | -51.51 | 83.93 | 0.7842 | 473.0 | 416.9 | |
| 0.00 | 1.09 | 0.00 | 1.25 | 5.88 | 250.13 | -64.56 | 84.86 | 0.9037 | 301.0 | 215.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
