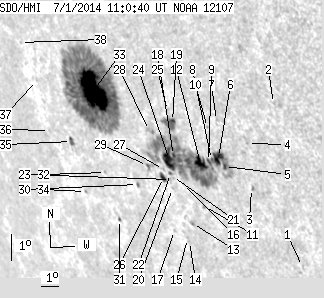

SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.67 | 604.59 | 102.25 | 593.66 | -19.94 | 258.69 | -56.00 | 115.28 | 0.8633 | 305.1 | 13.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.39 | -24.58 | 265.59 | -49.10 | 122.95 | 0.8212 | 403.0 | 335.4 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -19.09 | 266.67 | -48.02 | 117.04 | 0.7910 | 498.0 | 363.5 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -21.99 | 264.29 | -50.40 | 119.48 | 0.8229 | 421.0 | 427.1 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -20.47 | 264.80 | -49.89 | 117.93 | 0.8132 | -193.0 | -149.5 | |
| 2.27 | 223.30 | 2.00 | 206.07 | -21.30 | 263.22 | -51.47 | 118.28 | 0.8298 | 772.5 | -211.1 | |
| 8.72 | -5.00 | 7.71 | -5.00 | -21.01 | 263.04 | -51.65 | 117.88 | 0.8304 | 753.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -19.77 | 263.52 | -51.17 | 116.63 | 0.8222 | 528.0 | 459.8 | |
| 0.55 | -5.00 | 0.49 | -5.00 | -21.09 | 262.63 | -52.06 | 117.83 | 0.8342 | 628.2 | 999999 | |
| 1.54 | -5.00 | 1.39 | -5.00 | -21.17 | 262.43 | -52.26 | 117.84 | 0.8361 | 535.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -20.02 | 262.93 | -51.76 | 116.71 | 0.8282 | 484.0 | 415.8 | |
| 0.00 | 1.54 | 0.00 | 1.44 | -22.71 | 261.38 | -53.31 | 119.21 | 0.8495 | -363.0 | -382.2 | |
| 9.99 | -5.00 | 9.08 | -5.00 | -21.25 | 261.95 | -52.74 | 117.77 | 0.8404 | 492.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.75 | -23.33 | 260.34 | -54.35 | 119.53 | 0.8595 | -545.0 | -457.5 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -23.96 | 259.77 | -54.92 | 120.03 | 0.8657 | -178.0 | -271.5 | |
| 0.00 | 1.45 | 0.00 | 1.43 | -23.86 | 259.72 | -54.97 | 119.90 | 0.8658 | -523.0 | -461.8 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -21.98 | 260.62 | -54.07 | 118.12 | 0.8534 | -429.0 | -408.6 | |
| 0.00 | 0.73 | 0.00 | 0.73 | -23.62 | 259.11 | -55.58 | 119.43 | 0.8697 | -346.0 | -250.6 | |
| 1.64 | -5.00 | 1.53 | -5.00 | -21.05 | 260.57 | -54.12 | 117.06 | 0.8512 | -892.2 | 999999 | |
| 1.64 | -5.00 | 1.50 | -5.00 | -19.90 | 261.11 | -53.58 | 115.95 | 0.8435 | 232.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.44 | -22.17 | 259.88 | -54.81 | 118.09 | 0.8598 | -470.0 | -427.6 | |
| 0.00 | 1.27 | 0.00 | 1.21 | -21.76 | 260.12 | -54.57 | 117.71 | 0.8568 | -397.0 | -425.9 | |
| 0.55 | -5.00 | 0.52 | -5.00 | -21.67 | 260.06 | -54.63 | 117.59 | 0.8570 | -508.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.87 | -21.87 | 259.94 | -54.75 | 117.78 | 0.8585 | -589.0 | -519.0 | |
| 15.44 | -5.00 | 14.63 | -5.00 | -21.19 | 260.27 | -54.42 | 117.12 | 0.8541 | -699.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -19.54 | 261.01 | -53.68 | 115.51 | 0.8434 | 431.0 | 293.7 | |
| 3.09 | 4.63 | 2.99 | 4.49 | -21.82 | 259.57 | -55.12 | 117.60 | 0.8613 | -327.2 | -177.4 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -21.55 | 259.73 | -54.96 | 117.34 | 0.8594 | -394.0 | -361.8 | |
| 0.00 | 3.63 | 0.00 | 3.47 | -20.26 | 259.64 | -55.05 | 115.88 | 0.8567 | -352.0 | -388.6 | |
| 0.73 | 4.18 | 0.71 | 4.10 | -21.45 | 258.85 | -55.84 | 116.96 | 0.8660 | 282.4 | 91.5 | |
| 0.55 | 1.64 | 0.55 | 1.66 | -22.13 | 257.85 | -56.84 | 117.39 | 0.8754 | 542.5 | 489.6 | |
| 0.55 | 1.45 | 0.59 | 1.58 | -23.39 | 255.87 | -58.82 | 118.17 | 0.8926 | -269.5 | -313.0 | |
| 0.00 | 1.27 | 0.00 | 1.36 | -21.81 | 256.07 | -58.62 | 116.52 | 0.8877 | 239.0 | 227.1 | |
| 55.05 | 340.59 | 55.94 | 347.53 | -19.06 | 256.99 | -57.70 | 113.76 | 0.8748 | 700.1 | 155.5 | |
| 0.00 | 0.91 | 0.00 | 1.03 | -22.52 | 254.26 | -60.43 | 116.79 | 0.9018 | -289.0 | -256.9 | |
| 2.36 | 4.00 | 2.62 | 4.44 | -20.85 | 254.51 | -60.18 | 115.05 | 0.8968 | 406.0 | 333.6 | |
| 0.00 | 0.64 | 0.00 | 0.73 | -20.54 | 253.23 | -61.46 | 114.40 | 0.9050 | -130.0 | -135.1 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -18.89 | 253.44 | -61.25 | 112.67 | 0.9007 | -488.0 | -404.7 | |
| 0.00 | 0.73 | 0.00 | 0.82 | -17.67 | 253.11 | -61.58 | 111.27 | 0.9010 | -375.0 | -321.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
