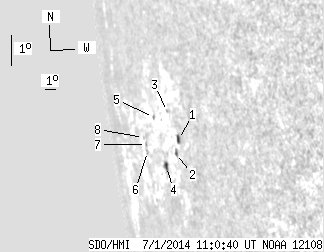

SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 16.61 | 10.09 | 34.63 | -8.41 | 239.09 | -75.60 | 99.39 | 0.9719 | 86.2 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 3.72 | 3.48 | 6.80 | -8.08 | 241.06 | -73.63 | 99.23 | 0.9636 | 286.0 | 269.1 | |
| 1.00 | 2.54 | 1.88 | 4.79 | -8.53 | 240.60 | -74.09 | 99.66 | 0.9659 | 205.0 | 165.3 | |
| 0.00 | 1.09 | 0.00 | 2.09 | -7.25 | 240.21 | -74.48 | 98.30 | 0.9671 | 345.0 | 288.1 | |
| 2.27 | 4.45 | 4.73 | 9.29 | -9.01 | 239.12 | -75.57 | 100.01 | 0.9723 | 90.3 | 60.4 | |
| 0.00 | 1.27 | 0.00 | 2.78 | -7.53 | 238.32 | -76.37 | 98.43 | 0.9750 | -39.0 | -25.8 | |
| 0.00 | 1.45 | 0.00 | 3.63 | -8.66 | 236.74 | -77.95 | 99.45 | 0.9810 | -324.0 | -268.1 | |
| 0.00 | 1.54 | 0.00 | 3.85 | -8.45 | 236.75 | -77.94 | 99.23 | 0.9809 | -328.0 | -272.9 | |
| 0.00 | 0.55 | 0.00 | 1.40 | -8.24 | 236.43 | -78.26 | 99.00 | 0.9819 | -161.0 | -99.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
