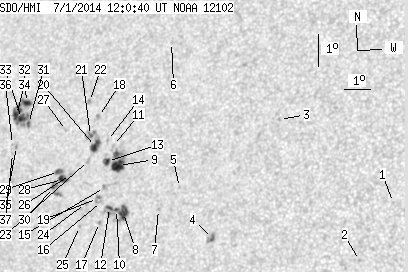

SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.24 | 166.85 | 34.75 | 106.36 | 13.08 | 276.17 | -37.97 | 72.66 | 0.6296 | -159.3 | -101.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.16 | 287.61 | -26.53 | 69.16 | 0.4690 | -621.0 | -512.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 10.35 | 286.61 | -27.53 | 73.43 | 0.4763 | -698.0 | -528.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 14.64 | 283.21 | -30.93 | 67.06 | 0.5421 | -818.0 | -683.3 | |
| 1.09 | 5.81 | 0.65 | 3.46 | 10.90 | 281.26 | -32.88 | 74.56 | 0.5551 | -975.2 | -756.7 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 12.44 | 279.82 | -34.32 | 72.43 | 0.5797 | -658.0 | -577.5 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 16.94 | 278.69 | -35.45 | 65.61 | 0.6114 | 534.0 | 463.4 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 11.74 | 279.12 | -35.02 | 73.85 | 0.5871 | -725.0 | -540.7 | |
| 7.72 | 25.80 | 4.79 | 16.06 | 11.61 | 277.80 | -36.34 | 74.49 | 0.6046 | -947.3 | -400.3 | |
| 10.45 | 31.34 | 6.55 | 19.67 | 13.06 | 277.37 | -36.77 | 72.30 | 0.6143 | -988.0 | -666.1 | |
| 0.73 | -8.00 | 0.45 | -8.00 | 11.70 | 277.51 | -36.63 | 74.44 | 0.6086 | -725.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 13.67 | 277.06 | -37.07 | 71.43 | 0.6202 | -369.0 | -320.2 | |
| 1.64 | -8.00 | 1.02 | -8.00 | 11.75 | 277.23 | -36.91 | 74.43 | 0.6125 | -692.4 | 999999 | |
| 2.54 | -9.00 | 1.60 | -9.00 | 13.17 | 276.92 | -37.22 | 72.27 | 0.6206 | -689.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 13.82 | 276.80 | -37.34 | 71.29 | 0.6241 | -582.0 | -480.7 | |
| 0.00 | 2.54 | 0.00 | 1.60 | 12.36 | 276.94 | -37.20 | 73.55 | 0.6180 | -499.0 | -392.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 11.93 | 276.89 | -37.25 | 74.25 | 0.6175 | -601.0 | -489.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 11.28 | 276.91 | -37.23 | 75.29 | 0.6156 | -607.0 | -437.3 | |
| 0.00 | 2.27 | 0.00 | 1.45 | 14.55 | 276.30 | -37.84 | 70.33 | 0.6328 | -673.0 | -533.7 | |
| 0.00 | 3.36 | 0.00 | 2.12 | 12.01 | 276.72 | -37.42 | 74.17 | 0.6200 | -407.0 | -368.3 | |
| 6.00 | 17.71 | 3.81 | 11.29 | 13.62 | 276.36 | -37.78 | 71.76 | 0.6291 | -796.7 | -473.2 | |
| 0.91 | -20.00 | 0.58 | -20.00 | 13.95 | 276.10 | -38.04 | 71.33 | 0.6335 | -514.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 15.01 | 275.84 | -38.29 | 69.80 | 0.6400 | -742.0 | -525.8 | |
| 0.00 | 2.45 | 0.00 | 1.56 | 13.18 | 276.16 | -37.98 | 72.51 | 0.6304 | -578.0 | -376.8 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 11.85 | 276.27 | -37.87 | 74.56 | 0.6255 | 895.0 | 691.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 11.13 | 276.15 | -37.99 | 75.72 | 0.6254 | 772.0 | 607.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 12.72 | 275.53 | -38.61 | 73.41 | 0.6374 | 394.0 | 332.6 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 14.08 | 275.11 | -39.03 | 71.46 | 0.6465 | 236.0 | 172.2 | |
| 4.09 | 11.17 | 2.63 | 7.20 | 12.56 | 275.23 | -38.90 | 73.75 | 0.6408 | 945.4 | 749.1 | |
| 2.36 | -28.00 | 1.53 | -28.00 | 12.80 | 275.03 | -39.11 | 73.43 | 0.6440 | 892.7 | 999999 | |
| 1.00 | 9.63 | 0.65 | 6.21 | 12.30 | 274.92 | -39.22 | 74.23 | 0.6442 | 624.2 | 672.2 | |
| 1.27 | 33.70 | 0.84 | 22.48 | 14.25 | 273.51 | -40.63 | 71.71 | 0.6670 | 937.1 | 621.8 | |
| 4.27 | -31.00 | 2.85 | -31.00 | 14.90 | 273.28 | -40.86 | 70.83 | 0.6716 | 762.9 | 999999 | |
| 4.36 | -31.00 | 2.91 | -31.00 | 14.39 | 273.19 | -40.95 | 71.60 | 0.6714 | 921.1 | 999999 | |
| 5.81 | -31.00 | 3.89 | -31.00 | 14.51 | 272.95 | -41.19 | 71.49 | 0.6746 | 658.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 13.52 | 273.17 | -40.97 | 72.88 | 0.6694 | 735.0 | 692.7 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 13.58 | 272.99 | -41.15 | 72.85 | 0.6717 | 678.0 | 554.3 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 13.30 | 273.05 | -41.09 | 73.24 | 0.6703 | 513.0 | 366.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
