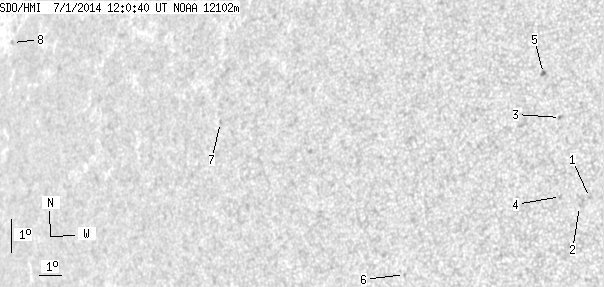

SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.09 | 0.00 | 9.13 | 6.56 | 270.26 | -43.88 | 83.46 | 0.6834 | -123.0 | 41.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.83 | 4.77 | 278.96 | -35.18 | 85.83 | 0.5779 | -781.0 | -626.6 | |
| 0.00 | 0.55 | 0.00 | 0.33 | 4.49 | 278.60 | -35.54 | 86.34 | 0.5829 | -475.0 | -473.0 | |
| 0.00 | 2.27 | 0.00 | 1.40 | 7.18 | 277.68 | -36.46 | 81.85 | 0.5978 | -424.0 | -335.2 | |
| 0.00 | 1.91 | 0.00 | 1.17 | 4.77 | 277.86 | -36.28 | 85.89 | 0.5934 | -559.0 | -451.1 | |
| 0.00 | 2.73 | 0.00 | 1.70 | 8.51 | 276.89 | -37.25 | 79.78 | 0.6105 | 851.0 | 666.1 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 2.20 | 271.81 | -42.33 | 89.92 | 0.6752 | -640.0 | -484.8 | |
| 0.00 | 1.64 | 0.00 | 1.28 | 6.54 | 263.22 | -50.92 | 83.92 | 0.7778 | 533.0 | 397.7 | |
| 0.00 | 1.54 | 0.00 | 1.69 | 8.49 | 250.96 | -63.18 | 81.94 | 0.8933 | 511.0 | 449.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
