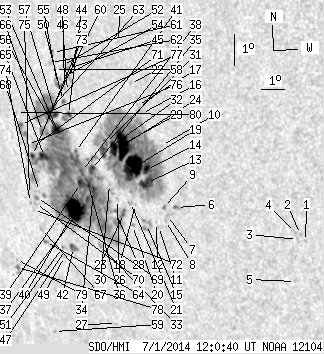

SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.69 | 1062.22 | 141.48 | 786.74 | -10.75 | 267.84 | -46.30 | 107.27 | 0.7459 | 357.8 | 202.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.77 | -12.71 | 276.48 | -37.66 | 113.48 | 0.6521 | 615.0 | 514.5 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -12.50 | 276.32 | -37.82 | 113.09 | 0.6530 | 706.0 | 557.7 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -12.66 | 276.17 | -37.97 | 113.24 | 0.6556 | 436.0 | 374.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -12.44 | 276.13 | -38.01 | 112.91 | 0.6551 | 368.0 | 314.5 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -14.00 | 275.84 | -38.30 | 114.98 | 0.6657 | 671.0 | 556.4 | |
| 0.00 | 2.82 | 0.00 | 1.97 | -11.81 | 271.36 | -42.78 | 109.91 | 0.7094 | 786.0 | 669.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -12.08 | 270.92 | -43.22 | 110.10 | 0.7153 | 702.0 | 579.2 | |
| 0.00 | 1.45 | 0.00 | 1.03 | -12.24 | 270.80 | -43.34 | 110.27 | 0.7173 | 648.0 | 553.0 | |
| 0.55 | 1.64 | 0.39 | 1.16 | -11.83 | 270.80 | -43.34 | 109.72 | 0.7159 | 845.7 | 689.9 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -9.88 | 271.07 | -43.07 | 107.16 | 0.7064 | 264.0 | 259.8 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -12.44 | 270.46 | -43.68 | 110.40 | 0.7219 | 509.0 | 444.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -12.32 | 270.40 | -43.74 | 110.22 | 0.7221 | 396.0 | 430.6 | |
| 12.81 | 375.26 | 9.11 | 268.43 | -11.06 | 270.26 | -43.88 | 108.49 | 0.7196 | 960.1 | 412.3 | |
| 4.45 | -13.00 | 3.16 | -13.00 | -10.65 | 270.29 | -43.85 | 107.95 | 0.7179 | 1222.0 | 999999 | |
| 0.00 | 9.17 | 0.00 | 6.60 | -12.39 | 269.94 | -44.19 | 110.15 | 0.7275 | 593.0 | 595.7 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -8.90 | 270.37 | -43.77 | 105.59 | 0.7118 | 168.0 | 173.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -8.66 | 270.24 | -43.90 | 105.21 | 0.7127 | -321.0 | -218.9 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -11.78 | 269.59 | -44.54 | 109.20 | 0.7294 | 505.0 | 455.6 | |
| 35.97 | -13.00 | 25.76 | -13.00 | -10.61 | 269.74 | -44.40 | 107.70 | 0.7242 | 981.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.19 | -12.45 | 269.32 | -44.82 | 109.99 | 0.7347 | 506.0 | 407.9 | |
| 0.00 | 2.63 | 0.00 | 1.91 | -11.72 | 269.39 | -44.75 | 109.05 | 0.7316 | 579.0 | 493.0 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -7.98 | 270.03 | -44.11 | 104.22 | 0.7133 | -563.0 | -344.1 | |
| 2.36 | 572.02 | 1.73 | 432.38 | -12.08 | 269.00 | -45.14 | 109.39 | 0.7371 | 719.5 | 76.8 | |
| 24.44 | -13.00 | 17.55 | -13.00 | -9.94 | 269.38 | -44.76 | 106.67 | 0.7263 | 991.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -6.73 | 269.68 | -44.46 | 102.39 | 0.7145 | 446.0 | 312.3 | |
| 0.00 | 1.64 | 0.00 | 1.20 | -11.65 | 268.83 | -45.31 | 108.76 | 0.7377 | 389.0 | 362.3 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -15.62 | 267.77 | -46.36 | 113.47 | 0.7621 | 429.0 | 338.4 | |
| 0.64 | -23.00 | 0.47 | -23.00 | -12.03 | 268.65 | -45.48 | 109.20 | 0.7408 | 315.1 | 999999 | |
| 8.54 | -13.00 | 6.18 | -13.00 | -10.04 | 269.01 | -45.13 | 106.70 | 0.7309 | 536.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -11.19 | 268.57 | -45.57 | 108.07 | 0.7392 | 670.0 | 566.5 | |
| 2.18 | -13.00 | 1.59 | -13.00 | -9.87 | 268.64 | -45.50 | 106.35 | 0.7346 | 455.8 | 999999 | |
| 5.63 | -13.00 | 4.11 | -13.00 | -10.16 | 268.50 | -45.64 | 106.68 | 0.7369 | 427.3 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.84 | -13.14 | 267.72 | -46.42 | 110.30 | 0.7545 | -472.0 | -391.9 | |
| 3.27 | -23.00 | 2.43 | -23.00 | -11.40 | 267.80 | -46.34 | 108.09 | 0.7483 | 7.0 | 999999 | |
| 4.63 | -23.00 | 3.43 | -23.00 | -10.74 | 267.85 | -46.29 | 107.25 | 0.7459 | 675.8 | 999999 | |
| 2.18 | -23.00 | 1.63 | -23.00 | -11.25 | 267.61 | -46.53 | 107.84 | 0.7500 | -281.5 | 999999 | |
| 2.36 | -23.00 | 1.77 | -23.00 | -11.70 | 267.47 | -46.67 | 108.37 | 0.7528 | -607.3 | 999999 | |
| 2.54 | -23.00 | 1.90 | -23.00 | -10.82 | 267.38 | -46.76 | 107.21 | 0.7513 | -150.0 | 999999 | |
| 4.45 | -23.00 | 3.34 | -23.00 | -11.20 | 267.26 | -46.88 | 107.66 | 0.7538 | 334.0 | 999999 | |
| 31.25 | -23.00 | 23.76 | -23.00 | -12.04 | 266.84 | -47.30 | 108.60 | 0.7606 | -923.9 | 999999 | |
| 0.73 | -23.00 | 0.54 | -23.00 | -10.20 | 267.23 | -46.91 | 106.36 | 0.7513 | 789.8 | 999999 | |
| 3.09 | 5.36 | 2.38 | 4.13 | -13.25 | 266.44 | -47.70 | 110.00 | 0.7684 | -733.0 | -587.3 | |
| 0.00 | 3.82 | 0.00 | 2.82 | -7.93 | 267.36 | -46.78 | 103.41 | 0.7443 | 828.0 | 685.8 | |
| 2.00 | 9.08 | 1.49 | 6.78 | -9.05 | 267.13 | -47.01 | 104.83 | 0.7495 | 529.9 | 579.7 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -7.62 | 267.31 | -46.83 | 102.99 | 0.7441 | 715.0 | 601.5 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -8.33 | 267.20 | -46.94 | 103.90 | 0.7470 | 697.0 | 610.0 | |
| 0.00 | 0.55 | 0.00 | 0.42 | -13.33 | 266.05 | -48.09 | 109.97 | 0.7727 | -564.0 | -532.2 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -8.21 | 267.08 | -47.06 | 103.72 | 0.7480 | 823.0 | 701.7 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -13.55 | 265.94 | -48.20 | 110.22 | 0.7745 | -594.0 | -526.4 | |
| 0.91 | 2.09 | 0.68 | 1.56 | -8.65 | 266.97 | -47.17 | 104.26 | 0.7504 | 583.5 | 493.8 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -13.27 | 265.92 | -48.22 | 109.85 | 0.7739 | -605.0 | -563.7 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -7.53 | 267.10 | -47.04 | 102.82 | 0.7464 | 575.0 | 511.0 | |
| 4.00 | -23.00 | 3.02 | -23.00 | -9.79 | 266.63 | -47.51 | 105.64 | 0.7569 | 961.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -7.94 | 266.94 | -47.19 | 103.32 | 0.7490 | 633.0 | 581.2 | |
| 0.00 | 5.81 | 0.00 | 4.34 | -8.10 | 266.78 | -47.36 | 103.49 | 0.7512 | 642.0 | 540.6 | |
| 10.54 | -23.00 | 7.97 | -23.00 | -9.54 | 266.49 | -47.65 | 105.29 | 0.7578 | 847.8 | 999999 | |
| 2.63 | -23.00 | 1.99 | -23.00 | -9.07 | 266.53 | -47.61 | 104.69 | 0.7563 | 671.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -7.67 | 266.71 | -47.43 | 102.91 | 0.7510 | 545.0 | 424.5 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -16.00 | 264.71 | -49.43 | 112.79 | 0.7942 | -695.0 | -596.5 | |
| 1.27 | -23.00 | 0.96 | -23.00 | -8.86 | 266.43 | -47.71 | 104.39 | 0.7569 | 751.1 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.17 | -7.14 | 266.70 | -47.44 | 102.21 | 0.7501 | 34.0 | 29.6 | |
| 0.00 | 2.09 | 0.00 | 1.57 | -7.46 | 266.56 | -47.58 | 102.59 | 0.7523 | 445.0 | 449.3 | |
| 2.82 | -23.00 | 2.14 | -23.00 | -8.99 | 266.22 | -47.92 | 104.50 | 0.7595 | 662.4 | 999999 | |
| 0.55 | 2.18 | 0.43 | 1.72 | -13.11 | 265.16 | -48.98 | 109.41 | 0.7814 | -667.7 | -571.2 | |
| 7.63 | -23.00 | 5.88 | -23.00 | -10.41 | 265.76 | -48.38 | 106.20 | 0.7679 | 389.3 | 999999 | |
| 2.09 | -23.00 | 1.60 | -23.00 | -9.63 | 265.82 | -48.32 | 105.22 | 0.7653 | 505.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -12.70 | 265.07 | -49.07 | 108.87 | 0.7811 | -545.0 | -512.3 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -11.53 | 265.27 | -48.87 | 107.47 | 0.7759 | -406.0 | -347.7 | |
| 0.64 | 2.36 | 0.50 | 1.86 | -11.73 | 265.08 | -49.06 | 107.66 | 0.7784 | -578.1 | -428.8 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -11.92 | 264.99 | -49.15 | 107.87 | 0.7799 | -609.0 | -526.6 | |
| 0.00 | 5.18 | 0.00 | 4.01 | -10.09 | 265.36 | -48.78 | 105.67 | 0.7714 | 338.0 | 324.8 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -12.11 | 264.84 | -49.30 | 108.07 | 0.7819 | -471.0 | -436.0 | |
| 2.18 | -23.00 | 1.70 | -23.00 | -10.40 | 265.19 | -48.95 | 106.03 | 0.7739 | 209.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -11.90 | 264.75 | -49.39 | 107.77 | 0.7823 | -350.0 | -333.8 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -11.64 | 264.77 | -49.37 | 107.46 | 0.7815 | -307.0 | -254.7 | |
| 0.00 | 1.54 | 0.00 | 1.21 | -10.07 | 265.03 | -49.11 | 105.55 | 0.7749 | 352.0 | 307.8 | |
| 1.27 | 9.63 | 0.99 | 7.52 | -9.45 | 264.82 | -49.32 | 104.72 | 0.7757 | 661.4 | 508.6 | |
| 1.09 | 4.63 | 0.90 | 3.81 | -14.00 | 263.53 | -50.61 | 109.99 | 0.8001 | -596.2 | -482.2 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -13.74 | 263.56 | -50.58 | 109.69 | 0.7992 | -388.0 | -334.2 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -9.08 | 264.70 | -49.44 | 104.22 | 0.7762 | 340.0 | 279.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
