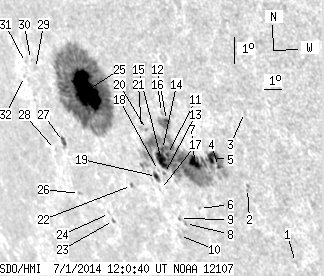

SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.31 | 606.90 | 92.31 | 587.89 | -19.92 | 258.63 | -55.51 | 115.40 | 0.8593 | 318.4 | 20.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.24 | -24.45 | 265.57 | -48.57 | 123.04 | 0.8163 | 102.0 | 119.1 | |
| 0.00 | 2.45 | 0.00 | 2.10 | -22.00 | 264.35 | -49.78 | 119.74 | 0.8175 | 603.0 | 421.6 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -19.44 | 265.34 | -48.80 | 117.15 | 0.7996 | 357.0 | 266.4 | |
| 1.82 | 213.29 | 1.58 | 194.41 | -21.31 | 263.19 | -50.95 | 118.49 | 0.8253 | 782.8 | -185.6 | |
| 7.72 | -4.00 | 6.75 | -4.00 | -21.02 | 263.02 | -51.12 | 118.09 | 0.8259 | 769.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -22.79 | 261.40 | -52.74 | 119.50 | 0.8451 | -486.0 | -430.1 | |
| 8.27 | -4.00 | 7.41 | -4.00 | -21.23 | 261.96 | -52.18 | 117.94 | 0.8356 | 539.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.73 | -23.34 | 260.30 | -53.84 | 119.72 | 0.8556 | -599.0 | -499.4 | |
| 0.00 | 1.09 | 0.00 | 1.04 | -23.18 | 260.05 | -54.08 | 119.46 | 0.8570 | -460.0 | -506.1 | |
| 0.00 | 1.54 | 0.00 | 1.50 | -23.77 | 259.69 | -54.44 | 119.98 | 0.8616 | -561.0 | -431.9 | |
| 1.27 | -4.00 | 1.18 | -4.00 | -21.02 | 260.60 | -53.54 | 117.23 | 0.8464 | -879.8 | 999999 | |
| 1.64 | 11.90 | 1.48 | 10.81 | -19.88 | 261.12 | -53.02 | 116.11 | 0.8387 | 211.8 | -258.6 | |
| 0.00 | 1.36 | 0.00 | 1.28 | -21.68 | 260.08 | -54.06 | 117.79 | 0.8525 | -610.0 | -514.5 | |
| 2.00 | -4.00 | 1.86 | -4.00 | -20.86 | 260.40 | -53.74 | 116.99 | 0.8476 | -701.1 | 999999 | |
| 11.36 | -4.00 | 10.63 | -4.00 | -21.24 | 260.15 | -53.99 | 117.32 | 0.8507 | -668.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -19.62 | 260.97 | -53.17 | 115.77 | 0.8392 | 340.0 | 296.2 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -22.23 | 259.53 | -54.61 | 118.22 | 0.8584 | -173.0 | -280.7 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -21.59 | 259.79 | -54.35 | 117.59 | 0.8546 | -416.0 | -352.9 | |
| 2.09 | 4.54 | 2.00 | 4.34 | -21.80 | 259.55 | -54.59 | 117.75 | 0.8571 | -322.8 | -249.0 | |
| 0.00 | 1.09 | 0.00 | 1.02 | -20.23 | 259.84 | -54.30 | 116.08 | 0.8504 | -396.0 | -375.1 | |
| 0.00 | 2.36 | 0.00 | 2.23 | -20.21 | 259.57 | -54.57 | 115.97 | 0.8526 | -354.0 | -310.3 | |
| 0.45 | 1.45 | 0.45 | 1.46 | -22.17 | 257.88 | -56.26 | 117.62 | 0.8711 | 493.0 | 505.9 | |
| 0.55 | 1.82 | 0.58 | 1.95 | -23.43 | 255.93 | -58.21 | 118.40 | 0.8884 | -355.8 | -300.1 | |
| 0.00 | 1.18 | 0.00 | 1.27 | -23.20 | 255.84 | -58.30 | 118.12 | 0.8885 | -224.0 | -178.5 | |
| 55.69 | 345.29 | 55.71 | 346.82 | -19.07 | 256.98 | -57.16 | 113.92 | 0.8706 | 696.4 | 163.4 | |
| 0.00 | 1.00 | 0.00 | 1.12 | -22.60 | 254.33 | -59.81 | 117.04 | 0.8977 | -395.0 | -270.7 | |
| 2.45 | 4.63 | 2.68 | 5.06 | -20.86 | 254.48 | -59.66 | 115.20 | 0.8932 | 445.7 | 307.7 | |
| 0.00 | 0.64 | 0.00 | 0.71 | -21.16 | 253.75 | -60.39 | 115.33 | 0.8989 | -429.0 | -395.1 | |
| 0.00 | 1.73 | 0.00 | 1.87 | -18.48 | 254.14 | -60.00 | 112.52 | 0.8910 | -264.0 | -244.6 | |
| 0.00 | 0.73 | 0.00 | 0.79 | -18.19 | 253.98 | -60.16 | 112.17 | 0.8916 | -419.0 | -475.1 | |
| 0.00 | 0.64 | 0.00 | 0.70 | -18.31 | 253.59 | -60.55 | 112.20 | 0.8947 | -381.0 | -333.4 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -18.78 | 253.24 | -60.90 | 112.63 | 0.8981 | -310.0 | -326.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
