SDO HMI 2014-07-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.61 | 140.60 | 45.35 | 121.18 | 14.52 | 259.15 | -54.44 | 74.24 | 0.8200 | -293.4 | -131.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

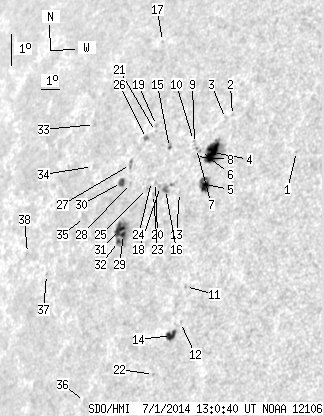

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.34 | 16.20 | 265.57 | -48.02 | 70.98 | 0.7573 | -569.0 | -500.0 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 17.20 | 262.04 | -51.55 | 70.47 | 0.7960 | -519.0 | -514.6 | |
| 0.00 | 1.00 | 0.00 | 0.82 | 17.10 | 261.72 | -51.87 | 70.67 | 0.7989 | -562.0 | -497.9 | |
| 18.44 | 34.97 | 15.15 | 28.66 | 16.01 | 261.46 | -52.13 | 72.06 | 0.7997 | -703.3 | -382.0 | |
| 10.17 | 14.35 | 8.33 | 11.76 | 15.00 | 261.40 | -52.19 | 73.33 | 0.7988 | -665.9 | -462.0 | |
| 0.00 | 1.09 | 0.00 | 0.91 | 16.02 | 260.83 | -52.76 | 72.17 | 0.8060 | -304.0 | -271.2 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 16.10 | 260.58 | -53.01 | 72.11 | 0.8085 | -224.0 | -200.5 | |
| 0.00 | 1.18 | 0.00 | 0.99 | 15.85 | 260.62 | -52.96 | 72.41 | 0.8078 | 308.0 | 245.9 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 16.26 | 260.42 | -53.17 | 71.95 | 0.8104 | -286.0 | -159.5 | |
| 0.00 | 0.36 | 0.00 | 0.31 | 16.35 | 260.33 | -53.26 | 71.85 | 0.8114 | -232.0 | -226.2 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 11.82 | 261.40 | -52.19 | 77.30 | 0.7948 | -442.0 | -368.5 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 10.71 | 261.43 | -52.15 | 78.70 | 0.7935 | -514.0 | -461.6 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 14.71 | 260.20 | -53.39 | 73.89 | 0.8104 | -351.0 | -291.6 | |
| 6.09 | 8.27 | 4.97 | 6.75 | 10.29 | 261.07 | -52.51 | 79.26 | 0.7969 | -555.9 | -385.0 | |
| 0.73 | 2.63 | 0.63 | 2.28 | 16.08 | 259.14 | -54.45 | 72.38 | 0.8224 | -107.6 | 164.7 | |
| 1.73 | 6.72 | 1.48 | 5.74 | 14.77 | 259.42 | -54.17 | 73.92 | 0.8180 | 452.5 | 9.4 | |
| 0.00 | 1.00 | 0.00 | 0.92 | 19.37 | 257.21 | -56.38 | 68.79 | 0.8447 | -416.0 | -325.2 | |
| 0.00 | 1.63 | 0.00 | 1.41 | 14.85 | 259.12 | -54.47 | 73.87 | 0.8210 | 405.0 | 408.6 | |
| 0.00 | 1.27 | 0.00 | 1.13 | 16.74 | 258.14 | -55.45 | 71.75 | 0.8327 | 403.0 | 370.8 | |
| 0.00 | 1.00 | 0.00 | 0.87 | 14.97 | 258.80 | -54.79 | 73.77 | 0.8242 | 487.0 | 398.4 | |
| 0.00 | 0.91 | 0.00 | 0.81 | 16.55 | 258.16 | -55.43 | 71.97 | 0.8322 | 660.0 | 608.7 | |
| 0.00 | 1.00 | 0.00 | 0.83 | 9.07 | 260.42 | -53.17 | 80.84 | 0.8028 | 494.0 | 448.1 | |
| 0.00 | 1.54 | 0.00 | 1.34 | 14.59 | 258.83 | -54.76 | 74.22 | 0.8234 | 689.0 | 607.3 | |
| 0.00 | 0.73 | 0.00 | 0.64 | 14.99 | 258.57 | -55.02 | 73.78 | 0.8264 | 226.0 | 298.1 | |
| 0.00 | 1.09 | 0.00 | 0.96 | 14.76 | 258.44 | -55.15 | 74.07 | 0.8274 | 460.0 | 415.6 | |
| 1.00 | 2.36 | 0.90 | 2.12 | 16.31 | 257.75 | -55.83 | 72.32 | 0.8356 | 626.5 | 489.1 | |
| 0.00 | 3.36 | 0.00 | 3.05 | 15.47 | 257.20 | -56.39 | 73.40 | 0.8397 | 482.0 | 358.9 | |
| 0.00 | 1.27 | 0.00 | 1.14 | 14.88 | 257.43 | -56.15 | 74.06 | 0.8369 | 506.0 | 415.1 | |
| 2.36 | 31.16 | 2.11 | 27.84 | 13.29 | 257.63 | -55.96 | 75.94 | 0.8335 | -893.7 | -413.9 | |
| 3.00 | 5.00 | 2.73 | 4.55 | 14.89 | 256.91 | -56.67 | 74.12 | 0.8416 | 599.7 | 411.6 | |
| 8.36 | -29.00 | 7.50 | -29.00 | 13.44 | 257.35 | -56.24 | 75.79 | 0.8362 | -467.2 | 999999 | |
| 1.73 | -29.00 | 1.55 | -29.00 | 13.07 | 257.43 | -56.16 | 76.23 | 0.8352 | -492.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.60 | 16.62 | 254.51 | -59.07 | 72.40 | 0.8643 | -121.0 | -133.0 | |
| 0.00 | 0.73 | 0.00 | 0.70 | 15.31 | 255.01 | -58.58 | 73.85 | 0.8589 | -348.0 | -372.8 | |
| 0.00 | 4.36 | 0.00 | 4.15 | 13.72 | 255.20 | -58.39 | 75.68 | 0.8559 | -64.0 | -118.0 | |
| 0.00 | 1.54 | 0.00 | 1.39 | 8.09 | 256.90 | -56.69 | 82.22 | 0.8371 | 134.0 | 195.0 | |
| 0.00 | 0.64 | 0.00 | 0.63 | 11.88 | 253.56 | -60.03 | 77.96 | 0.8688 | 451.0 | 441.7 | |
| 0.00 | 2.09 | 0.00 | 2.17 | 12.47 | 252.11 | -61.48 | 77.38 | 0.8811 | 41.0 | 112.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
