SDO HMI 2014-07-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.55 | 591.47 | 91.60 | 565.85 | -19.87 | 258.49 | -55.09 | 115.47 | 0.8559 | 294.0 | 28.1 | |
|
previous
or next observation for the same group /

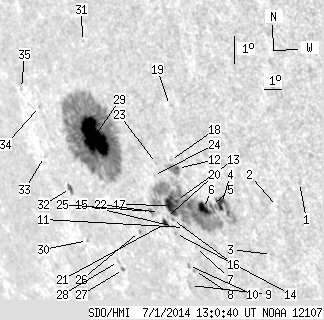

back to the solar disc SDO HMI 2014-07-01 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.93 | -20.14 | 267.22 | -46.37 | 119.00 | 0.7792 | 607.0 | 472.8 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -20.99 | 265.82 | -47.77 | 119.39 | 0.7957 | 432.0 | 382.2 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -22.63 | 264.77 | -48.82 | 120.86 | 0.8114 | 405.0 | 294.5 | |
| 6.36 | 191.66 | 5.49 | 172.36 | -21.00 | 263.00 | -50.59 | 118.27 | 0.8211 | 738.3 | -192.5 | |
| 0.54 | -4.00 | 0.48 | -4.00 | -21.09 | 262.44 | -51.15 | 118.16 | 0.8264 | 594.3 | 999999 | |
| 7.99 | -4.00 | 7.08 | -4.00 | -21.21 | 261.96 | -51.63 | 118.12 | 0.8309 | 552.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.58 | -22.56 | 260.82 | -52.77 | 119.23 | 0.8446 | -560.0 | -502.4 | |
| 0.00 | 1.18 | 0.00 | 1.11 | -23.35 | 260.31 | -53.28 | 119.93 | 0.8512 | -596.0 | -532.7 | |
| 0.00 | 2.18 | 0.00 | 2.08 | -23.88 | 259.77 | -53.82 | 120.32 | 0.8571 | -249.0 | -325.8 | |
| 0.00 | 1.91 | 0.00 | 1.80 | -23.19 | 260.07 | -53.52 | 119.67 | 0.8526 | -585.0 | -490.3 | |
| 0.00 | 1.54 | 0.00 | 1.42 | -21.90 | 260.57 | -53.01 | 118.40 | 0.8446 | -495.0 | -459.7 | |
| 1.09 | 11.44 | 0.97 | 10.26 | -19.92 | 261.20 | -52.39 | 116.37 | 0.8334 | 204.0 | -216.9 | |
| 1.09 | -4.00 | 0.99 | -4.00 | -21.00 | 260.61 | -52.98 | 117.40 | 0.8416 | -888.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.02 | -22.12 | 259.95 | -53.64 | 118.43 | 0.8504 | -361.0 | -324.0 | |
| 0.00 | 1.73 | 0.00 | 1.61 | -21.89 | 259.97 | -53.62 | 118.18 | 0.8495 | -601.0 | -476.7 | |
| 0.00 | 1.36 | 0.00 | 1.27 | -21.65 | 260.04 | -53.54 | 117.94 | 0.8483 | -556.0 | -496.9 | |
| 13.90 | -4.00 | 12.82 | -4.00 | -21.18 | 260.24 | -53.35 | 117.47 | 0.8452 | -687.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -19.66 | 260.94 | -52.64 | 115.99 | 0.8349 | 348.0 | 317.4 | |
| 0.00 | 0.82 | 0.00 | 0.71 | -17.84 | 261.70 | -51.89 | 114.14 | 0.8229 | 528.0 | 467.7 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -21.60 | 259.74 | -53.85 | 117.77 | 0.8506 | -346.0 | -355.9 | |
| 3.00 | 4.90 | 2.82 | 4.62 | -21.81 | 259.57 | -54.02 | 117.95 | 0.8526 | -281.7 | -199.0 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -21.45 | 259.43 | -54.16 | 117.50 | 0.8527 | -221.0 | -150.7 | |
| 0.00 | 1.09 | 0.00 | 1.00 | -19.80 | 260.12 | -53.47 | 115.87 | 0.8423 | -439.0 | -390.7 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -20.21 | 259.75 | -53.84 | 116.21 | 0.8466 | -81.0 | -217.8 | |
| 1.09 | 3.81 | 1.04 | 3.63 | -21.43 | 258.93 | -54.66 | 117.32 | 0.8567 | 185.3 | 56.1 | |
| 0.36 | 1.45 | 0.36 | 1.43 | -22.15 | 257.88 | -55.71 | 117.77 | 0.8668 | 493.5 | 505.1 | |
| 0.64 | 1.63 | 0.67 | 1.72 | -23.50 | 256.03 | -57.56 | 118.67 | 0.8840 | -390.0 | -322.3 | |
| 0.00 | 1.18 | 0.00 | 1.24 | -23.24 | 255.90 | -57.69 | 118.34 | 0.8843 | -162.0 | -157.1 | |
| 56.86 | 348.16 | 56.05 | 344.33 | -19.04 | 256.98 | -56.60 | 114.05 | 0.8662 | 690.8 | 169.0 | |
| 0.00 | 1.00 | 0.00 | 1.09 | -22.60 | 254.37 | -59.22 | 117.21 | 0.8937 | -301.0 | -262.2 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -15.94 | 257.77 | -55.81 | 110.76 | 0.8527 | -216.0 | -203.7 | |
| 2.63 | 4.54 | 2.83 | 4.89 | -20.87 | 254.44 | -59.15 | 115.35 | 0.8895 | 449.5 | 306.4 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -19.86 | 253.40 | -60.19 | 113.98 | 0.8950 | -543.0 | -533.3 | |
| 0.00 | 1.18 | 0.00 | 1.26 | -18.20 | 254.08 | -59.51 | 112.33 | 0.8869 | -567.0 | -512.9 | |
| 0.00 | 1.27 | 0.00 | 1.39 | -17.65 | 253.23 | -60.36 | 111.53 | 0.8922 | -314.0 | -315.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
