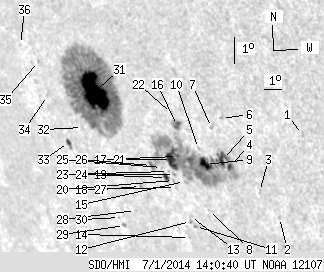

SDO HMI 2014-07-01 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.36 | 604.52 | 91.59 | 569.14 | -19.90 | 258.56 | -54.48 | 115.71 | 0.8509 | 296.9 | 37.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.91 | -20.05 | 267.27 | -45.77 | 119.16 | 0.7730 | 420.0 | 383.4 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -22.90 | 264.95 | -48.09 | 121.49 | 0.8061 | 125.0 | 163.6 | |
| 0.00 | 1.73 | 0.00 | 1.44 | -22.05 | 264.35 | -48.69 | 120.25 | 0.8081 | 479.0 | 420.2 | |
| 2.18 | 207.89 | 1.86 | 184.70 | -21.27 | 263.20 | -49.84 | 118.87 | 0.8154 | 778.3 | -180.4 | |
| 6.63 | -4.00 | 5.66 | -4.00 | -21.04 | 262.95 | -50.09 | 118.52 | 0.8169 | 752.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -19.67 | 263.51 | -49.53 | 117.13 | 0.8071 | 505.0 | 431.5 | |
| 0.00 | 1.18 | 0.00 | 1.00 | -19.99 | 262.86 | -50.17 | 117.26 | 0.8141 | 547.0 | 449.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -22.81 | 261.33 | -51.71 | 119.91 | 0.8368 | -506.0 | -435.3 | |
| 8.17 | -4.00 | 7.15 | -4.00 | -21.25 | 261.97 | -51.07 | 118.38 | 0.8262 | 536.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -20.72 | 261.85 | -51.18 | 117.73 | 0.8254 | 208.0 | 158.6 | |
| 0.00 | 1.63 | 0.00 | 1.51 | -23.40 | 260.29 | -52.74 | 120.17 | 0.8470 | -536.0 | -502.4 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -23.23 | 260.11 | -52.93 | 119.93 | 0.8480 | -653.0 | -548.2 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -23.06 | 260.21 | -52.83 | 119.77 | 0.8467 | -546.0 | -420.2 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -23.79 | 259.73 | -53.31 | 120.41 | 0.8528 | -538.0 | -516.4 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -21.87 | 260.53 | -52.50 | 118.56 | 0.8404 | -583.0 | -510.5 | |
| 3.09 | 7.18 | 2.73 | 6.34 | -19.99 | 261.09 | -51.94 | 116.62 | 0.8298 | -232.1 | -149.7 | |
| 1.00 | -4.00 | 0.90 | -4.00 | -21.04 | 260.58 | -52.45 | 117.63 | 0.8373 | -930.2 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.59 | -22.10 | 259.92 | -53.12 | 118.59 | 0.8461 | -463.0 | -404.6 | |
| 0.00 | 1.45 | 0.00 | 1.33 | -21.66 | 260.10 | -52.94 | 118.16 | 0.8433 | -547.0 | -487.0 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -21.87 | 259.93 | -53.10 | 118.33 | 0.8453 | -572.0 | -481.4 | |
| 13.26 | -4.00 | 12.06 | -4.00 | -21.16 | 260.20 | -52.84 | 117.63 | 0.8409 | -703.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.36 | -19.61 | 260.96 | -52.08 | 116.12 | 0.8298 | 354.0 | 324.9 | |
| 0.00 | 0.73 | 0.00 | 0.67 | -21.57 | 259.82 | -53.22 | 117.96 | 0.8453 | -436.0 | -377.1 | |
| 2.54 | 4.81 | 2.36 | 4.47 | -21.78 | 259.59 | -53.44 | 118.12 | 0.8478 | -295.1 | -180.6 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -21.45 | 259.50 | -53.54 | 117.71 | 0.8476 | -280.0 | -256.8 | |
| 1.63 | -4.00 | 1.54 | -4.00 | -21.41 | 258.96 | -54.07 | 117.48 | 0.8519 | 120.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -22.15 | 257.91 | -55.13 | 117.96 | 0.8623 | 618.0 | 570.1 | |
| 0.00 | 0.82 | 0.00 | 0.82 | -22.99 | 257.10 | -55.93 | 118.63 | 0.8707 | 262.0 | 256.4 | |
| 0.00 | 1.82 | 0.00 | 1.88 | -23.54 | 256.08 | -56.96 | 118.90 | 0.8798 | -513.0 | -407.8 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -23.28 | 255.95 | -57.09 | 118.57 | 0.8800 | -168.0 | -178.7 | |
| 56.86 | 351.76 | 55.21 | 342.83 | -19.05 | 256.96 | -56.07 | 114.22 | 0.8620 | 715.0 | 170.1 | |
| 0.00 | 1.00 | 0.00 | 1.02 | -20.30 | 255.56 | -57.48 | 115.19 | 0.8759 | -147.0 | -129.8 | |
| 2.00 | 4.27 | 2.12 | 4.53 | -20.84 | 254.36 | -58.68 | 115.45 | 0.8861 | 367.5 | 350.2 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -19.32 | 253.97 | -59.07 | 113.67 | 0.8858 | -405.0 | -432.7 | |
| 0.00 | 1.18 | 0.00 | 1.24 | -18.20 | 254.04 | -59.00 | 112.47 | 0.8831 | -608.0 | -481.7 | |
| 0.00 | 1.09 | 0.00 | 1.17 | -17.69 | 253.18 | -59.86 | 111.69 | 0.8886 | -437.0 | -348.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
