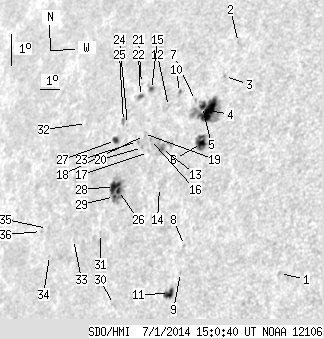

SDO HMI 2014-07-01 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.49 | 157.48 | 40.05 | 130.85 | 14.64 | 259.65 | -52.83 | 73.85 | 0.8045 | -276.9 | -113.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.11 | 11.08 | 266.18 | -46.30 | 77.48 | 0.7290 | 610.0 | 505.1 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 18.17 | 262.15 | -50.33 | 69.00 | 0.7856 | -645.0 | -574.2 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 17.08 | 261.86 | -50.62 | 70.43 | 0.7864 | -634.0 | -531.6 | |
| 17.89 | 50.58 | 14.34 | 40.61 | 15.99 | 261.45 | -51.03 | 71.89 | 0.7886 | -811.7 | -257.8 | |
| 2.54 | -4.00 | 2.05 | -4.00 | 16.11 | 261.10 | -51.38 | 71.81 | 0.7923 | -413.5 | 999999 | |
| 4.90 | 14.89 | 3.92 | 11.91 | 14.96 | 261.45 | -51.03 | 73.19 | 0.7869 | -768.3 | -547.7 | |
| 0.00 | 0.91 | 0.00 | 0.74 | 16.28 | 260.68 | -51.80 | 71.68 | 0.7969 | -397.0 | -331.2 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 11.78 | 261.53 | -50.95 | 77.21 | 0.7818 | -484.0 | -405.5 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 10.94 | 261.54 | -50.94 | 78.28 | 0.7809 | -544.0 | -511.8 | |
| 0.00 | 2.45 | 0.00 | 2.04 | 16.50 | 259.76 | -52.72 | 71.58 | 0.8063 | 36.0 | 35.7 | |
| 5.63 | 8.17 | 4.48 | 6.50 | 10.28 | 261.15 | -51.34 | 79.16 | 0.7845 | -579.2 | -346.5 | |
| 0.00 | 2.63 | 0.00 | 2.21 | 16.04 | 259.36 | -53.12 | 72.21 | 0.8096 | -202.0 | -25.9 | |
| 1.09 | 13.89 | 0.91 | 11.59 | 14.72 | 259.47 | -53.01 | 73.81 | 0.8066 | 466.4 | 213.1 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 13.52 | 259.77 | -52.72 | 75.26 | 0.8021 | -409.0 | -375.0 | |
| 1.45 | 3.45 | 1.25 | 2.98 | 16.53 | 258.24 | -54.24 | 71.80 | 0.8210 | 660.8 | 541.6 | |
| 0.00 | 1.27 | 0.00 | 1.08 | 14.98 | 258.79 | -53.69 | 73.60 | 0.8136 | 453.0 | 453.5 | |
| 0.00 | 1.36 | 0.00 | 1.15 | 14.57 | 258.83 | -53.65 | 74.09 | 0.8127 | 564.0 | 561.3 | |
| 0.00 | 0.73 | 0.00 | 0.62 | 15.09 | 258.43 | -54.05 | 73.52 | 0.8173 | 564.0 | 392.0 | |
| 0.00 | 0.54 | 0.00 | 0.47 | 15.15 | 258.35 | -54.13 | 73.46 | 0.8181 | 376.0 | 388.2 | |
| 0.00 | 0.91 | 0.00 | 0.78 | 14.72 | 258.46 | -54.02 | 73.97 | 0.8165 | 513.0 | 485.6 | |
| 0.00 | 0.73 | 0.00 | 0.64 | 16.70 | 257.62 | -54.86 | 71.70 | 0.8271 | 363.0 | 273.6 | |
| 1.09 | 3.18 | 0.95 | 2.77 | 16.29 | 257.74 | -54.74 | 72.17 | 0.8255 | 617.7 | 483.3 | |
| 0.00 | 1.45 | 0.00 | 1.25 | 14.89 | 258.12 | -54.36 | 73.81 | 0.8200 | 533.0 | 507.1 | |
| 0.00 | 0.73 | 0.00 | 0.64 | 15.39 | 257.38 | -55.10 | 73.31 | 0.8277 | 513.0 | 504.0 | |
| 0.64 | 2.54 | 0.56 | 2.25 | 15.48 | 257.12 | -55.36 | 73.24 | 0.8302 | 430.0 | 366.1 | |
| 2.09 | 29.88 | 1.81 | 25.97 | 13.34 | 257.64 | -54.85 | 75.75 | 0.8230 | -865.6 | -411.2 | |
| 2.54 | 4.00 | 2.25 | 3.54 | 14.87 | 256.91 | -55.57 | 74.00 | 0.8314 | 608.2 | 490.6 | |
| 7.45 | -26.00 | 6.50 | -26.00 | 13.45 | 257.38 | -55.11 | 75.65 | 0.8256 | -482.7 | 999999 | |
| 1.18 | -26.00 | 1.03 | -26.00 | 13.14 | 257.48 | -55.00 | 76.01 | 0.8242 | -617.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.61 | 9.83 | 258.37 | -54.11 | 79.97 | 0.8128 | 539.0 | 422.0 | |
| 0.00 | 1.00 | 0.00 | 0.88 | 11.98 | 257.08 | -55.40 | 77.46 | 0.8270 | -160.0 | -215.4 | |
| 0.00 | 0.91 | 0.00 | 0.85 | 15.33 | 255.06 | -57.43 | 73.69 | 0.8488 | -399.0 | -359.5 | |
| 0.00 | 0.64 | 0.00 | 0.58 | 11.73 | 255.64 | -56.84 | 77.89 | 0.8404 | -233.0 | -184.6 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 11.19 | 254.42 | -58.07 | 78.63 | 0.8513 | 351.0 | 338.0 | |
| 0.00 | 0.82 | 0.00 | 0.78 | 12.01 | 254.02 | -58.46 | 77.69 | 0.8552 | 490.0 | 483.0 | |
| 0.00 | 0.82 | 0.00 | 0.78 | 11.90 | 253.70 | -58.78 | 77.84 | 0.8580 | 453.0 | 390.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
