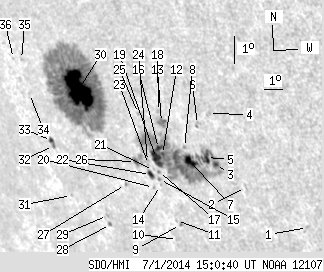

SDO HMI 2014-07-01 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.44 | 619.89 | 94.33 | 576.09 | -19.90 | 258.52 | -53.97 | 115.86 | 0.8467 | 296.9 | 34.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.94 | -23.24 | 266.82 | -45.66 | 123.00 | 0.7858 | 633.0 | 540.3 | |
| 0.00 | 2.09 | 0.00 | 1.73 | -21.99 | 264.38 | -48.11 | 120.43 | 0.8027 | 582.0 | 384.5 | |
| 2.54 | 198.43 | 2.14 | 173.67 | -21.27 | 263.21 | -49.27 | 119.11 | 0.8105 | 836.3 | -204.0 | |
| 0.00 | 2.63 | 0.00 | 2.17 | -19.57 | 263.60 | -48.88 | 117.27 | 0.8008 | 448.0 | 380.7 | |
| 6.72 | -3.00 | 5.69 | -3.00 | -21.05 | 262.85 | -49.63 | 118.71 | 0.8128 | 712.2 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.44 | -19.96 | 262.89 | -49.60 | 117.45 | 0.8088 | 502.0 | 450.1 | |
| 8.45 | -3.00 | 7.30 | -3.00 | -21.22 | 261.96 | -50.53 | 118.55 | 0.8214 | 558.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.25 | -20.76 | 261.86 | -50.62 | 117.99 | 0.8206 | 107.0 | 124.7 | |
| 0.36 | 1.36 | 0.33 | 1.25 | -23.40 | 260.29 | -52.19 | 120.39 | 0.8426 | -607.0 | -546.7 | |
| 0.00 | 2.36 | 0.00 | 2.19 | -23.93 | 259.83 | -52.66 | 120.80 | 0.8481 | -161.0 | -215.9 | |
| 0.00 | 0.73 | 0.00 | 0.67 | -23.27 | 260.15 | -52.33 | 120.19 | 0.8434 | -632.0 | -563.6 | |
| 1.27 | -3.00 | 1.13 | -3.00 | -21.05 | 260.57 | -51.91 | 117.84 | 0.8328 | -933.1 | 999999 | |
| 0.00 | 7.72 | 0.00 | 6.73 | -19.97 | 261.03 | -51.45 | 116.77 | 0.8254 | -421.0 | -214.1 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -22.11 | 259.92 | -52.57 | 118.80 | 0.8416 | -424.0 | -405.8 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -21.90 | 259.97 | -52.51 | 118.59 | 0.8405 | -552.0 | -463.9 | |
| 3.90 | -3.00 | 3.48 | -3.00 | -20.85 | 260.46 | -52.03 | 117.57 | 0.8332 | -771.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -21.63 | 260.06 | -52.42 | 118.31 | 0.8389 | -527.0 | -510.0 | |
| 0.00 | 2.18 | 0.00 | 1.90 | -19.61 | 261.04 | -51.44 | 116.35 | 0.8242 | 415.0 | 289.8 | |
| 11.44 | -3.00 | 10.28 | -3.00 | -21.20 | 260.18 | -52.31 | 117.86 | 0.8366 | -717.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.84 | -22.19 | 259.49 | -52.99 | 118.74 | 0.8454 | -461.0 | -252.4 | |
| 0.00 | 1.82 | 0.00 | 1.65 | -21.61 | 259.80 | -52.68 | 118.20 | 0.8410 | -434.0 | -338.1 | |
| 2.91 | 4.99 | 2.66 | 4.58 | -21.75 | 259.56 | -52.92 | 118.27 | 0.8435 | -225.3 | -198.7 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -21.42 | 259.63 | -52.85 | 117.92 | 0.8419 | -332.0 | -310.2 | |
| 0.00 | 1.73 | 0.00 | 1.57 | -21.32 | 259.63 | -52.86 | 117.80 | 0.8416 | -396.0 | -297.1 | |
| 0.00 | 1.45 | 0.00 | 1.30 | -19.72 | 259.93 | -52.55 | 116.09 | 0.8342 | -164.0 | -110.9 | |
| 2.27 | 9.35 | 2.10 | 8.63 | -21.35 | 258.95 | -53.53 | 117.60 | 0.8473 | 99.4 | 83.4 | |
| 0.00 | 0.91 | 0.00 | 0.87 | -22.16 | 257.94 | -54.54 | 118.16 | 0.8577 | 569.0 | 542.8 | |
| 0.64 | 1.63 | 0.65 | 1.66 | -23.58 | 256.18 | -56.30 | 119.15 | 0.8750 | -535.9 | -454.1 | |
| 0.00 | 1.45 | 0.00 | 1.47 | -23.27 | 256.20 | -56.28 | 118.82 | 0.8741 | -429.0 | -376.5 | |
| 58.30 | 360.98 | 55.82 | 346.95 | -19.06 | 256.94 | -55.55 | 114.38 | 0.8577 | 722.8 | 167.4 | |
| 0.00 | 0.73 | 0.00 | 0.77 | -22.68 | 254.38 | -58.11 | 117.62 | 0.8860 | -414.0 | -316.6 | |
| 0.82 | 5.09 | 0.85 | 5.32 | -21.02 | 254.34 | -58.15 | 115.79 | 0.8825 | 402.7 | 324.1 | |
| 1.82 | -32.00 | 1.90 | -32.00 | -20.85 | 254.31 | -58.17 | 115.60 | 0.8823 | 331.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.04 | -19.32 | 253.86 | -58.62 | 113.80 | 0.8825 | -519.0 | -495.3 | |
| 0.00 | 0.73 | 0.00 | 0.75 | -18.21 | 253.99 | -58.49 | 112.61 | 0.8792 | -531.0 | -426.0 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -18.20 | 253.50 | -58.99 | 112.47 | 0.8830 | -304.0 | -350.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
