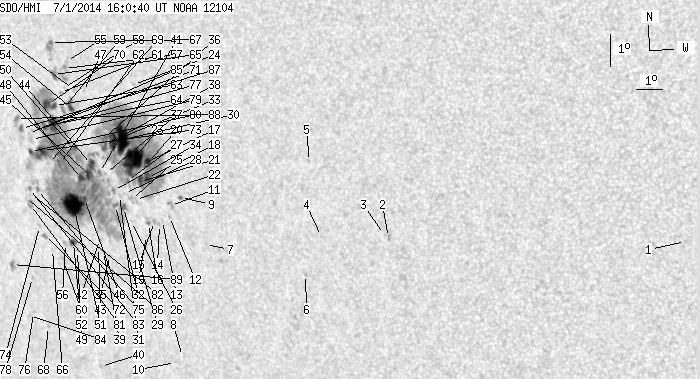

SDO HMI 2014-07-01 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 214.01 | 1129.28 | 152.08 | 803.73 | -10.70 | 267.85 | -44.08 | 107.96 | 0.7207 | 391.6 | 181.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | -12.60 | 289.89 | -22.04 | 125.76 | 0.4532 | -694.0 | -520.9 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -12.71 | 279.41 | -32.52 | 116.51 | 0.5882 | 777.0 | 639.5 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -12.62 | 279.27 | -32.65 | 116.27 | 0.5894 | 661.0 | 556.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -12.75 | 276.88 | -35.05 | 114.98 | 0.6202 | 648.0 | 508.9 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -10.40 | 276.77 | -35.16 | 111.32 | 0.6102 | 697.0 | 588.0 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -13.98 | 276.05 | -35.88 | 116.31 | 0.6367 | 712.0 | 583.9 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -13.15 | 272.23 | -39.70 | 113.09 | 0.6785 | 689.0 | 589.7 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -16.79 | 270.43 | -41.50 | 117.12 | 0.7151 | 364.0 | 430.1 | |
| 0.82 | 1.91 | 0.55 | 1.29 | -11.69 | 271.48 | -40.45 | 110.71 | 0.6815 | 720.8 | 596.8 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -17.00 | 270.07 | -41.86 | 117.21 | 0.7198 | 492.0 | 392.0 | |
| 0.00 | 3.81 | 0.00 | 2.60 | -11.96 | 271.02 | -40.91 | 110.89 | 0.6880 | 649.0 | 712.0 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -12.31 | 270.91 | -41.01 | 111.33 | 0.6906 | 635.0 | 575.7 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -12.45 | 270.60 | -41.33 | 111.38 | 0.6948 | 387.0 | 343.1 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -12.58 | 270.44 | -41.48 | 111.49 | 0.6971 | 437.0 | 432.5 | |
| 0.00 | 2.18 | 0.00 | 1.51 | -12.49 | 270.25 | -41.68 | 111.29 | 0.6990 | 677.0 | 586.2 | |
| 0.73 | 3.36 | 0.50 | 2.33 | -12.56 | 269.99 | -41.94 | 111.28 | 0.7024 | 645.5 | 624.7 | |
| 3.63 | 399.82 | 2.48 | 275.72 | -10.60 | 270.31 | -41.62 | 108.70 | 0.6915 | 1286.7 | 417.5 | |
| 8.63 | -17.00 | 5.92 | -17.00 | -11.11 | 270.22 | -41.71 | 109.37 | 0.6943 | 1037.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.95 | 269.82 | -42.11 | 111.73 | 0.7057 | 485.0 | 397.0 | |
| 0.27 | -17.00 | 0.19 | -17.00 | -10.76 | 270.16 | -41.77 | 108.87 | 0.6939 | 979.3 | 999999 | |
| 5.36 | -17.00 | 3.70 | -17.00 | -11.24 | 269.90 | -42.02 | 109.43 | 0.6986 | 636.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -11.82 | 269.58 | -42.34 | 110.10 | 0.7043 | 516.0 | 375.8 | |
| 36.59 | -17.00 | 25.25 | -17.00 | -10.56 | 269.73 | -42.20 | 108.42 | 0.6983 | 1047.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -8.21 | 270.09 | -41.84 | 105.25 | 0.6866 | -505.0 | -350.3 | |
| 0.00 | 3.09 | 0.00 | 2.15 | -11.82 | 269.41 | -42.51 | 110.04 | 0.7063 | 684.0 | 580.9 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.52 | 269.27 | -42.65 | 110.93 | 0.7105 | 404.0 | 390.0 | |
| 1.00 | -17.00 | 0.70 | -17.00 | -11.23 | 269.36 | -42.57 | 109.21 | 0.7049 | 394.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -11.64 | 269.15 | -42.78 | 109.69 | 0.7088 | 468.0 | 490.4 | |
| 2.45 | 589.15 | 1.72 | 426.99 | -12.09 | 269.02 | -42.91 | 110.24 | 0.7118 | 773.2 | 44.5 | |
| 25.15 | -17.00 | 17.41 | -17.00 | -9.94 | 269.37 | -42.56 | 107.44 | 0.7006 | 1078.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.15 | -11.71 | 268.93 | -43.00 | 109.70 | 0.7116 | 602.0 | 517.1 | |
| 1.36 | -29.00 | 0.96 | -29.00 | -12.04 | 268.69 | -43.24 | 110.05 | 0.7155 | 190.3 | 999999 | |
| 10.08 | -17.00 | 7.03 | -17.00 | -9.99 | 268.98 | -42.95 | 107.37 | 0.7053 | 634.3 | 999999 | |
| 0.54 | 2.72 | 0.38 | 1.92 | -11.57 | 268.70 | -43.23 | 109.41 | 0.7138 | 636.7 | 462.5 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -13.64 | 268.08 | -43.85 | 111.93 | 0.7281 | -690.0 | -533.2 | |
| 2.36 | -17.00 | 1.65 | -17.00 | -9.88 | 268.66 | -43.27 | 107.10 | 0.7088 | 579.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -11.04 | 268.46 | -43.47 | 108.61 | 0.7148 | 703.0 | 589.8 | |
| 4.27 | -17.00 | 3.00 | -17.00 | -10.16 | 268.57 | -43.36 | 107.46 | 0.7107 | 461.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -13.52 | 267.84 | -44.09 | 111.68 | 0.7302 | -449.0 | -376.8 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -17.25 | 266.68 | -45.25 | 115.96 | 0.7566 | 593.0 | 439.6 | |
| 1.00 | -29.00 | 0.71 | -29.00 | -11.02 | 268.20 | -43.73 | 108.49 | 0.7177 | 689.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.18 | -13.14 | 267.76 | -44.17 | 111.15 | 0.7299 | -460.0 | -423.3 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -13.40 | 267.65 | -44.28 | 111.45 | 0.7319 | -274.0 | -239.1 | |
| 5.45 | -29.00 | 3.88 | -29.00 | -10.78 | 267.90 | -44.03 | 108.06 | 0.7204 | 674.1 | 999999 | |
| 6.81 | -29.00 | 4.87 | -29.00 | -11.10 | 267.71 | -44.22 | 108.42 | 0.7236 | -30.4 | 999999 | |
| 0.27 | -29.00 | 0.20 | -29.00 | -11.86 | 267.38 | -44.55 | 109.32 | 0.7298 | -880.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -8.50 | 267.94 | -43.99 | 104.97 | 0.7134 | 593.0 | 437.0 | |
| 4.63 | -29.00 | 3.33 | -29.00 | -11.24 | 267.38 | -44.55 | 108.49 | 0.7278 | 326.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -13.53 | 266.69 | -45.24 | 111.25 | 0.7430 | -755.0 | -607.2 | |
| 2.72 | -29.00 | 1.96 | -29.00 | -10.30 | 267.25 | -44.68 | 107.20 | 0.7265 | 580.8 | 999999 | |
| 30.87 | -29.00 | 22.53 | -29.00 | -12.07 | 266.85 | -45.08 | 109.41 | 0.7364 | -965.0 | 999999 | |
| 3.18 | 4.81 | 2.35 | 3.55 | -13.28 | 266.57 | -45.36 | 110.88 | 0.7434 | -780.6 | -632.8 | |
| 0.00 | 2.27 | 0.00 | 1.61 | -8.45 | 267.51 | -44.42 | 104.78 | 0.7183 | 646.0 | 644.3 | |
| 3.72 | 8.99 | 2.66 | 6.41 | -9.02 | 267.29 | -44.63 | 105.49 | 0.7223 | 695.3 | 393.4 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -7.59 | 267.33 | -44.60 | 103.55 | 0.7182 | 596.0 | 501.5 | |
| 0.00 | 2.91 | 0.00 | 2.16 | -13.33 | 266.20 | -45.73 | 110.80 | 0.7476 | -650.0 | -540.8 | |
| 0.00 | 3.00 | 0.00 | 2.13 | -7.81 | 267.21 | -44.72 | 103.82 | 0.7201 | 796.0 | 758.6 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -8.40 | 267.13 | -44.80 | 104.60 | 0.7226 | 401.0 | 420.1 | |
| 1.45 | 4.18 | 1.04 | 3.00 | -9.10 | 266.93 | -45.00 | 105.48 | 0.7267 | 780.6 | 580.8 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -13.81 | 265.94 | -45.98 | 111.33 | 0.7520 | -715.0 | -623.3 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -8.57 | 266.93 | -45.00 | 104.76 | 0.7254 | 491.0 | 372.0 | |
| 2.81 | -29.00 | 2.05 | -29.00 | -10.80 | 266.49 | -45.43 | 107.61 | 0.7365 | 198.6 | 999999 | |
| 2.63 | -29.00 | 1.90 | -29.00 | -8.98 | 266.60 | -45.33 | 105.23 | 0.7303 | 768.3 | 999999 | |
| 12.08 | -29.00 | 8.77 | -29.00 | -9.58 | 266.45 | -45.47 | 105.98 | 0.7335 | 975.6 | 999999 | |
| 2.54 | 11.17 | 1.83 | 8.00 | -8.02 | 266.70 | -45.23 | 103.95 | 0.7266 | 559.5 | 635.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -13.54 | 265.56 | -46.37 | 110.84 | 0.7552 | -296.0 | -401.0 | |
| 1.18 | 10.26 | 0.84 | 7.36 | -7.03 | 266.71 | -45.22 | 102.61 | 0.7242 | -295.5 | 331.8 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -16.03 | 264.66 | -47.27 | 113.63 | 0.7728 | -621.0 | -519.8 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -10.82 | 266.00 | -45.93 | 107.47 | 0.7421 | 258.0 | 211.8 | |
| 9.99 | -29.00 | 7.26 | -29.00 | -8.96 | 266.29 | -45.64 | 105.11 | 0.7337 | 669.4 | 999999 | |
| 3.90 | -29.00 | 2.86 | -29.00 | -9.66 | 266.04 | -45.89 | 105.96 | 0.7385 | 758.9 | 999999 | |
| 1.00 | 2.54 | 0.75 | 1.92 | -13.11 | 265.30 | -46.63 | 110.20 | 0.7566 | -638.6 | -511.1 | |
| 6.90 | -29.00 | 5.09 | -29.00 | -10.42 | 265.81 | -46.12 | 106.88 | 0.7431 | 628.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -12.83 | 265.14 | -46.79 | 109.79 | 0.7575 | -569.0 | -420.6 | |
| 0.73 | 5.99 | 0.54 | 4.49 | -11.66 | 265.33 | -46.60 | 108.34 | 0.7520 | -650.9 | -306.9 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -15.60 | 264.09 | -47.84 | 112.89 | 0.7772 | -716.0 | -631.0 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -9.80 | 265.48 | -46.45 | 105.98 | 0.7452 | 498.0 | 463.0 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -14.48 | 264.38 | -47.55 | 111.60 | 0.7706 | -511.0 | -420.9 | |
| 0.00 | 2.81 | 0.00 | 2.09 | -10.09 | 265.38 | -46.55 | 106.32 | 0.7471 | 337.0 | 318.6 | |
| 1.73 | -29.00 | 1.29 | -29.00 | -10.47 | 265.26 | -46.67 | 106.78 | 0.7494 | 334.9 | 999999 | |
| 0.00 | 4.90 | 0.00 | 3.71 | -12.14 | 264.89 | -47.03 | 108.83 | 0.7581 | -606.0 | -559.7 | |
| 0.00 | 1.73 | 0.00 | 1.30 | -11.79 | 264.97 | -46.95 | 108.41 | 0.7562 | -356.0 | -445.3 | |
| 0.64 | 2.81 | 0.48 | 2.12 | -11.64 | 264.96 | -46.96 | 108.20 | 0.7559 | -569.9 | -375.3 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -15.71 | 263.87 | -48.06 | 112.94 | 0.7798 | -487.0 | -429.2 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -9.90 | 265.28 | -46.65 | 106.05 | 0.7477 | 593.0 | 421.7 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -11.93 | 264.71 | -47.21 | 108.49 | 0.7594 | -335.0 | -254.7 | |
| 1.82 | 8.72 | 1.36 | 6.52 | -9.76 | 264.99 | -46.94 | 105.78 | 0.7506 | 634.2 | 454.5 | |
| 1.27 | -87.00 | 0.95 | -87.00 | -9.45 | 264.81 | -47.11 | 105.33 | 0.7517 | 694.6 | 999999 | |
| 1.45 | 4.45 | 1.14 | 3.50 | -14.09 | 263.55 | -48.38 | 110.83 | 0.7780 | -590.9 | -534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
