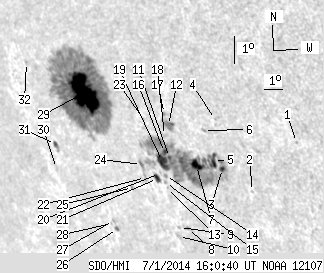

SDO HMI 2014-07-01 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.43 | 617.47 | 88.58 | 566.23 | -19.88 | 258.52 | -53.41 | 116.03 | 0.8420 | 349.4 | 38.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.76 | -20.27 | 267.15 | -44.78 | 119.89 | 0.7644 | 469.0 | 365.5 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -22.00 | 264.36 | -47.57 | 120.68 | 0.7979 | 471.0 | 450.0 | |
| 2.27 | 205.49 | 1.89 | 177.79 | -21.28 | 263.20 | -48.73 | 119.34 | 0.8056 | 780.4 | -181.8 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -19.65 | 263.55 | -48.37 | 117.57 | 0.7964 | 510.0 | 477.2 | |
| 5.99 | -3.00 | 5.01 | -3.00 | -21.06 | 262.85 | -49.08 | 118.94 | 0.8079 | 717.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.51 | -20.04 | 262.80 | -49.13 | 117.73 | 0.8048 | 536.0 | 451.1 | |
| 7.63 | -3.00 | 6.52 | -3.00 | -21.23 | 261.91 | -50.02 | 118.77 | 0.8169 | 554.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.56 | -23.41 | 260.33 | -51.60 | 120.62 | 0.8378 | -676.0 | -565.1 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -23.39 | 259.91 | -52.02 | 120.44 | 0.8412 | -340.0 | -364.8 | |
| 0.00 | 2.36 | 0.00 | 2.17 | -23.71 | 259.68 | -52.25 | 120.71 | 0.8441 | -508.0 | -396.2 | |
| 1.18 | -3.00 | 1.04 | -3.00 | -21.02 | 260.61 | -51.31 | 118.03 | 0.8276 | -950.8 | 999999 | |
| 0.00 | 9.08 | 0.00 | 7.82 | -19.94 | 261.07 | -50.86 | 116.95 | 0.8201 | -356.0 | -183.2 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -22.08 | 259.92 | -52.01 | 118.97 | 0.8369 | -386.0 | -423.1 | |
| 0.00 | 1.91 | 0.00 | 1.70 | -21.64 | 260.09 | -51.83 | 118.54 | 0.8340 | -711.0 | -532.5 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -21.88 | 259.97 | -51.96 | 118.76 | 0.8358 | -575.0 | -529.8 | |
| 2.45 | -3.00 | 2.16 | -3.00 | -20.86 | 260.43 | -51.50 | 117.78 | 0.8287 | -781.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.33 | -19.55 | 261.03 | -50.89 | 116.49 | 0.8192 | 396.0 | 340.1 | |
| 0.00 | 2.36 | 0.00 | 2.05 | -20.29 | 260.70 | -51.23 | 117.22 | 0.8245 | -570.0 | -547.7 | |
| 11.80 | -3.00 | 10.48 | -3.00 | -21.17 | 260.17 | -51.76 | 118.03 | 0.8319 | -725.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.14 | -21.58 | 259.80 | -52.13 | 118.37 | 0.8363 | -381.0 | -313.0 | |
| 3.27 | 4.90 | 2.96 | 4.43 | -21.76 | 259.60 | -52.33 | 118.50 | 0.8385 | -222.6 | -138.7 | |
| 0.00 | 2.54 | 0.00 | 2.33 | -21.75 | 258.95 | -52.98 | 118.26 | 0.8439 | 155.0 | 155.5 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -19.76 | 259.84 | -52.09 | 116.31 | 0.8304 | 206.0 | 181.2 | |
| 1.00 | 4.09 | 0.91 | 3.74 | -21.32 | 258.96 | -52.97 | 117.77 | 0.8425 | 180.3 | 64.2 | |
| 0.00 | 1.27 | 0.00 | 1.20 | -22.13 | 258.03 | -53.90 | 118.35 | 0.8526 | 395.0 | 485.6 | |
| 1.09 | 2.27 | 1.09 | 2.27 | -23.58 | 256.28 | -55.65 | 119.37 | 0.8702 | -543.5 | -458.6 | |
| 0.00 | 1.18 | 0.00 | 1.18 | -23.31 | 256.22 | -55.71 | 119.05 | 0.8699 | -385.0 | -401.8 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -23.42 | 256.03 | -55.90 | 119.11 | 0.8717 | -184.0 | -205.3 | |
| 58.02 | 360.95 | 54.74 | 341.93 | -19.03 | 256.97 | -54.96 | 114.53 | 0.8529 | 778.4 | 175.2 | |
| 0.00 | 1.54 | 0.00 | 1.62 | -21.68 | 253.80 | -58.13 | 116.52 | 0.8839 | -251.0 | -202.5 | |
| 1.73 | 3.81 | 1.78 | 3.93 | -20.86 | 254.25 | -57.68 | 115.76 | 0.8787 | 474.1 | 413.4 | |
| 0.00 | 1.36 | 0.00 | 1.38 | -18.18 | 254.00 | -57.93 | 112.73 | 0.8748 | -298.0 | -331.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
