SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.27 | 176.87 | 40.82 | 108.18 | 12.99 | 276.63 | -34.74 | 71.64 | 0.5868 | -269.9 | -158.7 | |
|
previous
or next observation for the same group /

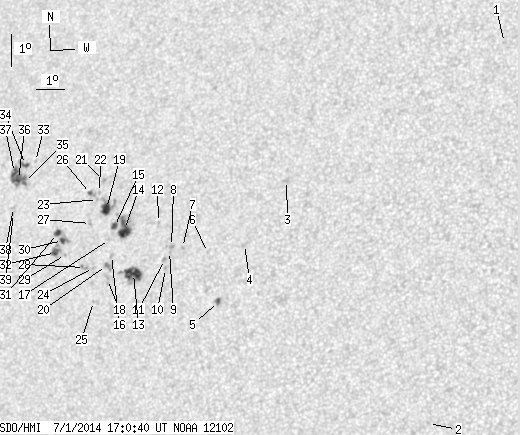

back to the solar disc SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.80 | 19.13 | 290.21 | -21.16 | 50.37 | 0.4447 | -658.0 | -492.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 7.27 | 288.74 | -22.63 | 78.18 | 0.3916 | -722.0 | -516.5 | |
| 0.00 | 3.27 | 0.00 | 1.87 | 14.65 | 283.17 | -28.20 | 65.41 | 0.5048 | -761.0 | -646.5 | |
| 0.00 | 2.27 | 0.00 | 1.31 | 12.63 | 281.93 | -29.44 | 69.93 | 0.5126 | -661.0 | -537.6 | |
| 1.54 | 3.27 | 0.89 | 1.89 | 10.86 | 281.21 | -30.16 | 73.63 | 0.5163 | -950.0 | -755.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 12.35 | 280.63 | -30.74 | 71.09 | 0.5298 | -638.0 | -454.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 12.49 | 279.70 | -31.67 | 71.28 | 0.5433 | -889.0 | -730.3 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 12.51 | 279.29 | -32.08 | 71.42 | 0.5491 | -824.0 | -700.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 12.35 | 279.24 | -32.13 | 71.72 | 0.5493 | -819.0 | -676.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 11.82 | 279.17 | -32.21 | 72.69 | 0.5485 | -757.0 | -662.4 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 12.10 | 279.09 | -32.28 | 72.23 | 0.5505 | -755.0 | -647.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.24 | 278.71 | -32.67 | 70.41 | 0.5598 | -625.0 | -484.2 | |
| 14.26 | 23.88 | 8.54 | 14.31 | 11.64 | 278.00 | -33.37 | 73.47 | 0.5641 | -914.2 | -476.6 | |
| 13.07 | 33.69 | 7.91 | 20.39 | 12.99 | 277.47 | -33.90 | 71.36 | 0.5758 | -952.0 | -571.6 | |
| 2.63 | -14.00 | 1.60 | -14.00 | 13.07 | 277.08 | -34.29 | 71.38 | 0.5813 | -725.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.49 | 12.17 | 277.10 | -34.27 | 72.88 | 0.5781 | -825.0 | -497.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.66 | 276.95 | -34.42 | 72.11 | 0.5817 | -402.0 | -381.9 | |
| 0.00 | 3.81 | 0.00 | 2.31 | 11.43 | 277.06 | -34.32 | 74.16 | 0.5766 | -277.0 | -153.3 | |
| 7.63 | 15.07 | 4.67 | 9.22 | 13.62 | 276.69 | -34.69 | 70.62 | 0.5885 | -827.7 | -588.1 | |
| 0.82 | 4.27 | 0.50 | 2.59 | 11.86 | 276.96 | -34.42 | 73.47 | 0.5791 | -591.0 | -544.9 | |
| 0.00 | 2.63 | 0.00 | 1.62 | 14.48 | 276.42 | -34.95 | 69.32 | 0.5951 | -697.0 | -453.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 14.11 | 276.33 | -35.04 | 69.97 | 0.5949 | -631.0 | -514.4 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 13.89 | 276.29 | -35.08 | 70.34 | 0.5946 | -487.0 | -414.8 | |
| 0.00 | 1.91 | 0.00 | 1.16 | 11.78 | 276.48 | -34.90 | 73.76 | 0.5855 | 554.0 | 449.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 10.74 | 276.62 | -34.75 | 75.48 | 0.5807 | -639.0 | -572.1 | |
| 1.00 | 3.90 | 0.62 | 2.41 | 14.07 | 275.99 | -35.38 | 70.17 | 0.5992 | -522.0 | -479.1 | |
| 0.00 | 2.63 | 0.00 | 1.62 | 13.14 | 276.15 | -35.22 | 71.62 | 0.5940 | -629.0 | -476.4 | |
| 0.00 | 3.09 | 0.00 | 1.89 | 11.77 | 276.13 | -35.24 | 73.89 | 0.5901 | 701.0 | 686.6 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 12.15 | 275.35 | -36.03 | 73.52 | 0.6018 | 567.0 | 480.6 | |
| 2.45 | 12.89 | 1.52 | 8.02 | 12.58 | 275.16 | -36.21 | 72.89 | 0.6055 | 935.6 | 649.8 | |
| 2.81 | -30.00 | 1.75 | -30.00 | 12.79 | 274.93 | -36.44 | 72.62 | 0.6092 | 872.8 | 999999 | |
| 3.54 | 9.17 | 2.20 | 5.71 | 12.20 | 274.95 | -36.42 | 73.57 | 0.6072 | 781.0 | 638.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 15.00 | 273.65 | -37.72 | 69.61 | 0.6327 | 658.0 | 525.0 | |
| 2.27 | 5.18 | 1.46 | 3.32 | 14.89 | 273.28 | -38.10 | 69.91 | 0.6371 | 847.6 | 557.2 | |
| 1.63 | 22.70 | 1.05 | 14.58 | 14.36 | 273.34 | -38.03 | 70.70 | 0.6346 | 950.1 | 635.8 | |
| 8.26 | -35.00 | 5.30 | -35.00 | 14.42 | 273.09 | -38.28 | 70.71 | 0.6380 | 866.9 | 999999 | |
| 4.36 | -35.00 | 2.81 | -35.00 | 14.63 | 272.89 | -38.49 | 70.45 | 0.6412 | 628.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.05 | 13.55 | 273.06 | -38.31 | 72.06 | 0.6358 | 821.0 | 654.1 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 13.36 | 273.10 | -38.28 | 72.33 | 0.6348 | 513.0 | 522.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
