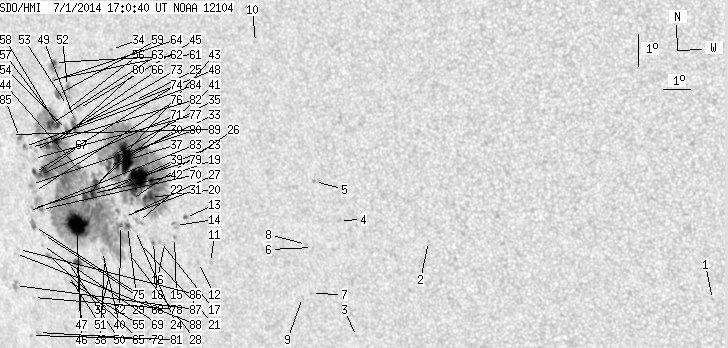

SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.57 | 1141.27 | 153.03 | 804.90 | -10.71 | 267.84 | -43.54 | 108.17 | 0.7144 | 388.2 | 186.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | -13.81 | 290.43 | -20.94 | 129.34 | 0.4507 | -636.0 | -527.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -12.19 | 280.73 | -30.65 | 116.97 | 0.5612 | 741.0 | 572.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.29 | 277.56 | -33.81 | 119.53 | 0.6191 | 621.0 | 516.8 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -11.61 | 277.52 | -33.85 | 113.95 | 0.5993 | 585.0 | 477.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -10.41 | 276.74 | -34.63 | 111.62 | 0.6035 | 680.0 | 588.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -12.50 | 276.37 | -35.01 | 114.62 | 0.6184 | 685.0 | 565.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -13.96 | 276.08 | -35.29 | 116.64 | 0.6295 | 718.0 | 625.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -12.41 | 276.15 | -35.22 | 114.37 | 0.6206 | 552.0 | 423.0 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -14.10 | 275.71 | -35.67 | 116.61 | 0.6348 | 161.0 | 212.1 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -6.15 | 274.95 | -36.42 | 104.04 | 0.6107 | 657.0 | 521.1 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -13.10 | 272.25 | -39.12 | 113.30 | 0.6714 | 592.0 | 460.0 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -13.11 | 271.76 | -39.61 | 113.09 | 0.6773 | 641.0 | 539.1 | |
| 0.82 | 2.00 | 0.55 | 1.34 | -11.70 | 271.50 | -39.88 | 110.98 | 0.6747 | 707.2 | 610.7 | |
| 0.00 | 4.00 | 0.00 | 2.69 | -11.97 | 271.04 | -40.33 | 111.15 | 0.6812 | 633.0 | 687.6 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -12.35 | 270.93 | -40.44 | 111.64 | 0.6840 | 647.0 | 588.6 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -12.55 | 270.48 | -40.90 | 111.72 | 0.6902 | 346.0 | 389.0 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -12.50 | 270.32 | -41.05 | 111.57 | 0.6918 | 577.0 | 523.7 | |
| 0.00 | 2.18 | 0.00 | 1.50 | -12.51 | 270.03 | -41.34 | 111.46 | 0.6952 | 714.0 | 636.5 | |
| 5.54 | 393.79 | 3.75 | 269.28 | -10.61 | 270.33 | -41.04 | 108.95 | 0.6846 | 1320.3 | 423.0 | |
| 12.80 | -19.00 | 8.72 | -19.00 | -11.12 | 270.16 | -41.21 | 109.59 | 0.6885 | 953.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.20 | -12.59 | 269.47 | -41.91 | 111.33 | 0.7021 | 331.0 | 273.3 | |
| 0.00 | 4.72 | 0.00 | 3.26 | -11.89 | 269.52 | -41.85 | 110.40 | 0.6989 | 607.0 | 561.9 | |
| 37.41 | -19.00 | 25.60 | -19.00 | -10.57 | 269.72 | -41.66 | 108.65 | 0.6919 | 1059.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -12.18 | 269.34 | -42.04 | 110.72 | 0.7021 | 320.0 | 400.0 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -8.10 | 269.96 | -41.41 | 105.24 | 0.6811 | -698.0 | -484.2 | |
| 0.82 | -19.00 | 0.56 | -19.00 | -11.21 | 269.35 | -42.02 | 109.39 | 0.6984 | 362.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -11.68 | 269.18 | -42.19 | 109.98 | 0.7021 | 535.0 | 472.4 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -12.89 | 268.90 | -42.48 | 111.50 | 0.7098 | 627.0 | 536.6 | |
| 2.63 | 587.19 | 1.83 | 421.26 | -12.07 | 269.02 | -42.35 | 110.44 | 0.7053 | 757.7 | 60.4 | |
| 26.24 | -19.00 | 18.01 | -19.00 | -9.92 | 269.36 | -42.01 | 107.61 | 0.6939 | 1114.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -11.75 | 268.96 | -42.42 | 109.99 | 0.7050 | 583.0 | 545.9 | |
| 1.27 | -29.00 | 0.89 | -29.00 | -12.05 | 268.73 | -42.64 | 110.29 | 0.7086 | 301.3 | 999999 | |
| 10.35 | -19.00 | 7.15 | -19.00 | -9.97 | 268.98 | -42.39 | 107.54 | 0.6987 | 677.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -6.55 | 269.19 | -42.18 | 102.77 | 0.6863 | 521.0 | 462.1 | |
| 2.45 | -19.00 | 1.70 | -19.00 | -9.88 | 268.70 | -42.67 | 107.32 | 0.7018 | 581.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -13.62 | 267.92 | -43.46 | 112.07 | 0.7236 | -591.0 | -474.6 | |
| 4.36 | -19.00 | 3.03 | -19.00 | -10.17 | 268.57 | -42.81 | 107.67 | 0.7042 | 474.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -13.15 | 267.81 | -43.56 | 111.41 | 0.7231 | -398.0 | -434.9 | |
| 1.09 | -29.00 | 0.77 | -29.00 | -11.03 | 268.20 | -43.17 | 108.71 | 0.7113 | 694.2 | 999999 | |
| 0.00 | 3.72 | 0.00 | 2.66 | -12.90 | 267.78 | -43.60 | 111.06 | 0.7226 | -290.0 | -274.0 | |
| 6.17 | -29.00 | 4.35 | -29.00 | -10.79 | 267.90 | -43.47 | 108.27 | 0.7140 | 643.1 | 999999 | |
| 6.81 | -29.00 | 4.82 | -29.00 | -11.08 | 267.72 | -43.65 | 108.60 | 0.7170 | -99.1 | 999999 | |
| 7.08 | -29.00 | 5.05 | -29.00 | -11.21 | 267.39 | -43.98 | 108.66 | 0.7213 | 210.0 | 999999 | |
| 2.91 | -29.00 | 2.07 | -29.00 | -10.31 | 267.26 | -44.12 | 107.40 | 0.7200 | 590.4 | 999999 | |
| 0.00 | 4.00 | 0.00 | 2.81 | -8.43 | 267.56 | -43.81 | 104.94 | 0.7110 | 694.0 | 641.7 | |
| 4.00 | 7.99 | 2.92 | 5.84 | -13.29 | 266.59 | -44.78 | 111.11 | 0.7371 | -833.3 | -565.6 | |
| 31.96 | -29.00 | 23.10 | -29.00 | -12.08 | 266.82 | -44.55 | 109.61 | 0.7305 | -999.8 | 999999 | |
| 4.36 | 10.08 | 3.08 | 7.12 | -9.00 | 267.31 | -44.07 | 105.63 | 0.7156 | 707.8 | 498.1 | |
| 0.82 | -48.00 | 0.58 | -48.00 | -8.75 | 267.34 | -44.03 | 105.30 | 0.7145 | 557.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.40 | -13.30 | 266.19 | -45.18 | 110.98 | 0.7416 | -689.0 | -544.8 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -13.72 | 266.09 | -45.29 | 111.48 | 0.7441 | -634.0 | -580.6 | |
| 0.91 | 16.25 | 0.64 | 11.50 | -7.76 | 267.18 | -44.19 | 103.90 | 0.7138 | 831.7 | 677.3 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -8.35 | 267.10 | -44.27 | 104.69 | 0.7163 | 507.0 | 393.7 | |
| 1.63 | 4.18 | 1.16 | 2.97 | -9.10 | 266.94 | -44.43 | 105.67 | 0.7202 | 784.3 | 569.9 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -13.85 | 265.92 | -45.45 | 111.58 | 0.7464 | -680.0 | -560.0 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -8.54 | 266.94 | -44.43 | 104.90 | 0.7187 | 399.0 | 348.6 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -9.08 | 266.73 | -44.64 | 105.57 | 0.7226 | 468.0 | 469.8 | |
| 3.09 | -29.00 | 2.21 | -29.00 | -8.99 | 266.57 | -44.81 | 105.40 | 0.7242 | 778.3 | 999999 | |
| 2.91 | -52.00 | 2.07 | -52.00 | -8.02 | 266.71 | -44.66 | 104.13 | 0.7200 | 569.2 | 999999 | |
| 11.53 | -29.00 | 8.30 | -29.00 | -9.56 | 266.43 | -44.94 | 106.12 | 0.7274 | 985.6 | 999999 | |
| 1.91 | 11.99 | 1.35 | 8.50 | -7.03 | 266.72 | -44.66 | 102.77 | 0.7176 | -136.5 | 389.7 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -7.56 | 266.60 | -44.77 | 103.47 | 0.7202 | 580.0 | 546.1 | |
| 7.90 | -29.00 | 5.68 | -29.00 | -8.94 | 266.31 | -45.06 | 105.25 | 0.7271 | 699.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -7.63 | 266.42 | -44.95 | 103.51 | 0.7225 | 105.0 | 82.1 | |
| 1.00 | 2.45 | 0.75 | 1.83 | -13.11 | 265.34 | -46.04 | 110.42 | 0.7503 | -668.1 | -536.2 | |
| 2.91 | -29.00 | 2.11 | -29.00 | -9.63 | 266.02 | -45.35 | 106.09 | 0.7323 | 787.8 | 999999 | |
| 5.81 | -29.00 | 4.25 | -29.00 | -10.43 | 265.74 | -45.63 | 107.05 | 0.7377 | 663.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -12.45 | 265.27 | -46.10 | 109.54 | 0.7489 | -622.0 | -448.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -12.81 | 265.14 | -46.23 | 109.95 | 0.7514 | -488.0 | -473.7 | |
| 0.91 | 9.72 | 0.67 | 7.20 | -11.66 | 265.36 | -46.02 | 108.55 | 0.7456 | -670.3 | -164.8 | |
| 1.45 | -29.00 | 1.07 | -29.00 | -10.56 | 265.54 | -45.83 | 107.16 | 0.7403 | -398.6 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.83 | -15.61 | 264.19 | -47.18 | 113.14 | 0.7705 | -610.0 | -524.3 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -9.81 | 265.46 | -45.92 | 106.15 | 0.7392 | 564.0 | 502.0 | |
| 2.00 | -29.00 | 1.47 | -29.00 | -10.51 | 265.28 | -46.09 | 107.01 | 0.7431 | 326.8 | 999999 | |
| 1.36 | 5.08 | 1.02 | 3.81 | -12.21 | 264.92 | -46.46 | 109.11 | 0.7521 | -573.1 | -410.1 | |
| 0.00 | 1.91 | 0.00 | 1.41 | -11.10 | 265.16 | -46.21 | 107.76 | 0.7461 | -311.0 | -226.8 | |
| 0.00 | 4.81 | 0.00 | 3.54 | -10.07 | 265.32 | -46.05 | 106.45 | 0.7414 | 401.0 | 344.3 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -14.49 | 264.29 | -47.08 | 111.78 | 0.7658 | -535.0 | -498.2 | |
| 0.00 | 2.00 | 0.00 | 1.49 | -11.65 | 264.95 | -46.42 | 108.39 | 0.7500 | -673.0 | -557.2 | |
| 0.00 | 3.18 | 0.00 | 2.36 | -10.89 | 265.07 | -46.30 | 107.45 | 0.7465 | -130.0 | -104.6 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -15.72 | 263.83 | -47.54 | 113.14 | 0.7746 | -528.0 | -446.9 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -9.73 | 265.25 | -46.12 | 105.98 | 0.7413 | 638.0 | 538.8 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -11.75 | 264.75 | -46.62 | 108.46 | 0.7525 | -320.0 | -297.3 | |
| 1.09 | 2.91 | 0.81 | 2.15 | -9.70 | 264.98 | -46.39 | 105.87 | 0.7442 | 620.1 | 502.6 | |
| 1.27 | 3.72 | 0.94 | 2.76 | -9.43 | 264.81 | -46.57 | 105.46 | 0.7455 | 690.6 | 525.5 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -12.97 | 264.00 | -47.38 | 109.77 | 0.7642 | -351.0 | -290.7 | |
| 0.00 | 4.81 | 0.00 | 3.74 | -14.13 | 263.55 | -47.83 | 111.07 | 0.7724 | -676.0 | -555.9 | |
| 0.00 | 1.45 | 0.00 | 1.12 | -13.11 | 263.82 | -47.55 | 109.88 | 0.7664 | -465.0 | -430.6 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -9.35 | 264.46 | -46.91 | 105.25 | 0.7492 | 338.0 | 303.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
