SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.29 | 158.20 | 45.37 | 127.99 | 14.80 | 259.78 | -51.59 | 73.46 | 0.7923 | -388.6 | -95.3 | |
|
previous
or next observation for the same group /

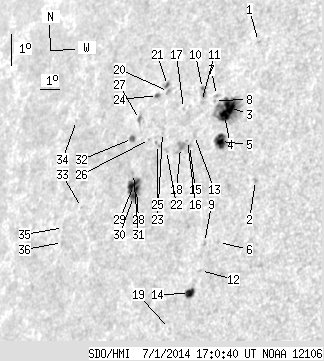

back to the solar disc SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.06 | 18.15 | 262.20 | -49.18 | 68.75 | 0.7738 | -661.0 | -511.5 | |
| 0.00 | 1.91 | 0.00 | 1.43 | 13.82 | 263.46 | -47.92 | 74.08 | 0.7517 | -604.0 | -448.5 | |
| 10.99 | 55.66 | 8.60 | 43.57 | 16.04 | 261.53 | -49.85 | 71.59 | 0.7764 | -897.0 | -351.2 | |
| 8.17 | -3.00 | 6.41 | -3.00 | 15.78 | 261.37 | -50.01 | 71.96 | 0.7776 | -798.0 | 999999 | |
| 10.71 | 14.07 | 8.37 | 11.00 | 14.97 | 261.44 | -49.94 | 72.98 | 0.7755 | -741.5 | -447.7 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 11.85 | 262.21 | -49.16 | 76.88 | 0.7626 | -316.0 | -350.8 | |
| 0.00 | 1.73 | 0.00 | 1.37 | 16.39 | 260.76 | -50.62 | 71.31 | 0.7850 | -392.0 | -307.1 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 16.23 | 260.71 | -50.66 | 71.52 | 0.7852 | -322.0 | -253.8 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 11.82 | 261.54 | -49.83 | 77.01 | 0.7698 | -444.0 | -345.8 | |
| 0.54 | 5.36 | 0.44 | 4.33 | 16.58 | 259.98 | -51.40 | 71.23 | 0.7933 | -423.7 | -78.6 | |
| 0.00 | 1.27 | 0.00 | 1.03 | 16.17 | 260.07 | -51.30 | 71.71 | 0.7916 | 418.0 | 362.1 | |
| 0.00 | 0.91 | 0.00 | 0.70 | 10.96 | 261.55 | -49.82 | 78.13 | 0.7687 | -570.0 | -519.7 | |
| 0.00 | 2.00 | 0.00 | 1.61 | 15.11 | 260.09 | -51.28 | 73.05 | 0.7897 | -309.0 | -285.8 | |
| 5.72 | 7.45 | 4.44 | 5.78 | 10.23 | 261.18 | -50.19 | 79.11 | 0.7721 | -600.4 | -326.4 | |
| 0.00 | 1.45 | 0.00 | 1.17 | 14.79 | 259.94 | -51.43 | 73.48 | 0.7907 | -377.0 | -297.7 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 14.94 | 259.79 | -51.58 | 73.31 | 0.7925 | -422.0 | -326.7 | |
| 0.00 | 1.00 | 0.00 | 0.82 | 15.92 | 259.24 | -52.13 | 72.18 | 0.7996 | -360.0 | -243.2 | |
| 0.00 | 7.54 | 0.00 | 6.13 | 14.71 | 259.51 | -51.86 | 73.65 | 0.7950 | 494.0 | 368.1 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 9.13 | 260.43 | -50.94 | 80.61 | 0.7793 | 508.0 | 431.2 | |
| 0.00 | 2.27 | 0.00 | 1.91 | 16.42 | 258.26 | -53.11 | 71.75 | 0.8100 | 761.0 | 632.6 | |
| 1.09 | 2.91 | 0.92 | 2.45 | 16.60 | 258.13 | -53.24 | 71.54 | 0.8115 | 613.1 | 514.7 | |
| 0.00 | 1.73 | 0.00 | 1.42 | 14.59 | 258.83 | -52.55 | 73.91 | 0.8018 | 704.0 | 522.5 | |
| 0.00 | 0.73 | 0.00 | 0.61 | 15.14 | 258.43 | -52.95 | 73.29 | 0.8065 | 504.0 | 414.2 | |
| 1.09 | 2.54 | 0.93 | 2.16 | 16.27 | 257.73 | -53.64 | 72.02 | 0.8150 | 674.6 | 542.6 | |
| 0.00 | 2.54 | 0.00 | 2.12 | 14.75 | 258.30 | -53.08 | 73.78 | 0.8073 | 637.0 | 534.7 | |
| 0.00 | 0.82 | 0.00 | 0.69 | 14.89 | 257.82 | -53.55 | 73.69 | 0.8121 | 524.0 | 478.8 | |
| 0.00 | 3.81 | 0.00 | 3.29 | 15.49 | 257.06 | -54.31 | 73.08 | 0.8203 | 528.0 | 405.2 | |
| 3.81 | 25.24 | 3.22 | 21.37 | 13.32 | 257.67 | -53.71 | 75.63 | 0.8118 | -868.4 | -369.6 | |
| 8.72 | -28.00 | 7.40 | -28.00 | 13.44 | 257.47 | -53.91 | 75.52 | 0.8139 | -493.5 | 999999 | |
| 3.45 | -28.00 | 2.92 | -28.00 | 13.10 | 257.58 | -53.80 | 75.92 | 0.8124 | -679.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.85 | 13.81 | 257.34 | -54.03 | 75.08 | 0.8155 | 184.0 | 168.1 | |
| 2.00 | 3.45 | 1.72 | 2.98 | 14.89 | 256.91 | -54.47 | 73.83 | 0.8210 | 652.4 | 512.6 | |
| 0.00 | 0.82 | 0.00 | 0.74 | 12.65 | 254.86 | -56.51 | 76.77 | 0.8381 | -326.0 | -280.4 | |
| 0.00 | 0.91 | 0.00 | 0.85 | 15.32 | 253.54 | -57.84 | 73.77 | 0.8524 | -338.0 | -295.9 | |
| 0.00 | 1.18 | 0.00 | 1.09 | 11.99 | 254.04 | -57.33 | 77.62 | 0.8451 | 541.0 | 456.5 | |
| 0.00 | 2.36 | 0.00 | 2.17 | 11.53 | 254.14 | -57.24 | 78.16 | 0.8439 | 333.0 | 273.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
