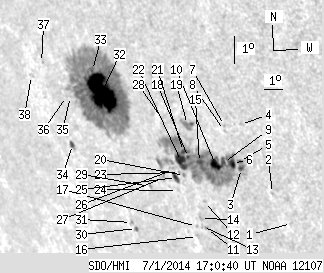

SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.42 | 648.94 | 95.65 | 587.06 | -19.92 | 258.55 | -52.83 | 116.29 | 0.8372 | 361.3 | 34.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.96 | -23.07 | 264.83 | -46.54 | 122.38 | 0.7930 | 508.0 | 422.5 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -22.08 | 264.36 | -47.02 | 121.01 | 0.7932 | 477.0 | 498.8 | |
| 2.09 | 229.18 | 1.72 | 196.45 | -21.29 | 263.19 | -48.19 | 119.58 | 0.8007 | 817.8 | -168.5 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -19.81 | 263.76 | -47.61 | 118.08 | 0.7898 | 610.0 | 541.8 | |
| 1.00 | -3.00 | 0.82 | -3.00 | -21.06 | 263.19 | -48.18 | 119.31 | 0.7998 | 799.9 | 999999 | |
| 4.18 | -3.00 | 3.46 | -3.00 | -21.14 | 262.81 | -48.56 | 119.25 | 0.8036 | 755.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -19.88 | 262.95 | -48.42 | 117.82 | 0.7976 | 514.0 | 473.8 | |
| 0.00 | 0.64 | 0.00 | 0.52 | -20.04 | 262.89 | -48.49 | 117.99 | 0.7989 | 572.0 | 426.3 | |
| 0.27 | -3.00 | 0.23 | -3.00 | -21.12 | 262.37 | -49.01 | 119.05 | 0.8075 | 678.3 | 999999 | |
| 7.90 | -3.00 | 6.67 | -3.00 | -21.21 | 261.93 | -49.45 | 118.96 | 0.8118 | 597.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.05 | -23.42 | 260.36 | -51.01 | 120.86 | 0.8330 | -640.0 | -577.2 | |
| 0.00 | 1.45 | 0.00 | 1.27 | -22.49 | 260.74 | -50.63 | 119.96 | 0.8266 | -602.0 | -420.8 | |
| 0.00 | 1.73 | 0.00 | 1.54 | -23.35 | 260.18 | -51.19 | 120.72 | 0.8343 | -650.0 | -541.8 | |
| 0.00 | 2.18 | 0.00 | 1.94 | -23.08 | 260.22 | -51.15 | 120.43 | 0.8331 | -520.0 | -432.2 | |
| 3.00 | -3.00 | 2.57 | -3.00 | -21.17 | 261.13 | -50.24 | 118.61 | 0.8187 | -564.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -23.71 | 259.72 | -51.66 | 120.94 | 0.8393 | -530.0 | -437.9 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -23.37 | 259.85 | -51.52 | 120.61 | 0.8371 | -488.0 | -408.7 | |
| 1.18 | -3.00 | 1.02 | -3.00 | -21.03 | 260.63 | -50.74 | 118.25 | 0.8226 | -964.5 | 999999 | |
| 0.00 | 9.26 | 0.00 | 7.88 | -19.92 | 261.09 | -50.29 | 117.14 | 0.8149 | -277.0 | -156.9 | |
| 0.00 | 1.54 | 0.00 | 1.36 | -21.65 | 260.12 | -51.26 | 118.76 | 0.8291 | -649.0 | -561.8 | |
| 2.72 | -3.00 | 2.36 | -3.00 | -20.83 | 260.46 | -50.91 | 117.97 | 0.8235 | -819.9 | 999999 | |
| 11.44 | -3.00 | 10.03 | -3.00 | -21.18 | 260.19 | -51.18 | 118.26 | 0.8269 | -730.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -21.55 | 259.90 | -51.47 | 118.58 | 0.8307 | -329.0 | -359.5 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -22.17 | 259.48 | -51.90 | 119.12 | 0.8363 | -405.0 | -352.2 | |
| 3.18 | 5.27 | 2.83 | 4.70 | -21.73 | 259.65 | -51.72 | 118.69 | 0.8334 | -332.1 | -194.7 | |
| 0.00 | 1.63 | 0.00 | 1.45 | -21.47 | 259.63 | -51.75 | 118.38 | 0.8327 | -348.0 | -308.9 | |
| 0.00 | 3.27 | 0.00 | 2.96 | -21.76 | 258.94 | -52.44 | 118.46 | 0.8395 | 366.0 | 219.8 | |
| 0.00 | 0.91 | 0.00 | 0.79 | -19.74 | 259.82 | -51.55 | 116.47 | 0.8256 | 292.0 | 274.6 | |
| 0.00 | 1.63 | 0.00 | 1.52 | -22.10 | 258.04 | -53.33 | 118.52 | 0.8479 | 527.0 | 453.4 | |
| 0.91 | 2.27 | 0.89 | 2.23 | -23.58 | 256.37 | -55.00 | 119.59 | 0.8653 | -567.2 | -418.7 | |
| 0.00 | 2.09 | 0.00 | 2.06 | -23.39 | 256.20 | -55.17 | 119.32 | 0.8661 | -471.0 | -329.2 | |
| 65.10 | 368.46 | 60.59 | 344.11 | -19.04 | 256.91 | -54.46 | 114.70 | 0.8487 | 807.9 | 181.0 | |
| 0.27 | -32.00 | 0.25 | -32.00 | -18.33 | 256.75 | -54.62 | 113.84 | 0.8482 | 857.7 | 999999 | |
| 2.18 | 3.81 | 2.21 | 3.87 | -20.87 | 254.24 | -57.13 | 115.92 | 0.8746 | 441.2 | 360.6 | |
| 0.00 | 0.82 | 0.00 | 0.80 | -19.25 | 255.03 | -56.34 | 114.37 | 0.8646 | -400.0 | -378.0 | |
| 0.00 | 1.09 | 0.00 | 1.07 | -19.26 | 254.79 | -56.58 | 114.31 | 0.8666 | -319.0 | -303.2 | |
| 0.00 | 0.64 | 0.00 | 0.64 | -18.19 | 253.87 | -57.51 | 112.86 | 0.8715 | -375.0 | -366.7 | |
| 0.00 | 2.18 | 0.00 | 2.25 | -18.66 | 253.01 | -58.37 | 113.14 | 0.8792 | -269.0 | -277.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
