SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.06 | 54.83 | 39.69 | 95.86 | -8.29 | 238.46 | -72.91 | 99.54 | 0.9600 | -30.5 | 32.0 | |
|
previous
or next observation for the same group /

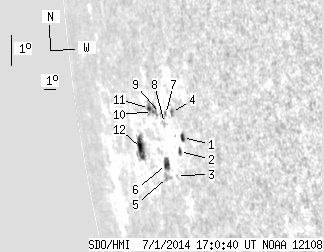

back to the solar disc SDO HMI 2014-07-01 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 3.72 | 3.42 | 5.60 | -8.09 | 241.22 | -70.16 | 99.61 | 0.9459 | 372.4 | 322.9 | |
| 1.00 | 2.81 | 1.54 | 4.35 | -8.55 | 240.74 | -70.63 | 100.03 | 0.9488 | 308.0 | 252.7 | |
| 0.00 | 0.36 | 0.00 | 0.58 | -9.32 | 240.09 | -71.28 | 100.78 | 0.9527 | -227.0 | -265.5 | |
| 0.82 | 2.63 | 1.27 | 4.10 | -7.35 | 240.48 | -70.90 | 98.75 | 0.9496 | 496.0 | 419.0 | |
| 0.00 | 5.08 | 0.00 | 8.62 | -9.43 | 239.14 | -72.24 | 100.79 | 0.9576 | -169.0 | -200.1 | |
| 5.08 | 6.81 | 8.53 | 11.42 | -9.02 | 239.24 | -72.13 | 100.37 | 0.9569 | 158.8 | 98.4 | |
| 0.00 | 2.27 | 0.00 | 3.67 | -7.44 | 239.86 | -71.52 | 98.79 | 0.9529 | 355.0 | 267.9 | |
| 0.00 | 1.82 | 0.00 | 2.96 | -7.73 | 239.64 | -71.73 | 99.07 | 0.9542 | -176.0 | -74.2 | |
| 0.00 | 0.91 | 0.00 | 1.50 | -7.44 | 239.36 | -72.01 | 98.73 | 0.9555 | 188.0 | 151.4 | |
| 0.36 | 12.26 | 0.63 | 21.31 | -7.41 | 238.54 | -72.83 | 98.63 | 0.9595 | 96.5 | 56.9 | |
| 1.54 | -10.00 | 2.73 | -10.00 | -7.34 | 238.26 | -73.12 | 98.52 | 0.9609 | 62.2 | 999999 | |
| 10.99 | 16.16 | 21.57 | 31.75 | -8.65 | 236.70 | -74.68 | 99.73 | 0.9685 | -245.5 | -119.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
