SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.08 | 0.00 | 10.89 | 6.63 | 265.56 | -45.26 | 83.52 | 0.6936 | -141.7 | -57.6 | |
|
previous
or next observation for the same group /

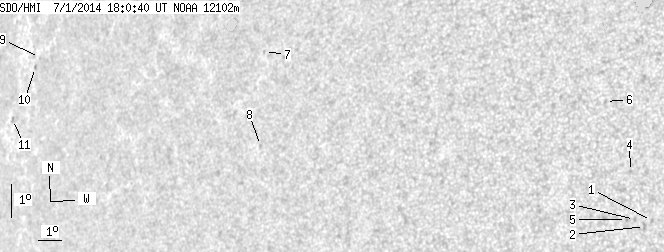

back to the solar disc SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.69 | 4.81 | 278.99 | -31.83 | 85.57 | 0.5291 | -800.0 | -696.1 | |
| 0.00 | 3.00 | 0.00 | 1.75 | 4.62 | 278.75 | -32.07 | 85.95 | 0.5326 | -659.0 | -572.7 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 4.83 | 278.38 | -32.44 | 85.59 | 0.5382 | -751.0 | -539.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 6.29 | 278.14 | -32.68 | 82.91 | 0.5429 | -623.0 | -432.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 4.82 | 278.08 | -32.73 | 85.62 | 0.5425 | -700.0 | -470.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 8.40 | 277.04 | -33.77 | 79.29 | 0.5618 | 607.0 | 501.8 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 9.49 | 262.91 | -47.91 | 79.86 | 0.7458 | 388.0 | 401.3 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 6.61 | 263.17 | -47.64 | 83.71 | 0.7408 | 177.0 | 316.6 | |
| 0.00 | 0.82 | 0.00 | 0.80 | 8.84 | 251.21 | -59.61 | 81.46 | 0.8639 | 333.0 | 310.4 | |
| 0.00 | 1.36 | 0.00 | 1.34 | 8.52 | 251.05 | -59.77 | 81.83 | 0.8652 | 373.0 | 371.2 | |
| 0.00 | 2.18 | 0.00 | 2.20 | 6.88 | 250.00 | -60.82 | 83.75 | 0.8740 | 96.0 | 177.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
