SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.83 | 164.99 | 42.12 | 131.74 | 14.78 | 259.85 | -50.97 | 73.36 | 0.7857 | -365.7 | -124.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

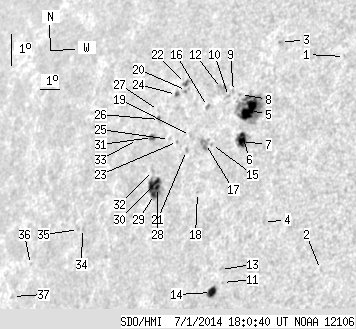

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.79 | 17.75 | 265.39 | -45.42 | 68.27 | 0.7326 | -557.0 | -468.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 11.11 | 266.03 | -44.79 | 77.21 | 0.7112 | 562.0 | 405.2 | |
| 0.00 | 1.73 | 0.00 | 1.33 | 18.08 | 262.26 | -48.56 | 68.69 | 0.7672 | -543.0 | -393.6 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 12.46 | 263.16 | -47.66 | 75.84 | 0.7466 | -259.0 | -278.5 | |
| 17.61 | 61.56 | 13.64 | 47.64 | 15.90 | 261.51 | -49.31 | 71.66 | 0.7705 | -943.6 | -342.1 | |
| 1.91 | 14.71 | 1.47 | 11.36 | 15.15 | 261.42 | -49.40 | 72.65 | 0.7701 | -732.6 | -434.7 | |
| 7.63 | -6.00 | 5.89 | -6.00 | 14.93 | 261.44 | -49.38 | 72.93 | 0.7695 | -811.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 16.38 | 260.91 | -49.91 | 71.17 | 0.7777 | -256.0 | -267.5 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 16.47 | 260.53 | -50.29 | 71.15 | 0.7818 | -46.0 | -151.4 | |
| 0.00 | 1.63 | 0.00 | 1.30 | 16.30 | 260.34 | -50.48 | 71.40 | 0.7835 | 34.0 | 87.2 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 10.55 | 261.67 | -49.15 | 78.58 | 0.7609 | -241.0 | -271.4 | |
| 0.00 | 5.36 | 0.00 | 4.29 | 16.54 | 259.90 | -50.92 | 71.19 | 0.7884 | 240.0 | -2.5 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 10.95 | 261.49 | -49.33 | 78.09 | 0.7634 | -507.0 | -431.7 | |
| 5.90 | 8.26 | 4.53 | 6.34 | 10.23 | 261.21 | -49.61 | 79.06 | 0.7656 | -578.2 | -305.9 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 14.78 | 260.00 | -50.82 | 73.38 | 0.7844 | -198.0 | -262.8 | |
| 0.00 | 2.00 | 0.00 | 1.61 | 15.95 | 259.40 | -51.42 | 72.02 | 0.7924 | -345.0 | -271.5 | |
| 0.00 | 7.81 | 0.00 | 6.25 | 14.80 | 259.69 | -51.13 | 73.41 | 0.7876 | 230.0 | 78.6 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 13.27 | 259.76 | -51.06 | 75.33 | 0.7847 | -435.0 | -413.0 | |
| 0.00 | 0.82 | 0.00 | 0.67 | 15.02 | 258.85 | -51.97 | 73.28 | 0.7965 | 389.0 | 401.3 | |
| 0.00 | 2.00 | 0.00 | 1.66 | 16.41 | 258.14 | -52.68 | 71.69 | 0.8058 | 677.0 | 604.5 | |
| 0.00 | 1.91 | 0.00 | 1.55 | 14.55 | 258.81 | -52.01 | 73.88 | 0.7963 | 568.0 | 458.9 | |
| 1.27 | 3.81 | 1.06 | 3.18 | 16.62 | 258.00 | -52.82 | 71.45 | 0.8074 | 595.3 | 496.1 | |
| 0.00 | 1.18 | 0.00 | 0.98 | 14.81 | 258.25 | -52.57 | 73.64 | 0.8023 | 507.0 | 541.0 | |
| 1.09 | 2.36 | 0.92 | 1.98 | 16.26 | 257.66 | -53.15 | 71.95 | 0.8102 | 691.1 | 562.9 | |
| 0.00 | 0.82 | 0.00 | 0.68 | 14.85 | 257.82 | -53.00 | 73.66 | 0.8067 | 394.0 | 428.7 | |
| 0.00 | 2.63 | 0.00 | 2.24 | 15.45 | 257.07 | -53.75 | 73.04 | 0.8148 | 495.0 | 513.7 | |
| 0.00 | 0.64 | 0.00 | 0.54 | 15.73 | 256.91 | -53.91 | 72.73 | 0.8168 | 326.0 | 271.6 | |
| 2.81 | 25.69 | 2.34 | 21.45 | 13.35 | 257.69 | -53.13 | 75.53 | 0.8061 | -902.1 | -380.3 | |
| 3.90 | -28.00 | 3.26 | -28.00 | 13.13 | 257.60 | -53.22 | 75.82 | 0.8067 | -767.5 | 999999 | |
| 8.53 | -28.00 | 7.15 | -28.00 | 13.43 | 257.45 | -53.37 | 75.46 | 0.8085 | -624.8 | 999999 | |
| 2.18 | 3.81 | 1.86 | 3.25 | 14.88 | 256.90 | -53.92 | 73.76 | 0.8157 | 647.8 | 509.3 | |
| 0.00 | 1.63 | 0.00 | 1.38 | 13.86 | 257.26 | -53.56 | 74.96 | 0.8110 | 165.0 | 141.8 | |
| 0.00 | 0.73 | 0.00 | 0.63 | 14.79 | 256.12 | -54.70 | 73.99 | 0.8231 | 256.0 | 216.6 | |
| 0.00 | 1.09 | 0.00 | 0.99 | 11.93 | 254.04 | -56.78 | 77.66 | 0.8400 | 403.0 | 229.9 | |
| 0.00 | 0.82 | 0.00 | 0.75 | 11.89 | 253.82 | -57.00 | 77.73 | 0.8420 | 244.0 | 320.8 | |
| 0.00 | 0.91 | 0.00 | 0.89 | 10.70 | 251.35 | -59.47 | 79.30 | 0.8634 | 230.0 | 283.1 | |
| 0.00 | 1.63 | 0.00 | 1.63 | 9.67 | 250.54 | -60.28 | 80.52 | 0.8699 | 344.0 | 352.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
