SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 66.99 | 41.13 | 112.81 | -8.27 | 238.63 | -72.19 | 99.58 | 0.9565 | -66.4 | 43.7 | |
|
previous
or next observation for the same group /

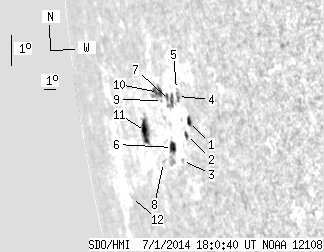

back to the solar disc SDO HMI 2014-07-01 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 4.45 | 3.86 | 6.51 | -8.09 | 241.30 | -69.52 | 99.68 | 0.9423 | 343.6 | 277.9 | |
| 1.09 | 2.91 | 1.63 | 4.35 | -8.54 | 240.85 | -69.97 | 100.11 | 0.9452 | 276.3 | 268.0 | |
| 0.00 | 1.45 | 0.00 | 2.27 | -9.36 | 240.11 | -70.71 | 100.88 | 0.9497 | -173.0 | -139.2 | |
| 0.00 | 3.54 | 0.00 | 5.36 | -7.35 | 240.49 | -70.33 | 98.82 | 0.9465 | 549.0 | 438.6 | |
| 0.00 | 0.27 | 0.00 | 0.41 | -7.14 | 240.48 | -70.34 | 98.59 | 0.9464 | 352.0 | 317.0 | |
| 4.54 | 12.98 | 7.36 | 21.20 | -8.99 | 239.32 | -71.50 | 100.41 | 0.9537 | 235.4 | -58.6 | |
| 0.00 | 10.35 | 0.00 | 16.34 | -7.52 | 239.67 | -71.15 | 98.90 | 0.9510 | 138.0 | 183.5 | |
| 0.00 | 1.54 | 0.00 | 2.68 | -9.52 | 238.13 | -72.69 | 100.83 | 0.9599 | -271.0 | -212.7 | |
| 0.00 | 0.36 | 0.00 | 0.60 | -7.55 | 238.97 | -71.85 | 98.87 | 0.9547 | -161.0 | -196.8 | |
| 4.45 | 10.71 | 7.44 | 18.02 | -7.32 | 238.66 | -72.16 | 98.59 | 0.9562 | 187.2 | -21.6 | |
| 10.99 | 18.16 | 20.84 | 34.40 | -8.63 | 236.63 | -74.19 | 99.75 | 0.9664 | -401.7 | -124.4 | |
| 0.00 | 0.27 | 0.00 | 0.67 | -10.85 | 233.27 | -77.55 | 101.71 | 0.9803 | -162.0 | -124.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
