SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 10.71 | 0.35 | 7.26 | 6.09 | 268.78 | -41.48 | 84.09 | 0.6468 | -147.3 | -113.8 | |
|
previous
or next observation for the same group /

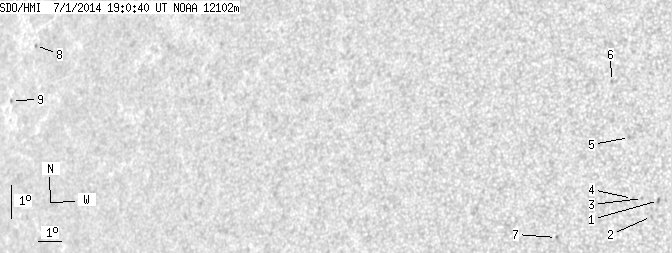

back to the solar disc SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.00 | 4.77 | 279.01 | -31.25 | 85.62 | 0.5205 | -799.0 | -671.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 4.28 | 278.78 | -31.48 | 86.58 | 0.5237 | -699.0 | -582.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 4.82 | 278.43 | -31.83 | 85.57 | 0.5291 | -610.0 | -552.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 4.81 | 278.07 | -32.19 | 85.62 | 0.5345 | -638.0 | -525.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 6.66 | 277.85 | -32.41 | 82.18 | 0.5395 | -585.0 | -457.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 8.36 | 277.05 | -33.21 | 79.24 | 0.5538 | 692.0 | 499.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 3.54 | 275.34 | -34.92 | 88.00 | 0.5739 | 686.0 | 481.4 | |
| 0.36 | 1.36 | 0.35 | 1.31 | 8.55 | 251.04 | -59.23 | 81.79 | 0.8605 | 360.2 | 353.5 | |
| 0.00 | 1.09 | 0.00 | 1.09 | 6.81 | 249.96 | -60.30 | 83.82 | 0.8695 | 89.0 | 122.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
