SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.19 | 150.73 | 48.14 | 118.47 | 14.81 | 260.05 | -50.22 | 73.21 | 0.7780 | -430.4 | -92.3 | |
|
previous
or next observation for the same group /

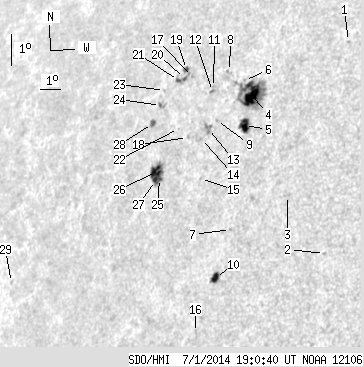

back to the solar disc SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.65 | 17.77 | 265.42 | -44.84 | 68.07 | 0.7262 | -577.0 | -475.9 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 11.16 | 266.03 | -44.23 | 77.04 | 0.7045 | 542.0 | 461.6 | |
| 0.00 | 2.72 | 0.00 | 1.97 | 12.89 | 264.02 | -46.24 | 75.02 | 0.7311 | -65.0 | -201.7 | |
| 24.15 | 60.47 | 18.50 | 46.33 | 15.96 | 261.47 | -48.79 | 71.48 | 0.7651 | -882.8 | -306.7 | |
| 9.44 | 12.89 | 7.21 | 9.85 | 14.98 | 261.44 | -48.82 | 72.75 | 0.7636 | -812.3 | -516.5 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 16.38 | 260.99 | -49.27 | 71.04 | 0.7710 | -260.0 | -240.8 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 11.75 | 261.65 | -48.61 | 76.94 | 0.7563 | -243.0 | -311.6 | |
| 0.00 | 1.63 | 0.00 | 1.29 | 16.63 | 260.16 | -50.10 | 70.90 | 0.7801 | -368.0 | -276.9 | |
| 0.00 | 1.00 | 0.00 | 0.78 | 15.09 | 260.04 | -50.22 | 72.89 | 0.7786 | -431.0 | -378.8 | |
| 5.63 | 8.08 | 4.27 | 6.12 | 10.25 | 261.27 | -48.99 | 78.96 | 0.7588 | -573.5 | -321.6 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 16.10 | 259.55 | -50.71 | 71.69 | 0.7855 | 297.0 | 176.9 | |
| 0.00 | 1.91 | 0.00 | 1.52 | 15.98 | 259.54 | -50.72 | 71.85 | 0.7853 | -363.0 | -241.0 | |
| 0.00 | 6.72 | 0.00 | 5.31 | 14.82 | 259.73 | -50.53 | 73.28 | 0.7815 | 88.0 | 65.7 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 14.50 | 259.48 | -50.78 | 73.73 | 0.7836 | 248.0 | 237.4 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 13.26 | 259.81 | -50.46 | 75.25 | 0.7784 | -422.0 | -424.8 | |
| 0.00 | 2.00 | 0.00 | 1.53 | 8.53 | 260.65 | -49.62 | 81.28 | 0.7644 | 272.0 | 238.8 | |
| 0.00 | 1.36 | 0.00 | 1.11 | 16.41 | 258.37 | -51.90 | 71.55 | 0.7980 | 747.0 | 644.7 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 14.51 | 258.78 | -51.49 | 73.85 | 0.7909 | 650.0 | 527.6 | |
| 1.54 | 9.81 | 1.27 | 8.10 | 16.61 | 257.98 | -52.29 | 71.36 | 0.8022 | 576.6 | 581.4 | |
| 0.91 | -19.00 | 0.75 | -19.00 | 16.33 | 257.98 | -52.28 | 71.71 | 0.8017 | 686.9 | 999999 | |
| 1.36 | -19.00 | 1.13 | -19.00 | 16.25 | 257.69 | -52.57 | 71.86 | 0.8044 | 654.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 14.77 | 258.23 | -52.03 | 73.61 | 0.7968 | 669.0 | 615.2 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 15.92 | 257.08 | -53.18 | 72.38 | 0.8099 | 268.0 | 305.7 | |
| 0.45 | 4.63 | 0.38 | 3.88 | 15.44 | 257.05 | -53.22 | 72.97 | 0.8096 | 524.2 | 530.5 | |
| 1.45 | 23.61 | 1.19 | 19.46 | 13.19 | 257.76 | -52.51 | 75.65 | 0.7996 | -746.6 | -383.7 | |
| 11.26 | -25.00 | 9.29 | -25.00 | 13.40 | 257.54 | -52.73 | 75.42 | 0.8021 | -710.2 | 999999 | |
| 3.18 | -25.00 | 2.62 | -25.00 | 13.12 | 257.57 | -52.69 | 75.76 | 0.8014 | -760.1 | 999999 | |
| 1.82 | 3.45 | 1.53 | 2.91 | 14.87 | 256.83 | -53.43 | 73.70 | 0.8109 | 694.3 | 503.7 | |
| 0.00 | 1.09 | 0.00 | 1.07 | 9.67 | 250.49 | -59.77 | 80.51 | 0.8656 | 390.0 | 418.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
