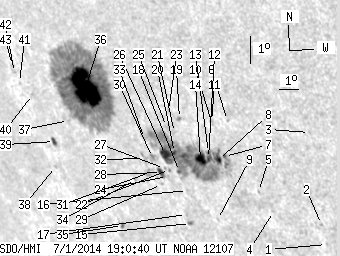

SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.88 | 628.76 | 88.52 | 555.22 | -19.85 | 258.43 | -51.83 | 116.55 | 0.8284 | 457.0 | 65.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.49 | -23.87 | 266.73 | -43.54 | 124.80 | 0.7694 | 538.0 | 444.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -23.19 | 266.78 | -43.48 | 124.03 | 0.7656 | 521.0 | 428.7 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -20.09 | 267.40 | -42.86 | 120.63 | 0.7446 | 536.0 | 425.6 | |
| 0.00 | 0.82 | 0.00 | 0.65 | -22.82 | 264.70 | -45.57 | 122.56 | 0.7831 | 247.0 | 287.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -22.17 | 264.26 | -46.00 | 121.59 | 0.7842 | 359.0 | 366.1 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -19.83 | 263.74 | -46.52 | 118.58 | 0.7795 | 604.0 | 500.0 | |
| 0.82 | 13.26 | 0.66 | 10.69 | -21.05 | 263.11 | -47.15 | 119.74 | 0.7903 | 805.2 | 535.7 | |
| 3.45 | 180.67 | 2.80 | 151.12 | -21.16 | 262.77 | -47.49 | 119.73 | 0.7939 | 780.5 | -237.9 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -23.21 | 261.79 | -48.48 | 121.68 | 0.8107 | -348.0 | -454.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.99 | 262.96 | -47.30 | 118.43 | 0.7876 | 518.0 | 482.3 | |
| 0.00 | 1.82 | 0.00 | 1.45 | -19.89 | 262.96 | -47.31 | 118.31 | 0.7873 | 309.0 | 376.1 | |
| 2.36 | -8.00 | 1.93 | -8.00 | -21.14 | 262.29 | -47.97 | 119.51 | 0.7983 | 677.7 | 999999 | |
| 0.91 | -8.00 | 0.74 | -8.00 | -20.94 | 262.38 | -47.88 | 119.31 | 0.7967 | 642.6 | 999999 | |
| 8.81 | -8.00 | 7.27 | -8.00 | -21.19 | 261.88 | -48.39 | 119.39 | 0.8022 | 637.2 | 999999 | |
| 0.82 | 2.00 | 0.71 | 1.74 | -23.40 | 260.31 | -49.95 | 121.28 | 0.8241 | -679.6 | -587.2 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -22.27 | 260.72 | -49.54 | 120.16 | 0.8165 | -397.0 | -401.4 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -23.10 | 260.26 | -50.00 | 120.91 | 0.8235 | -398.0 | -405.1 | |
| 0.91 | -8.00 | 0.77 | -8.00 | -21.64 | 260.62 | -49.65 | 119.39 | 0.8152 | -919.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.50 | -19.86 | 261.41 | -48.85 | 117.63 | 0.8016 | 306.0 | 198.8 | |
| 1.63 | -8.00 | 1.38 | -8.00 | -21.01 | 260.66 | -49.61 | 118.68 | 0.8125 | -997.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.67 | -20.33 | 260.96 | -49.30 | 118.01 | 0.8075 | -385.0 | -398.6 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -21.60 | 260.13 | -50.13 | 119.14 | 0.8193 | -539.0 | -555.8 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -19.61 | 260.97 | -49.29 | 117.17 | 0.8049 | 122.0 | 128.2 | |
| 0.00 | 1.36 | 0.00 | 1.18 | -21.84 | 259.91 | -50.36 | 119.34 | 0.8220 | -594.0 | -443.5 | |
| 0.00 | 2.09 | 0.00 | 1.75 | -20.15 | 260.64 | -49.63 | 117.67 | 0.8097 | -464.0 | -447.9 | |
| 9.17 | -8.00 | 7.84 | -8.00 | -21.10 | 260.16 | -50.10 | 118.58 | 0.8173 | -796.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -21.57 | 259.88 | -50.38 | 119.02 | 0.8214 | -337.0 | -306.4 | |
| 3.18 | 5.36 | 2.76 | 4.66 | -21.71 | 259.66 | -50.61 | 119.10 | 0.8238 | -383.8 | -253.8 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -22.12 | 259.45 | -50.81 | 119.48 | 0.8269 | -366.0 | -230.2 | |
| 0.00 | 3.90 | 0.00 | 3.40 | -21.22 | 259.43 | -50.84 | 118.45 | 0.8241 | -6.0 | -110.7 | |
| 0.00 | 5.72 | 0.00 | 5.05 | -21.74 | 259.02 | -51.25 | 118.88 | 0.8294 | 232.0 | 172.9 | |
| 0.00 | 5.36 | 0.00 | 4.71 | -21.28 | 258.98 | -51.28 | 118.34 | 0.8282 | 0.0 | 0.5 | |
| 0.00 | 1.54 | 0.00 | 1.34 | -20.60 | 259.31 | -50.95 | 117.68 | 0.8231 | -9.0 | -57.0 | |
| 0.00 | 1.18 | 0.00 | 1.06 | -22.01 | 258.13 | -52.13 | 118.86 | 0.8378 | 615.0 | 511.6 | |
| 1.00 | 2.00 | 0.95 | 1.90 | -23.63 | 256.50 | -53.76 | 120.07 | 0.8559 | -487.5 | -344.5 | |
| 64.55 | 376.06 | 58.47 | 341.70 | -19.02 | 256.91 | -53.35 | 115.04 | 0.8392 | 947.6 | 206.5 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -20.17 | 255.40 | -54.86 | 115.85 | 0.8550 | -251.0 | -226.6 | |
| 0.00 | 1.36 | 0.00 | 1.37 | -21.77 | 253.73 | -56.53 | 117.10 | 0.8722 | -181.0 | -172.3 | |
| 2.27 | 3.90 | 2.24 | 3.85 | -20.92 | 254.18 | -56.08 | 116.30 | 0.8667 | 448.0 | 380.2 | |
| 0.00 | 0.64 | 0.00 | 0.63 | -19.39 | 253.73 | -56.53 | 114.47 | 0.8665 | -490.0 | -464.0 | |
| 0.00 | 0.73 | 0.00 | 0.72 | -19.02 | 253.16 | -57.10 | 113.89 | 0.8702 | -309.0 | -343.8 | |
| 0.00 | 1.54 | 0.00 | 1.54 | -18.70 | 253.03 | -57.23 | 113.50 | 0.8705 | -441.0 | -355.0 | |
| 0.00 | 1.09 | 0.00 | 1.09 | -18.47 | 253.03 | -57.23 | 113.25 | 0.8700 | -437.0 | -363.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
