SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.08 | 0.00 | 11.24 | 6.38 | 269.72 | -39.99 | 83.37 | 0.6312 | -57.0 | -133.1 | |
|
previous
or next observation for the same group /

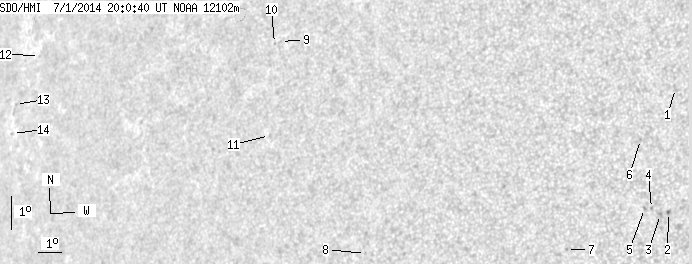

back to the solar disc SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.73 | 8.52 | 279.02 | -30.68 | 78.30 | 0.5174 | -345.0 | -318.0 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 4.73 | 279.03 | -30.68 | 85.66 | 0.5119 | -877.0 | -781.4 | |
| 0.00 | 2.36 | 0.00 | 1.36 | 4.66 | 278.75 | -30.96 | 85.82 | 0.5161 | -902.0 | -686.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 4.84 | 278.42 | -31.29 | 85.50 | 0.5211 | -730.0 | -585.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 4.83 | 278.17 | -31.54 | 85.53 | 0.5249 | -725.0 | -500.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 6.93 | 277.89 | -31.81 | 81.58 | 0.5311 | -694.0 | -543.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 3.51 | 275.38 | -34.32 | 88.07 | 0.5653 | 725.0 | 531.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 3.14 | 267.56 | -42.15 | 88.55 | 0.6725 | 170.0 | 228.7 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 9.49 | 263.22 | -46.49 | 79.71 | 0.7293 | 347.0 | 424.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 9.41 | 262.96 | -46.75 | 79.83 | 0.7323 | 392.0 | 411.0 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 6.60 | 263.15 | -46.55 | 83.68 | 0.7279 | 535.0 | 461.5 | |
| 0.00 | 0.54 | 0.00 | 0.52 | 8.58 | 251.08 | -58.63 | 81.73 | 0.8552 | 579.0 | 518.3 | |
| 0.00 | 0.64 | 0.00 | 0.62 | 7.03 | 249.98 | -59.73 | 83.57 | 0.8646 | 449.0 | 403.9 | |
| 0.00 | 1.36 | 0.00 | 1.33 | 6.14 | 249.97 | -59.74 | 84.60 | 0.8646 | 278.0 | 295.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
