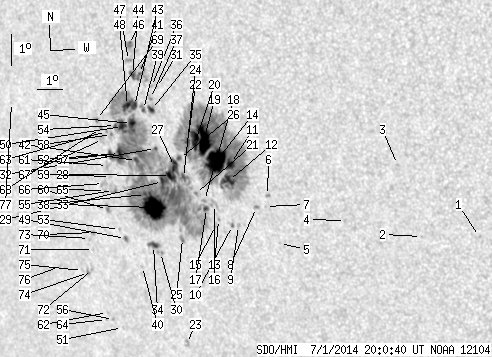

SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 203.36 | 1159.23 | 139.40 | 796.57 | -10.74 | 267.76 | -41.95 | 108.81 | 0.6959 | 379.6 | 205.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.54 | -12.63 | 279.47 | -30.23 | 118.02 | 0.5587 | 839.0 | 643.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -12.69 | 277.34 | -32.36 | 116.60 | 0.5862 | 591.0 | 492.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -10.44 | 276.75 | -32.95 | 112.64 | 0.5818 | 618.0 | 474.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -12.27 | 274.55 | -35.16 | 114.21 | 0.6192 | 350.0 | 351.1 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -13.07 | 271.84 | -37.87 | 113.92 | 0.6564 | 791.0 | 697.6 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -11.57 | 271.62 | -38.08 | 111.63 | 0.6523 | 876.0 | 705.7 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -11.92 | 271.49 | -38.22 | 112.07 | 0.6555 | 608.0 | 509.0 | |
| 0.00 | 2.45 | 0.00 | 1.61 | -11.96 | 271.12 | -38.59 | 111.96 | 0.6602 | 839.0 | 658.3 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -12.55 | 270.29 | -39.42 | 112.41 | 0.6727 | 698.0 | 620.4 | |
| 0.54 | 1.91 | 0.37 | 1.28 | -12.56 | 270.04 | -39.66 | 112.31 | 0.6757 | 650.0 | 594.6 | |
| 7.99 | 409.10 | 5.29 | 272.74 | -10.61 | 270.30 | -39.41 | 109.63 | 0.6648 | 1315.7 | 462.5 | |
| 9.44 | -11.00 | 6.28 | -11.00 | -11.14 | 270.13 | -39.57 | 110.33 | 0.6689 | 999.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -12.39 | 269.50 | -40.20 | 111.82 | 0.6814 | 505.0 | 408.3 | |
| 34.95 | -11.00 | 23.31 | -11.00 | -10.53 | 269.75 | -39.96 | 109.29 | 0.6713 | 1196.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.29 | -12.59 | 269.34 | -40.36 | 112.02 | 0.6841 | 550.0 | 430.9 | |
| 0.00 | 5.08 | 0.00 | 3.43 | -11.92 | 269.43 | -40.28 | 111.13 | 0.6804 | 766.0 | 524.8 | |
| 2.09 | 613.65 | 1.42 | 428.14 | -12.06 | 269.07 | -40.63 | 111.16 | 0.6852 | 692.4 | 64.2 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -11.81 | 269.04 | -40.67 | 110.80 | 0.6847 | 759.0 | 632.7 | |
| 24.06 | -11.00 | 16.09 | -11.00 | -9.92 | 269.31 | -40.40 | 108.24 | 0.6744 | 1247.8 | 999999 | |
| 8.90 | -11.00 | 5.99 | -11.00 | -9.93 | 268.98 | -40.72 | 108.12 | 0.6785 | 748.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -11.60 | 268.70 | -41.00 | 110.36 | 0.6878 | 633.0 | 480.7 | |
| 4.45 | -11.00 | 3.01 | -11.00 | -10.00 | 268.64 | -41.06 | 108.10 | 0.6829 | 523.9 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.40 | -16.42 | 267.23 | -42.47 | 116.18 | 0.7240 | 672.0 | 441.0 | |
| 3.63 | -17.00 | 2.48 | -17.00 | -11.11 | 268.29 | -41.41 | 109.51 | 0.6909 | 751.5 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.21 | -13.05 | 267.88 | -41.83 | 112.00 | 0.7030 | -400.0 | -317.0 | |
| 1.54 | -17.00 | 1.05 | -17.00 | -10.52 | 268.23 | -41.48 | 108.66 | 0.6896 | 539.1 | 999999 | |
| 5.72 | -17.00 | 3.92 | -17.00 | -10.78 | 267.98 | -41.73 | 108.92 | 0.6935 | 661.7 | 999999 | |
| 5.45 | -17.00 | 3.75 | -17.00 | -11.07 | 267.76 | -41.95 | 109.24 | 0.6971 | -121.7 | 999999 | |
| 3.09 | -17.00 | 2.14 | -17.00 | -11.27 | 267.39 | -42.32 | 109.37 | 0.7022 | 518.6 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.41 | -13.53 | 266.84 | -42.87 | 112.20 | 0.7167 | -822.0 | -553.4 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -8.33 | 267.60 | -42.10 | 105.35 | 0.6902 | 633.0 | 540.1 | |
| 0.82 | -17.00 | 0.57 | -17.00 | -10.24 | 267.27 | -42.43 | 107.91 | 0.7001 | 710.8 | 999999 | |
| 36.95 | -17.00 | 25.96 | -17.00 | -12.10 | 266.84 | -42.86 | 110.30 | 0.7115 | -1100.9 | 999999 | |
| 4.18 | 7.08 | 2.96 | 5.03 | -13.31 | 266.59 | -43.12 | 111.81 | 0.7188 | -889.7 | -646.2 | |
| 2.81 | 6.72 | 1.94 | 4.62 | -9.02 | 267.30 | -42.41 | 106.22 | 0.6960 | 826.1 | 646.9 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -8.30 | 267.40 | -42.31 | 105.25 | 0.6927 | 659.0 | 698.9 | |
| 0.36 | 2.36 | 0.25 | 1.62 | -8.68 | 267.30 | -42.40 | 105.75 | 0.6949 | 625.2 | 564.2 | |
| 1.18 | -17.00 | 0.83 | -17.00 | -11.70 | 266.58 | -43.13 | 109.66 | 0.7131 | -603.9 | 999999 | |
| 0.91 | 4.36 | 0.63 | 3.02 | -9.03 | 266.96 | -42.75 | 106.13 | 0.7001 | 676.8 | 586.2 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -14.00 | 265.95 | -43.76 | 112.46 | 0.7285 | -214.0 | -296.6 | |
| 0.82 | 17.89 | 0.56 | 12.33 | -7.91 | 266.95 | -42.76 | 104.56 | 0.6971 | 871.0 | 633.3 | |
| 2.54 | -17.00 | 1.79 | -17.00 | -10.64 | 266.40 | -43.31 | 108.15 | 0.7117 | 296.9 | 999999 | |
| 3.90 | -17.00 | 2.72 | -17.00 | -8.92 | 266.60 | -43.11 | 105.85 | 0.7041 | 692.7 | 999999 | |
| 3.54 | -41.00 | 2.45 | -41.00 | -7.96 | 266.65 | -43.06 | 104.52 | 0.7008 | 641.1 | 999999 | |
| 4.45 | -17.00 | 3.11 | -17.00 | -9.49 | 266.38 | -43.33 | 106.56 | 0.7084 | 1091.4 | 999999 | |
| 1.82 | 8.26 | 1.25 | 5.70 | -7.03 | 266.64 | -43.07 | 103.22 | 0.6985 | 31.0 | 333.2 | |
| 0.00 | 3.09 | 0.00 | 2.14 | -7.53 | 266.53 | -43.17 | 103.89 | 0.7010 | 562.0 | 434.2 | |
| 7.54 | -17.00 | 5.27 | -17.00 | -8.93 | 266.30 | -43.41 | 105.77 | 0.7077 | 747.2 | 999999 | |
| 0.91 | 2.09 | 0.66 | 1.51 | -13.13 | 265.41 | -44.30 | 111.11 | 0.7313 | -440.0 | -448.2 | |
| 8.17 | -17.00 | 5.76 | -17.00 | -9.60 | 265.98 | -43.73 | 106.58 | 0.7134 | 829.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -16.00 | 264.53 | -45.18 | 114.44 | 0.7513 | -480.0 | -500.9 | |
| 3.90 | -17.00 | 2.77 | -17.00 | -10.45 | 265.70 | -44.01 | 107.64 | 0.7192 | 677.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -12.86 | 265.21 | -44.50 | 110.67 | 0.7326 | -195.0 | -260.0 | |
| 1.09 | -17.00 | 0.77 | -17.00 | -9.58 | 265.68 | -44.03 | 106.45 | 0.7169 | 447.7 | 999999 | |
| 0.00 | 4.27 | 0.00 | 3.07 | -11.63 | 265.21 | -44.50 | 109.04 | 0.7285 | -708.0 | -495.5 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -15.76 | 264.19 | -45.52 | 114.00 | 0.7539 | -460.0 | -489.7 | |
| 3.63 | -17.00 | 2.60 | -17.00 | -10.49 | 265.35 | -44.36 | 107.58 | 0.7235 | -10.9 | 999999 | |
| 0.36 | 2.27 | 0.26 | 1.62 | -9.86 | 265.46 | -44.25 | 106.77 | 0.7203 | 544.8 | 443.4 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -11.19 | 265.17 | -44.54 | 108.45 | 0.7276 | 252.0 | 228.2 | |
| 0.45 | 3.99 | 0.33 | 2.91 | -12.24 | 264.82 | -44.89 | 109.71 | 0.7349 | -645.6 | -470.3 | |
| 0.00 | 4.63 | 0.00 | 3.33 | -10.85 | 265.10 | -44.60 | 107.97 | 0.7273 | -145.0 | -71.4 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -15.54 | 263.98 | -45.73 | 113.64 | 0.7553 | -550.0 | -447.3 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -9.78 | 265.26 | -44.45 | 106.58 | 0.7224 | 539.0 | 563.8 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -15.77 | 263.87 | -45.84 | 113.88 | 0.7573 | -268.0 | -289.4 | |
| 0.00 | 1.54 | 0.00 | 1.12 | -11.64 | 264.86 | -44.85 | 108.93 | 0.7325 | -541.0 | -494.6 | |
| 0.00 | 4.36 | 0.00 | 3.16 | -11.42 | 264.81 | -44.89 | 108.63 | 0.7323 | -183.0 | -192.2 | |
| 0.00 | 4.99 | 0.00 | 3.58 | -10.04 | 265.04 | -44.67 | 106.86 | 0.7257 | 145.0 | 154.1 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -9.69 | 265.01 | -44.70 | 106.39 | 0.7250 | 696.0 | 510.6 | |
| 0.73 | 2.45 | 0.52 | 1.76 | -9.42 | 264.88 | -44.83 | 105.98 | 0.7257 | 567.8 | 534.3 | |
| 0.00 | 2.54 | 0.00 | 1.89 | -12.99 | 264.02 | -45.69 | 110.40 | 0.7462 | -418.0 | -427.8 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -13.54 | 263.89 | -45.82 | 111.05 | 0.7494 | -319.0 | -350.7 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -14.18 | 263.68 | -46.03 | 111.80 | 0.7538 | -352.0 | -444.7 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -13.19 | 263.79 | -45.92 | 110.57 | 0.7493 | -419.0 | -391.3 | |
| 0.45 | 2.45 | 0.34 | 1.85 | -14.28 | 263.47 | -46.24 | 111.85 | 0.7564 | -640.8 | -578.4 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -14.23 | 263.21 | -46.50 | 111.68 | 0.7589 | -330.0 | -362.8 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -14.14 | 262.16 | -47.54 | 111.20 | 0.7696 | -184.0 | -194.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -9.03 | 261.10 | -48.60 | 104.39 | 0.7671 | -325.0 | -313.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
