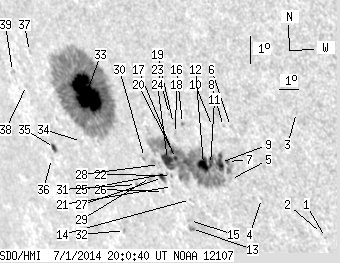

SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.39 | 630.19 | 85.94 | 549.62 | -19.82 | 258.45 | -51.26 | 116.73 | 0.8233 | 483.7 | 74.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.42 | -23.43 | 266.72 | -42.99 | 124.59 | 0.7622 | 554.0 | 505.2 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -23.30 | 266.59 | -43.12 | 124.37 | 0.7627 | 489.0 | 423.0 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -19.26 | 266.95 | -42.76 | 119.65 | 0.7397 | 462.0 | 472.0 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -22.21 | 264.26 | -45.44 | 121.90 | 0.7793 | 158.0 | 314.7 | |
| 0.00 | 2.36 | 0.00 | 1.89 | -21.62 | 263.04 | -46.67 | 120.64 | 0.7882 | 158.0 | 191.6 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -19.84 | 263.75 | -45.96 | 118.84 | 0.7741 | 613.0 | 538.9 | |
| 1.00 | 203.28 | 0.79 | 167.75 | -21.02 | 263.15 | -46.56 | 119.98 | 0.7847 | 746.5 | -181.8 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -19.85 | 263.42 | -46.29 | 118.70 | 0.7774 | 365.0 | 349.1 | |
| 8.08 | -7.00 | 6.48 | -7.00 | -21.06 | 262.79 | -46.92 | 119.87 | 0.7882 | 742.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.87 | 262.89 | -46.82 | 118.50 | 0.7825 | 511.0 | 412.7 | |
| 0.27 | -7.00 | 0.22 | -7.00 | -21.15 | 262.27 | -47.44 | 119.75 | 0.7934 | 720.7 | 999999 | |
| 8.53 | -7.00 | 6.96 | -7.00 | -21.16 | 261.93 | -47.78 | 119.61 | 0.7966 | 640.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.66 | -23.37 | 260.29 | -49.42 | 121.47 | 0.8195 | -732.0 | -632.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -22.38 | 260.73 | -48.98 | 120.52 | 0.8120 | -370.0 | -496.7 | |
| 0.00 | 1.91 | 0.00 | 1.63 | -23.10 | 260.32 | -49.38 | 121.17 | 0.8182 | -204.0 | -247.6 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -19.82 | 261.46 | -48.25 | 117.84 | 0.7959 | 422.0 | 285.9 | |
| 1.36 | -7.00 | 1.14 | -7.00 | -21.02 | 260.60 | -49.10 | 118.89 | 0.8081 | -1008.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.35 | -20.17 | 260.97 | -48.74 | 118.06 | 0.8017 | -340.0 | -350.7 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -19.84 | 261.01 | -48.70 | 117.68 | 0.8001 | -268.0 | -185.5 | |
| 1.54 | -7.00 | 1.29 | -7.00 | -20.79 | 260.56 | -49.15 | 118.60 | 0.8077 | -883.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -21.97 | 260.01 | -49.70 | 119.75 | 0.8168 | -300.0 | -329.4 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -21.60 | 260.13 | -49.57 | 119.38 | 0.8144 | -633.0 | -563.2 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -19.55 | 260.94 | -48.77 | 117.31 | 0.7998 | 252.0 | 292.2 | |
| 9.71 | -7.00 | 8.21 | -7.00 | -21.07 | 260.18 | -49.53 | 118.78 | 0.8121 | -785.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -21.54 | 259.96 | -49.75 | 119.24 | 0.8157 | -225.0 | -320.2 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -22.16 | 259.45 | -50.25 | 119.75 | 0.8223 | -200.0 | -214.5 | |
| 2.81 | 5.18 | 2.42 | 4.45 | -21.69 | 259.63 | -50.07 | 119.28 | 0.8191 | -412.6 | -281.0 | |
| 0.00 | 2.45 | 0.00 | 2.10 | -21.25 | 259.69 | -50.02 | 118.80 | 0.8171 | -381.0 | -369.5 | |
| 0.00 | 3.99 | 0.00 | 3.48 | -21.71 | 259.00 | -50.71 | 119.06 | 0.8247 | 283.0 | 166.0 | |
| 0.00 | 2.09 | 0.00 | 1.81 | -21.05 | 259.01 | -50.70 | 118.30 | 0.8224 | 21.0 | 56.9 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -21.98 | 258.13 | -51.58 | 119.03 | 0.8330 | 438.0 | 418.9 | |
| 0.00 | 1.54 | 0.00 | 1.45 | -23.59 | 256.59 | -53.12 | 120.27 | 0.8508 | -649.0 | -563.4 | |
| 62.37 | 378.78 | 55.78 | 339.75 | -19.03 | 256.90 | -52.81 | 115.22 | 0.8346 | 983.6 | 227.9 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -20.65 | 255.83 | -53.88 | 116.71 | 0.8482 | -168.0 | -161.1 | |
| 2.72 | 4.27 | 2.65 | 4.15 | -20.92 | 254.15 | -55.56 | 116.47 | 0.8626 | 385.8 | 322.0 | |
| 0.00 | 0.64 | 0.00 | 0.63 | -21.30 | 253.75 | -55.95 | 116.77 | 0.8666 | -223.0 | -288.9 | |
| 0.00 | 1.18 | 0.00 | 1.11 | -17.77 | 254.34 | -55.36 | 112.99 | 0.8532 | -213.0 | -252.2 | |
| 0.00 | 2.18 | 0.00 | 2.12 | -18.90 | 253.61 | -56.10 | 114.06 | 0.8619 | -170.0 | -270.1 | |
| 0.00 | 1.91 | 0.00 | 1.87 | -18.47 | 253.01 | -56.69 | 113.40 | 0.8657 | -463.0 | -332.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
