SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.90 | 0.00 | 10.18 | 6.60 | 267.16 | -41.99 | 83.38 | 0.6534 | -147.1 | -116.3 | |
|
previous
or next observation for the same group /

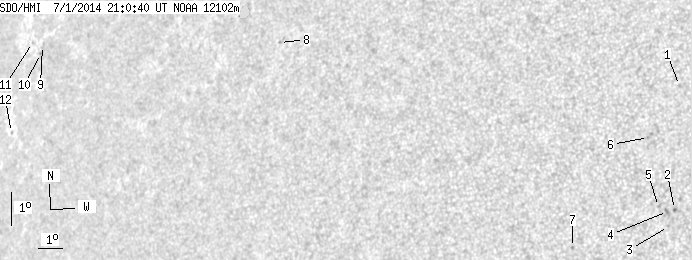

back to the solar disc SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.84 | 8.53 | 278.93 | -30.22 | 78.15 | 0.5106 | -680.0 | -539.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 4.74 | 279.01 | -30.14 | 85.61 | 0.5039 | -890.0 | -787.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 4.22 | 278.82 | -30.33 | 86.66 | 0.5065 | -773.0 | -605.7 | |
| 0.00 | 3.09 | 0.00 | 1.77 | 4.68 | 278.76 | -30.39 | 85.76 | 0.5076 | -906.0 | -676.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 4.82 | 278.44 | -30.72 | 85.50 | 0.5126 | -722.0 | -616.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 6.92 | 277.95 | -31.20 | 81.51 | 0.5220 | -513.0 | -479.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 3.49 | 275.38 | -33.77 | 88.11 | 0.5572 | 763.0 | 608.6 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 9.37 | 263.04 | -46.11 | 79.82 | 0.7247 | 536.0 | 497.9 | |
| 0.00 | 1.27 | 0.00 | 1.19 | 8.82 | 251.17 | -57.98 | 81.43 | 0.8494 | 407.0 | 484.1 | |
| 0.00 | 0.82 | 0.00 | 0.76 | 8.57 | 251.12 | -58.04 | 81.72 | 0.8498 | 423.0 | 419.9 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 8.89 | 250.56 | -58.59 | 81.37 | 0.8549 | 375.0 | 353.1 | |
| 0.00 | 1.18 | 0.00 | 1.14 | 6.09 | 249.91 | -59.24 | 84.65 | 0.8602 | 215.0 | 235.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
