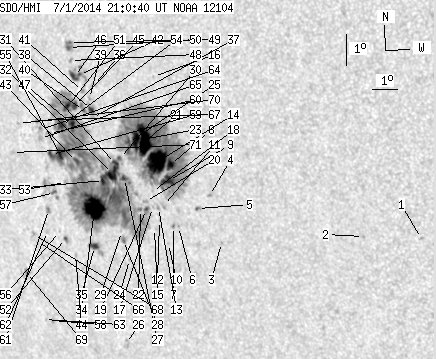

SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.36 | 1162.08 | 142.30 | 791.72 | -10.74 | 267.78 | -41.38 | 109.03 | 0.6891 | 420.2 | 199.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.65 | -12.69 | 279.45 | -29.70 | 118.52 | 0.5522 | 804.0 | 661.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -12.68 | 277.34 | -31.81 | 116.96 | 0.5791 | 714.0 | 558.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -13.03 | 271.89 | -37.27 | 114.17 | 0.6489 | 730.0 | 613.0 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -11.55 | 271.66 | -37.49 | 111.90 | 0.6449 | 850.0 | 712.1 | |
| 0.54 | 2.36 | 0.36 | 1.54 | -11.98 | 271.12 | -38.03 | 112.26 | 0.6535 | 754.8 | 638.3 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -12.57 | 270.26 | -38.90 | 112.69 | 0.6666 | 753.0 | 578.4 | |
| 0.36 | 1.18 | 0.24 | 0.78 | -12.58 | 270.05 | -39.10 | 112.60 | 0.6690 | 700.8 | 594.1 | |
| 6.08 | 408.30 | 3.99 | 269.97 | -10.62 | 270.26 | -38.89 | 109.89 | 0.6585 | 1322.7 | 490.9 | |
| 10.17 | -8.00 | 6.71 | -8.00 | -11.13 | 270.10 | -39.05 | 110.55 | 0.6624 | 978.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -13.13 | 269.75 | -39.41 | 113.23 | 0.6750 | 292.0 | 250.8 | |
| 0.00 | 3.09 | 0.00 | 2.05 | -11.92 | 269.77 | -39.39 | 111.54 | 0.6697 | 367.0 | 469.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -12.41 | 269.52 | -39.63 | 112.11 | 0.6747 | 507.0 | 408.6 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -11.99 | 269.55 | -39.60 | 111.54 | 0.6726 | 542.0 | 535.1 | |
| 34.14 | -8.00 | 22.58 | -8.00 | -10.54 | 269.75 | -39.40 | 109.55 | 0.6645 | 1204.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -12.67 | 269.27 | -39.89 | 112.36 | 0.6788 | 299.0 | 402.8 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -7.89 | 269.95 | -39.20 | 105.74 | 0.6527 | -484.0 | -444.8 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -12.00 | 269.31 | -39.85 | 111.44 | 0.6756 | 588.0 | 517.8 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -11.50 | 269.40 | -39.76 | 110.76 | 0.6725 | 398.0 | 329.4 | |
| 1.27 | 617.58 | 0.86 | 426.95 | -12.07 | 269.05 | -40.10 | 111.43 | 0.6790 | 783.5 | 48.2 | |
| 0.00 | 2.18 | 0.00 | 1.46 | -11.82 | 269.05 | -40.10 | 111.07 | 0.6779 | 781.0 | 638.8 | |
| 24.06 | -8.00 | 15.96 | -8.00 | -9.93 | 269.32 | -39.83 | 108.49 | 0.6675 | 1279.0 | 999999 | |
| 0.82 | -19.00 | 0.55 | -19.00 | -12.08 | 268.80 | -40.35 | 111.33 | 0.6819 | 442.0 | 999999 | |
| 8.53 | -8.00 | 5.69 | -8.00 | -9.91 | 269.00 | -40.15 | 108.33 | 0.6714 | 807.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -13.69 | 268.02 | -41.13 | 113.19 | 0.6975 | -341.0 | -416.8 | |
| 5.18 | -8.00 | 3.47 | -8.00 | -9.99 | 268.66 | -40.49 | 108.30 | 0.6758 | 565.1 | 999999 | |
| 0.00 | 4.36 | 0.00 | 3.09 | -16.40 | 267.24 | -41.91 | 116.43 | 0.7179 | 664.0 | 419.2 | |
| 3.09 | -19.00 | 2.09 | -19.00 | -11.12 | 268.32 | -40.84 | 109.78 | 0.6841 | 773.6 | 999999 | |
| 0.91 | 3.90 | 0.62 | 2.69 | -13.09 | 267.90 | -41.25 | 112.32 | 0.6965 | -482.3 | -291.2 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -12.81 | 267.88 | -41.28 | 111.92 | 0.6957 | -18.0 | -3.5 | |
| 1.36 | -19.00 | 0.92 | -19.00 | -10.50 | 268.21 | -40.94 | 108.86 | 0.6831 | 571.8 | 999999 | |
| 2.81 | -19.00 | 1.91 | -19.00 | -10.66 | 268.02 | -41.13 | 109.01 | 0.6860 | 714.3 | 999999 | |
| 12.71 | -19.00 | 8.67 | -19.00 | -10.98 | 267.84 | -41.31 | 109.39 | 0.6893 | 193.8 | 999999 | |
| 5.81 | -19.00 | 3.99 | -19.00 | -11.22 | 267.43 | -41.72 | 109.54 | 0.6950 | 336.2 | 999999 | |
| 33.96 | -19.00 | 23.64 | -19.00 | -12.12 | 266.88 | -42.27 | 110.56 | 0.7047 | -1124.0 | 999999 | |
| 4.63 | 10.90 | 3.26 | 7.66 | -13.33 | 266.63 | -42.52 | 112.09 | 0.7121 | -895.2 | -633.7 | |
| 0.00 | 2.72 | 0.00 | 1.85 | -8.25 | 267.47 | -41.68 | 105.39 | 0.6848 | 793.0 | 577.6 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -9.25 | 267.29 | -41.86 | 106.75 | 0.6901 | 721.0 | 620.9 | |
| 3.00 | 4.63 | 2.04 | 3.16 | -9.00 | 267.29 | -41.86 | 106.40 | 0.6894 | 899.6 | 637.5 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -8.66 | 267.25 | -41.90 | 105.90 | 0.6888 | 667.0 | 621.0 | |
| 0.82 | 4.81 | 0.56 | 3.30 | -9.05 | 266.95 | -42.20 | 106.34 | 0.6936 | 720.7 | 585.2 | |
| 0.00 | 2.18 | 0.00 | 1.49 | -8.45 | 266.99 | -42.16 | 105.52 | 0.6913 | 574.0 | 381.6 | |
| 1.36 | 16.62 | 0.93 | 11.36 | -7.93 | 266.93 | -42.22 | 104.76 | 0.6905 | 904.7 | 616.2 | |
| 3.36 | -19.00 | 2.34 | -19.00 | -10.66 | 266.39 | -42.76 | 108.37 | 0.7054 | 242.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -13.61 | 265.75 | -43.41 | 112.10 | 0.7231 | -436.0 | -446.3 | |
| 3.36 | -19.00 | 2.32 | -19.00 | -8.90 | 266.59 | -42.56 | 106.02 | 0.6975 | 650.4 | 999999 | |
| 4.81 | -42.00 | 3.30 | -42.00 | -8.00 | 266.72 | -42.44 | 104.79 | 0.6934 | 738.5 | 999999 | |
| 9.08 | -19.00 | 6.29 | -19.00 | -9.50 | 266.42 | -42.74 | 106.79 | 0.7014 | 1050.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.18 | -7.51 | 266.61 | -42.54 | 104.06 | 0.6933 | 470.0 | 511.5 | |
| 0.91 | 7.45 | 0.62 | 5.09 | -6.95 | 266.64 | -42.52 | 103.27 | 0.6915 | -254.0 | 189.1 | |
| 1.73 | -49.00 | 1.18 | -49.00 | -7.10 | 266.58 | -42.58 | 103.48 | 0.6927 | 508.9 | 999999 | |
| 4.99 | -19.00 | 3.46 | -19.00 | -8.94 | 266.29 | -42.86 | 105.97 | 0.7012 | 742.9 | 999999 | |
| 1.18 | 2.72 | 0.85 | 1.95 | -13.11 | 265.43 | -43.73 | 111.31 | 0.7249 | -500.5 | -401.1 | |
| 0.00 | 2.63 | 0.00 | 1.86 | -11.34 | 265.80 | -43.35 | 109.08 | 0.7145 | -189.0 | -166.5 | |
| 8.26 | -19.00 | 5.77 | -19.00 | -9.55 | 265.94 | -43.21 | 106.69 | 0.7072 | 817.0 | 999999 | |
| 4.27 | -19.00 | 3.00 | -19.00 | -10.46 | 265.75 | -43.41 | 107.87 | 0.7123 | 690.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -12.90 | 265.21 | -43.94 | 110.95 | 0.7265 | -349.0 | -378.1 | |
| 1.18 | 17.98 | 0.84 | 12.86 | -11.67 | 265.26 | -43.89 | 109.33 | 0.7218 | -665.2 | -232.8 | |
| 0.00 | 1.82 | 0.00 | 1.35 | -15.77 | 264.17 | -44.98 | 114.24 | 0.7483 | -647.0 | -461.9 | |
| 3.72 | -19.00 | 2.64 | -19.00 | -10.47 | 265.36 | -43.80 | 107.75 | 0.7169 | -7.8 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.05 | -9.82 | 265.38 | -43.77 | 106.87 | 0.7145 | 658.0 | 504.4 | |
| 0.54 | 3.00 | 0.39 | 2.16 | -12.22 | 264.88 | -44.27 | 109.92 | 0.7279 | -506.3 | -488.9 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -12.92 | 264.68 | -44.47 | 110.77 | 0.7325 | -220.0 | -293.8 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -15.75 | 263.82 | -45.33 | 114.07 | 0.7520 | -437.0 | -363.6 | |
| 0.00 | 2.36 | 0.00 | 1.68 | -9.71 | 265.02 | -44.14 | 106.60 | 0.7185 | 676.0 | 539.8 | |
| 0.00 | 2.81 | 0.00 | 2.00 | -9.99 | 264.97 | -44.19 | 106.96 | 0.7199 | 200.0 | 197.4 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -13.26 | 264.16 | -44.99 | 111.01 | 0.7394 | -238.0 | -337.8 | |
| 0.36 | 1.36 | 0.26 | 0.97 | -9.43 | 264.89 | -44.26 | 106.18 | 0.7192 | 594.0 | 570.4 | |
| 0.00 | 2.54 | 0.00 | 1.87 | -13.04 | 264.04 | -45.12 | 110.68 | 0.7401 | -576.0 | -429.0 | |
| 0.00 | 3.54 | 0.00 | 2.65 | -14.27 | 263.41 | -45.74 | 112.02 | 0.7510 | -722.0 | -589.6 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -9.55 | 264.08 | -45.07 | 106.09 | 0.7289 | -276.0 | -310.4 | |
| 0.00 | 2.63 | 0.00 | 1.92 | -10.47 | 263.65 | -45.50 | 107.18 | 0.7364 | -105.0 | -124.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
