SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.40 | 653.18 | 91.77 | 563.16 | -19.91 | 258.38 | -50.77 | 117.02 | 0.8193 | 404.9 | 71.6 | |
|
previous
or next observation for the same group /

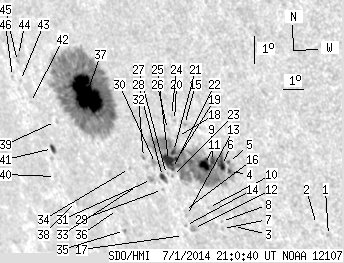

back to the solar disc SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.51 | -23.34 | 266.79 | -42.36 | 124.83 | 0.7560 | 549.0 | 389.3 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -22.99 | 266.39 | -42.76 | 124.19 | 0.7579 | 464.0 | 403.7 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -23.20 | 262.41 | -46.74 | 122.46 | 0.7955 | -462.0 | -343.8 | |
| 1.27 | 212.09 | 1.01 | 173.13 | -21.33 | 263.03 | -46.12 | 120.56 | 0.7819 | 838.9 | -166.2 | |
| 0.64 | -4.00 | 0.50 | -4.00 | -21.03 | 263.11 | -46.05 | 120.23 | 0.7800 | 733.7 | 999999 | |
| 4.45 | -4.00 | 3.53 | -4.00 | -21.14 | 262.78 | -46.38 | 120.22 | 0.7835 | 792.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -23.29 | 261.83 | -47.32 | 122.29 | 0.8010 | -368.0 | -379.7 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -23.05 | 261.89 | -47.26 | 122.05 | 0.7995 | -312.0 | -297.5 | |
| 3.81 | -4.00 | 3.05 | -4.00 | -21.03 | 262.35 | -46.81 | 119.88 | 0.7871 | 730.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -22.60 | 261.46 | -47.69 | 121.33 | 0.8015 | -133.0 | -190.4 | |
| 8.08 | -4.00 | 6.52 | -4.00 | -21.14 | 261.91 | -47.24 | 119.83 | 0.7916 | 678.9 | 999999 | |
| 0.00 | 4.45 | 0.00 | 3.78 | -23.35 | 260.35 | -48.80 | 121.71 | 0.8142 | -699.0 | -477.7 | |
| 0.00 | 1.27 | 0.00 | 1.08 | -22.92 | 260.21 | -48.94 | 121.16 | 0.8137 | -162.0 | -250.9 | |
| 0.00 | 0.91 | 0.00 | 0.78 | -23.26 | 259.99 | -49.16 | 121.46 | 0.8169 | -387.0 | -387.2 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -19.84 | 261.48 | -47.67 | 118.10 | 0.7906 | 463.0 | 321.3 | |
| 0.00 | 0.64 | 0.00 | 0.54 | -22.75 | 260.19 | -48.96 | 120.96 | 0.8132 | -303.0 | -387.0 | |
| 0.00 | 0.73 | 0.00 | 0.63 | -23.61 | 259.71 | -49.44 | 121.74 | 0.8207 | -582.0 | -428.4 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -20.25 | 260.97 | -48.18 | 118.38 | 0.7969 | -404.0 | -442.8 | |
| 1.63 | -4.00 | 1.35 | -4.00 | -21.03 | 260.59 | -48.56 | 119.13 | 0.8033 | -968.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -19.72 | 261.04 | -48.11 | 117.78 | 0.7943 | 111.0 | 68.7 | |
| 2.36 | -4.00 | 1.95 | -4.00 | -20.77 | 260.56 | -48.59 | 118.81 | 0.8026 | -831.8 | 999999 | |
| 1.45 | -4.00 | 1.21 | -4.00 | -21.34 | 260.25 | -48.90 | 119.36 | 0.8075 | -742.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -21.61 | 260.13 | -49.02 | 119.62 | 0.8096 | -639.0 | -602.9 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.56 | 260.96 | -48.19 | 117.56 | 0.7944 | 337.0 | 320.0 | |
| 11.62 | -4.00 | 9.71 | -4.00 | -21.08 | 260.17 | -48.98 | 119.02 | 0.8073 | -794.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -20.04 | 260.57 | -48.58 | 117.96 | 0.7998 | -410.0 | -367.7 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -21.56 | 259.85 | -49.30 | 119.44 | 0.8119 | -524.0 | -356.6 | |
| 2.54 | 5.63 | 2.16 | 4.78 | -21.63 | 259.61 | -49.54 | 119.43 | 0.8142 | -424.2 | -284.1 | |
| 0.00 | 0.73 | 0.00 | 0.62 | -22.08 | 259.40 | -49.75 | 119.86 | 0.8177 | -345.0 | -292.2 | |
| 0.00 | 7.72 | 0.00 | 6.55 | -21.21 | 259.46 | -49.70 | 118.88 | 0.8141 | -21.0 | -122.0 | |
| 0.00 | 4.99 | 0.00 | 4.30 | -21.76 | 258.99 | -50.16 | 119.33 | 0.8201 | 332.0 | 206.6 | |
| 0.00 | 1.45 | 0.00 | 1.25 | -21.03 | 258.93 | -50.23 | 118.47 | 0.8182 | 33.0 | 94.7 | |
| 0.00 | 1.27 | 0.00 | 1.12 | -21.99 | 258.15 | -51.00 | 119.27 | 0.8282 | 572.0 | 465.4 | |
| 0.00 | 0.73 | 0.00 | 0.64 | -21.43 | 258.01 | -51.14 | 118.58 | 0.8276 | 487.0 | 493.8 | |
| 0.36 | 1.63 | 0.34 | 1.51 | -23.57 | 256.60 | -52.55 | 120.46 | 0.8462 | -536.2 | -494.6 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -22.86 | 256.62 | -52.54 | 119.67 | 0.8438 | 155.0 | 172.3 | |
| 65.28 | 378.79 | 57.65 | 335.60 | -19.04 | 256.87 | -52.28 | 115.42 | 0.8300 | 986.4 | 232.3 | |
| 0.00 | 2.91 | 0.00 | 2.81 | -22.69 | 254.42 | -54.74 | 118.70 | 0.8609 | -183.0 | -196.6 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -20.02 | 254.71 | -54.44 | 115.82 | 0.8512 | 337.0 | 193.3 | |
| 0.00 | 0.82 | 0.00 | 0.80 | -21.88 | 253.68 | -55.47 | 117.57 | 0.8644 | -423.0 | -366.9 | |
| 2.91 | 4.72 | 2.79 | 4.54 | -20.94 | 254.05 | -55.11 | 116.64 | 0.8590 | 367.1 | 274.6 | |
| 0.00 | 1.36 | 0.00 | 1.31 | -19.44 | 253.59 | -55.57 | 114.82 | 0.8589 | -555.0 | -441.6 | |
| 0.00 | 1.18 | 0.00 | 1.13 | -18.73 | 253.38 | -55.78 | 113.96 | 0.8589 | -520.0 | -482.1 | |
| 0.00 | 1.18 | 0.00 | 1.12 | -17.90 | 253.67 | -55.49 | 113.11 | 0.8545 | -59.0 | -93.5 | |
| 0.00 | 1.36 | 0.00 | 1.30 | -18.11 | 253.51 | -55.64 | 113.29 | 0.8563 | -477.0 | -389.9 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -18.62 | 252.97 | -56.18 | 113.71 | 0.8620 | -325.0 | -288.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
