SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.33 | 82.53 | 49.17 | 126.64 | -8.05 | 238.75 | -70.40 | 99.55 | 0.9468 | 88.9 | -29.1 | |
|
previous
or next observation for the same group /

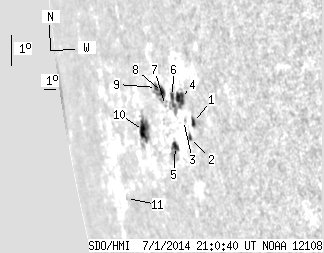

back to the solar disc SDO HMI 2014-07-01 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 4.36 | 2.70 | 5.90 | -8.10 | 241.35 | -67.80 | 99.89 | 0.9320 | 394.4 | 413.3 | |
| 1.27 | 3.00 | 1.76 | 4.14 | -8.58 | 240.92 | -68.23 | 100.36 | 0.9350 | 247.9 | 294.2 | |
| 0.00 | 0.36 | 0.00 | 0.51 | -8.08 | 240.52 | -68.64 | 99.77 | 0.9371 | 454.0 | 430.0 | |
| 8.08 | 23.61 | 11.33 | 33.63 | -7.40 | 240.50 | -68.65 | 99.04 | 0.9368 | 553.3 | 139.8 | |
| 4.36 | 11.71 | 6.46 | 17.47 | -8.93 | 239.47 | -69.68 | 100.56 | 0.9438 | 311.9 | -16.5 | |
| 1.73 | -4.00 | 2.49 | -4.00 | -7.37 | 239.82 | -69.34 | 98.94 | 0.9408 | 246.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.36 | -7.68 | 239.07 | -70.08 | 99.19 | 0.9453 | -478.0 | -421.4 | |
| 4.36 | 15.07 | 6.58 | 23.02 | -7.28 | 238.94 | -70.21 | 98.76 | 0.9458 | 273.8 | -97.1 | |
| 2.00 | -8.00 | 3.09 | -8.00 | -7.16 | 238.43 | -70.72 | 98.57 | 0.9485 | 55.2 | 999999 | |
| 8.53 | 23.06 | 14.76 | 39.62 | -8.58 | 236.53 | -72.62 | 99.87 | 0.9591 | -511.1 | -203.4 | |
| 0.00 | 0.45 | 0.00 | 0.99 | -10.87 | 233.11 | -76.04 | 101.88 | 0.9749 | -163.0 | -166.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
